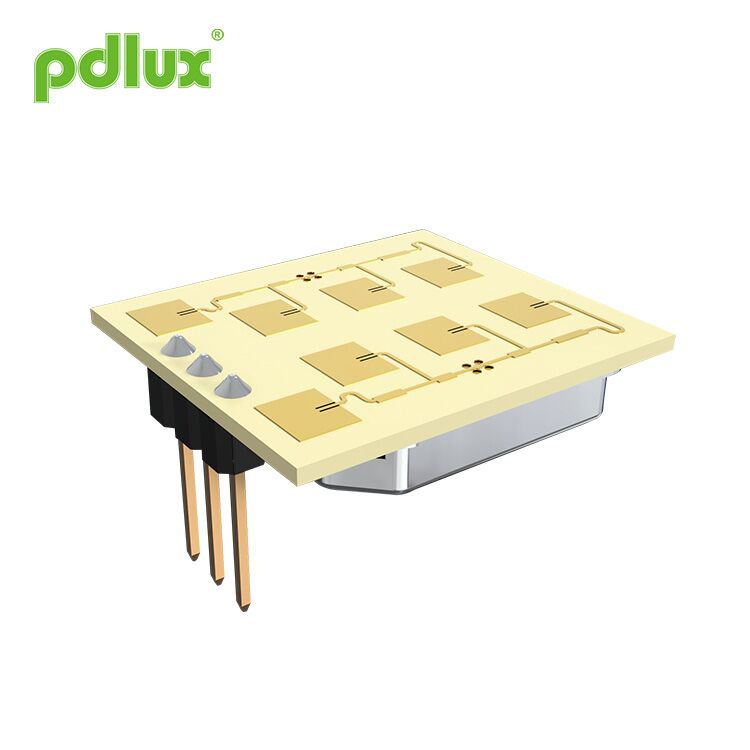

Model:PD-V18-A
Send Inquiry
Product Details
According with EN 300440-V2.1.1、EN 62479：2010
RED directive - 2014/53/EU
According with FCC Part 15.249
According with EN 62321,ROHS directive - 2011/65/EU
According with REACH directive - 1907/2006/EC
Application
Contactless hand
wave sensor
Intruder detect
Narrow angle high
performance
|
Antenna Beam Pattern |
Products size |
|
|
|
|
Parameter |
Notes |
Min |
Typ |
Max |
Units |
|
Supply Voltage |
Vcc |
3.0 |
5.0 |
5.25 |
V |
|
Current Consumption |
Icc |
≈20 |
<30 |
<35 |
mA |
|
Operation Mode |
Powered by PWM, it can control the working current at 3-15mA |
||||
|
Pulse Width |
Tpulse |
-30~+65 |
℃ |
||
|
Storage Temperature |
Tstg |
-10 |
+60 |
℃ |
|
|
Stable Time |
|
<5 |
μSec |
||
|
Noise |
|
3.5 |
4.0 |
4.5 |
mVrms |
|
Frequency |
Setting |
f |
24.000 |
24.125 |
24.250 |
|
Radiated Power (EIRP) |
Pout |
<2.0 |
<2.5 |
<3.0 |
mW |
|
Storage Ambient Humidity |
45%~65% |
RH |
|||
WARNING: The actual detection range is related to the signal amplification gain of the circuit, the overall layout of the PCBA and the threshold of the MCU.
Note1: The radiated emissions is designed to meet FCC and CE rules.
Note2: The Received Signal Strength(RSS) is measured at the total 1 Ways path loss of 70dB.
Note3: The noise voltages are measured from 10Hz to 100Hz at the Output port, inside an Anechoic chamber.
Note4: Pulse operation is recommended
