Microwave Sensor Module Series
Microwave Sensor Module Series (also known as radar, RF, or Doppler sensors) can detect walking, running, or crawling human targets in outdoor environments.PDLUX has developed flexible, reliable microwave links and transceivers for protecting open areas, gates or entrances as well as roof or wall applications.
Microwave Sensor Module Series creates an electromagnetic (RF) field between the transmitter and receiver, thus creating an invisible volume detection area.When an intruder enters the detection area, changes to this field are logged and an alert occurs.
Microwave Sensor Module Series are easy to install, have high detection probability, low noise alarm, and provide protection against rain, fog, wind, dust, snow and extreme temperatures.Most sensors operate in the K-band, which maximizes detection performance and minimizes interference from external radar sources.
PDLUX PD-V18-M1 Millimeter Wave Sensor
The PDLUX PD-V18-M1 Millimeter Wave Sensor is an application module consisting of a super millimeter wave sensor and an amplification circuit + MCU designed for non-contact control. It can also be called a controller module for close-range wave sensing. Its application scenarios are very extensive, you can control the electrical work or turn off with a wave of your hand at different angles of 10-30cm, and you can even generate different productions with the number of swings. For example: one swing to open the electric door; two swings to open the lighting system. Especially after the baptism of the epidemic, people have a heartfelt resistance to the public contact switch. It is for this reason that we have developed a wave sensor system, which can also be applied to similar electrical and electronic products, so you can have more room for imagination.
Read More›
PDLUX PD-V10-G5 Miniature X-Band Microwave Transceiver
The PDLUX PD-V10-G5 miniature X-Band microwave transceiver is a miniature X-Band microwave transceiver that utilises the Doppler shift phenomenon to "sense" motion. The unit, housed in a metal can, features a dielectric resonator stabilised oscillator, which provides stable operation over a broad temperature range in either CW or low duty cycle pulse mode and an integrated homodyne receiver for enhanced sensitivity and reliability. This module family is available with either a +5v or +3v supply voltage.
Read More›
PDLUX PD-V11 Automatic Door 24GHz Microwave Sensor Module
PDLUX PD-V11 Automatic Door 24GHz Microwave Sensor Module is K-band doppler transceiver module. Automatic Door 24GHz Microwave Sensor Module is a flat antenna of our own design develop a layout with well-matched transmissions and receptions.
Read More›
PDLUX PD-V8-S 360° 5.8GHz Mobile Detection Microwave Sensor Module
PDLUX PD-V8-S 360° 5.8GHz Mobile Detection Microwave Sensor Module is a C-Band Bi-Static Doppler transceiver module. It's built-in Resonator Oscillator (CRO).This module,V8-S adopts flat Plane Antenna, suitable for wall mounting. 360° 5.8GHz Mobile Detection Microwave Sensor Module can improve its front signal receiving ability and reduce its flank blind area. Its performance is better than the sensors in the market.
Read More›
PD-V9-S X-Band Doppler Microwave Sensor Module with PIN Output
Compact and customizable, PD-V9-S X-Band Doppler Microwave Sensor Module with PIN Output is built for integration into your advanced sensing products. The PD-V9-S is a miniaturized X-band Doppler radar module with a PIN output, perfect for developers and system integrators. It supports regional frequency customization and features a dual-plane sensing structure—broad H-plane for wide coverage and focused E-plane for precise detection. The sensor operates efficiently in low-power PWM mode, making it suitable for battery-operated or embedded systems. Applications include smart lighting, speed sensing, access control, and IoT motion detection. Custom development and OEM/ODM services are available.
Read More›

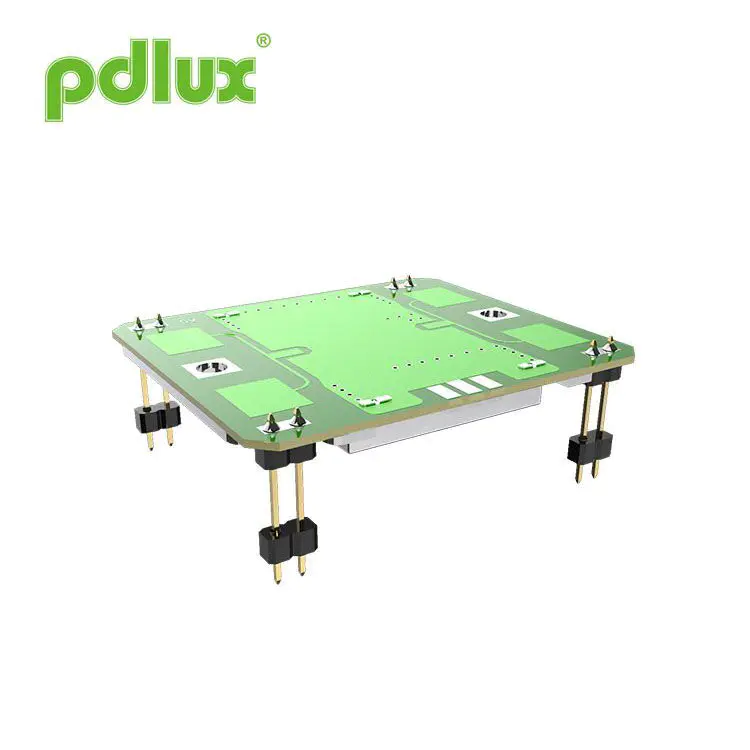

PD-V9-P X-Band Microwave Motion Sensor with High Accuracy
Precision, performance, and customization—PD-V9-P X-Band Microwave Motion Sensor with High Accuracy meets the demands of modern smart detection systems. The PD-V9-P is a high-sensitivity X-band motion sensor designed for accurate detection in a variety of environments. It supports frequency customization (10.525GHz, 10.587GHz, 10.687GHz) to comply with local regulations. With fast response and reliable motion tracking, it’s ideal for IoT devices, smart lighting, automated systems, and industrial motion sensing. Its flexible mounting design and PWM low-power mode make it suitable for energy-conscious applications. We offer full technical support and timely delivery to ensure your success.
Read More›
PD-V9-H X-Band Doppler Module with Wide Angle Detection
Looking for a reliable and energy-efficient radar motion sensor? PD-V9-H X-Band Doppler Module with Wide Angle Detection is your ideal choice. It is an X-band Doppler radar module operating between 10.525GHz and 10.687GHz. It features wide H-plane detection and narrow E-plane precision, making it well-suited for applications such as security monitoring, motion-sensing lights, automatic doors, and other mobile object detection systems. For low-power requirements, users can switch to PWM mode to effectively reduce working current. Backed by fast delivery and dependable after-sales support, it’s a trusted option for a wide range of smart sensing solutions.
Read More›

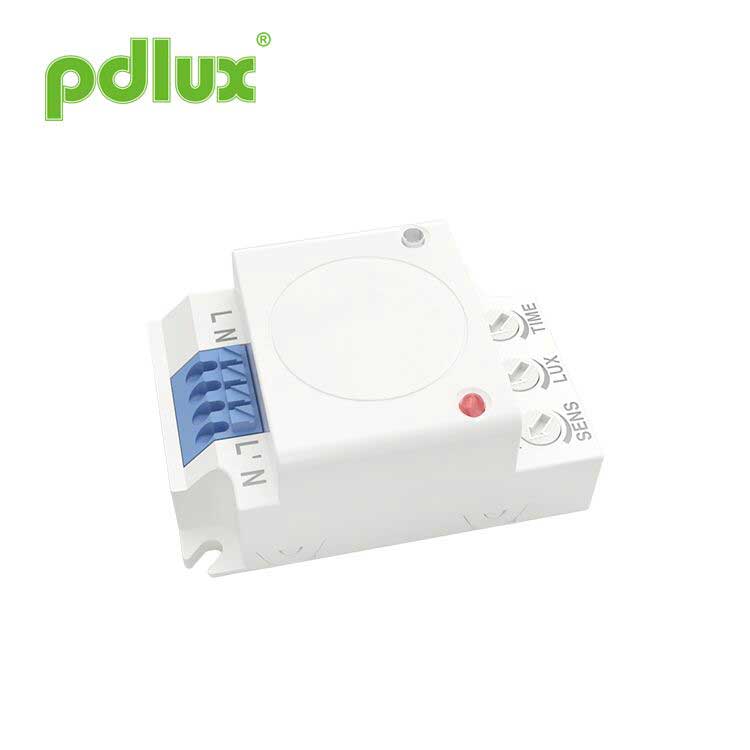

5.8GHz ISM band radar sensor
The 5.8GHz ISM band radar sensor PD-MV1029B represents a digital microwave sensor switch designed to operate with a comprehensive 360° detection coverage and a functional frequency of 5.8GHz. By harnessing the Doppler principle for signal transmission and reception, this device incorporates an MCU (microcontroller unit) within its control center. This MCU precisely computes the zero-crossing point of the sine wave within the power network, enabling the switch to operate precisely at this point. This advanced timing mechanism significantly enhances the device's shock resistance and drastically minimizes the likelihood of failures.
Read More›
