PDLUX PD-V11 Automatic Door 24GHz Microwave Sensor Module

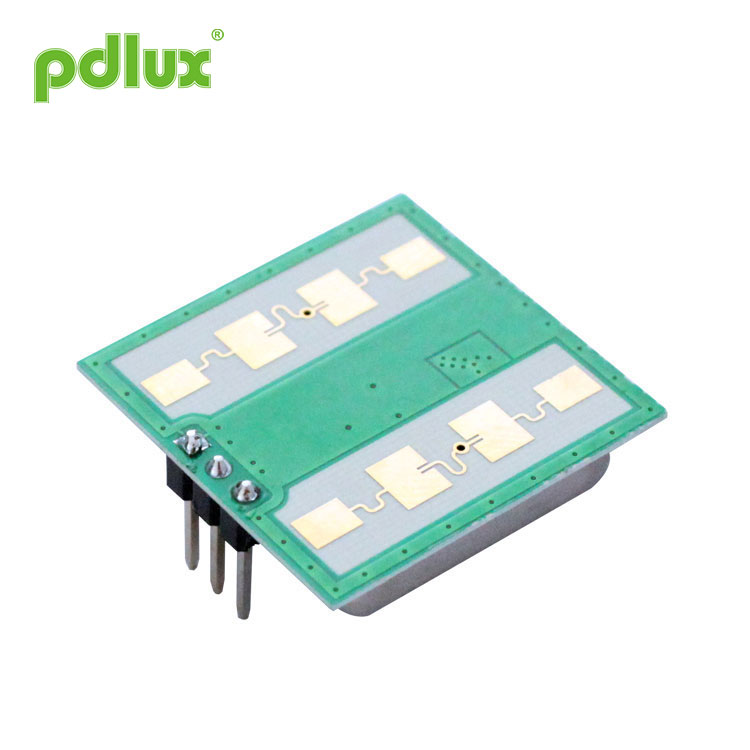

PDLUX PD-V11 Automatic Door 24GHz Microwave Sensor Module is K-band doppler transceiver module. Automatic Door 24GHz Microwave Sensor Module is a flat antenna of our own design develop a layout with well-matched transmissions and receptions.
Model:PD-V11
Send Inquiry
Product Details
PDLUX PD-V11 Automatic Door 24GHz Microwave Sensor Module
Application of PDLUX PD-V11 Automatic Door 24GHz Microwave Sensor Module • Intelligent switch • Wall-hung switch • Intruder detect
|
PDLUX PD-V11 Automatic Door 24GHz Microwave Sensor Module is K-band doppler transceiver module. Automatic Door 24GHz Microwave Sensor Module is a flat antenna of our own design develop a layout with well-matched transmissions and receptions. We recalculated and rearranged the internal layout to make it more meaningful. Make the main frequency of the sensor is more stable. These are our a's design patents a wider range of ambient temperatures. V11-H has lower noise, higher resolution and higher sensitivity. Built-in anti-static function. Compared with traditional similar products, the performance is more stable and reliable. V11-M and V11-L are different sensitivities that can be customized to the user's needs. This series of sensor modules is ideal for automatic lighting. Security domain behavior intrusion detection sensor.
According with EN 300440-V2.1.1 s EN 62479: 2010 RED directive-2014/53/EU According with FCC Part 15.249 According with EN 62321,ROHS directive-2011/65/EU According with REACH directive - 1907/2006/EC
|
Parameter | Notes | Min | Typ | Max | Units |
Supply Voltage | Vcc | 3 | 5 | 5.25 | V |
Current Consumption | Icc | 20 | 35 | 38 | mA |
Operation mode | Powered by PW, it can control the working current at 3-15mA | ||||
Pulse Repetition Frequency | 1月10日 | KHz | |||
Operating Temperature | Top | -30~+85 +100 (Max.) | °C | ||
Storage temperature | Tstg | -10 |
|
60 | °C |
Stable time |
|
<5 | μSec | ||
Frequency Setting | f | 24 | 24.125 | 24.25 | GHz |
Radiated Power (EIRP) | Pout | <2.0 | <2.5 | <3.0 | mW |
Pulse Width |
|
>3 |
|
|
μSec |
Storage ambient humidity | 45%~65% | RH |
Note1: The radiated emissions is designed to meet FCC rules.
Note2:The Received Signal Strength(RSS) is measured at the total 1 Ways path loss of 70dB.
Note3: The noise voltages are measured from 10Hz to 100Hz at the Output port, inside an Anechoic chamber.
Note4:Pulse operation
