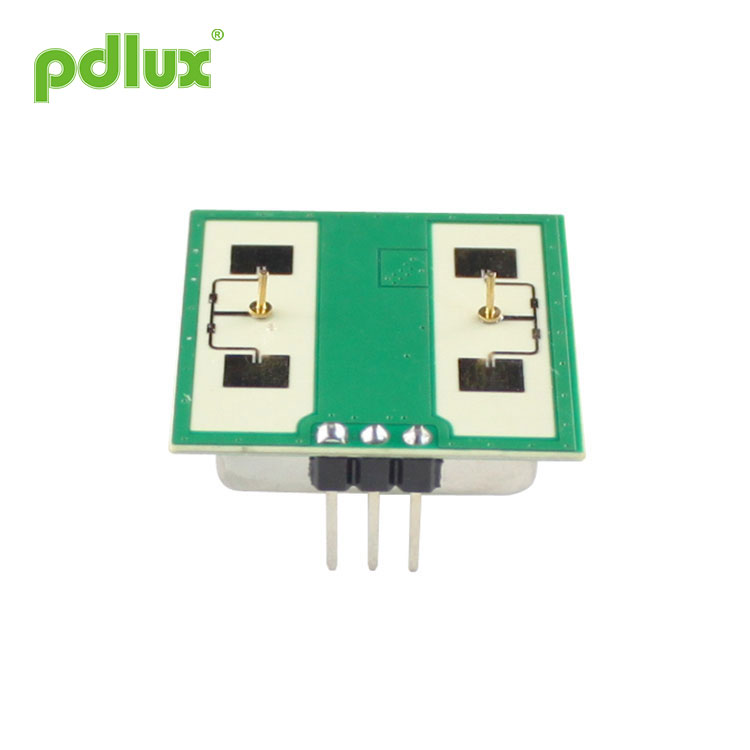

  • PDLUX PD-V21360 Security Mobile Detection 24GHz Microwave Sensor Module - 0 PDLUX PD-V21360 Security Mobile Detection 24GHz Microwave Sensor Module - 0

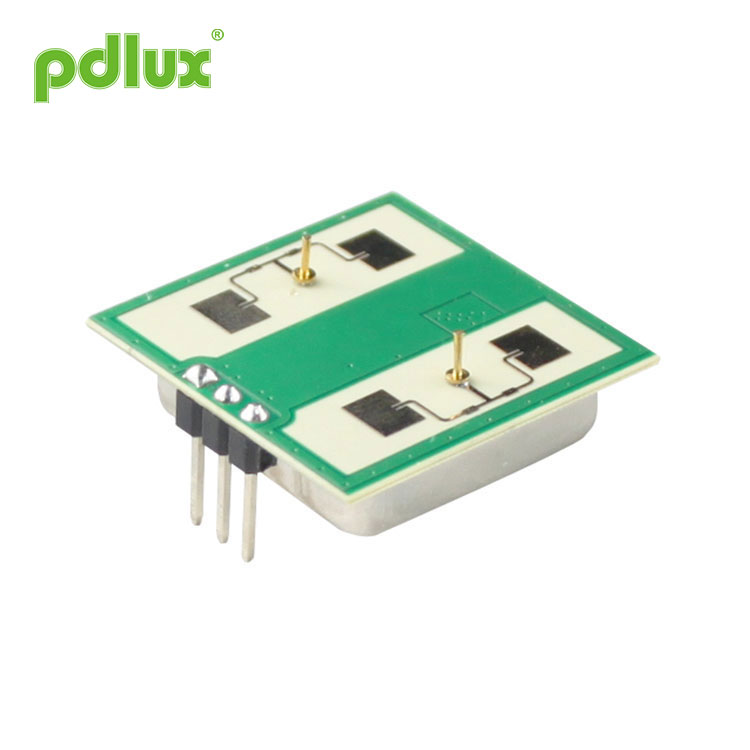

  • PDLUX PD-V21360 Security Mobile Detection 24GHz Microwave Sensor Module - 1 PDLUX PD-V21360 Security Mobile Detection 24GHz Microwave Sensor Module - 1

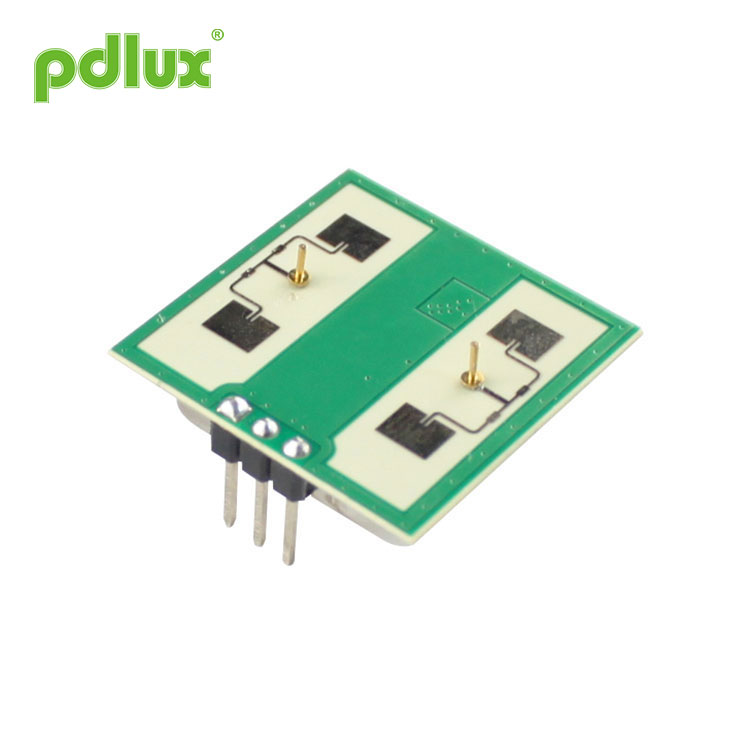

  • PDLUX PD-V21360 Security Mobile Detection 24GHz Microwave Sensor Module - 2 PDLUX PD-V21360 Security Mobile Detection 24GHz Microwave Sensor Module - 2

PDLUX PD-V21360 Security Mobile Detection 24GHz Microwave Sensor Module

PDLUX PD-V21360 Security Mobile Detection 24GHz Microwave Sensor Module is a K-Band Bi-Static Doppler transceiver modlue .Ifs built-in Resonator Oscillator (CRO).This module,V21360 adopts flat Plane Antenna, suitable for wall mounting. Security Mobile Detection 24GHz Microwave Sensor Module can improve its front signal receiving ability and reduce its flank blind area. Security Mobile Detection 24GHz Microwave Sensor Module’s performance is better than the sensors in the market.

Model:PDLUX PD-V21360

Send Inquiry

Product Description

PDLUX PD-V21360 Security Mobile Detection 24GHz Microwave Sensor Module




Application of Security Mobile Detection 24GHz Microwave Sensor Module

• Intelligent switch

• Wall-hung switch

• Intruder detect



PDLUX PD-V21360 Security Mobile Detection 24GHz Microwave Sensor Module is a K-Band Bi-Static Doppler transceiver modlue .Ifs built-in Resonator Oscillator (CRO).This module,V21360 adopts flat Plane Antenna, suitable for wall mounting. Security Mobile Detection 24GHz Microwave Sensor Module can improve its front signal receiving ability and reduce its flank blind area. Security Mobile Detection 24GHz Microwave Sensor Module’s performance is better than the sensors in the market.

This module is ideally suiable for occupancy sensor in automatic lighting switches.lt can also be used for ceiling mount intruder detectors.


According with EN 300440-V2.1.1 > EN 62479: 2010, RED directive-2014/53/EU

According with FCC Part 15.249

According with EN 62321,ROHS directive-2011/65/EU

According with REACH directive-1907/2006/EC



Parameter Notes Min Typ Max Units
Supply Voltage Vcc 3 5 5.25 V
Current Consumption Icc 20 35 38 mA
Operation Mode Powered by PWM, it can control the working current at 3-15mA
Pulse Width Tpulse 10 μs
Operating Temperature Top -30~+85 +100 (Max.) °C
Storage Temperature Tstg -10
60 °C
Stable Time
<5 μSec
Frequency Setting f 24 24.125 24.25 GHz
Radiated Power (EIRP) Pout <2.0 <2.5 <3.0 mW
Storage Ambient Humidity 45%~65% RH
