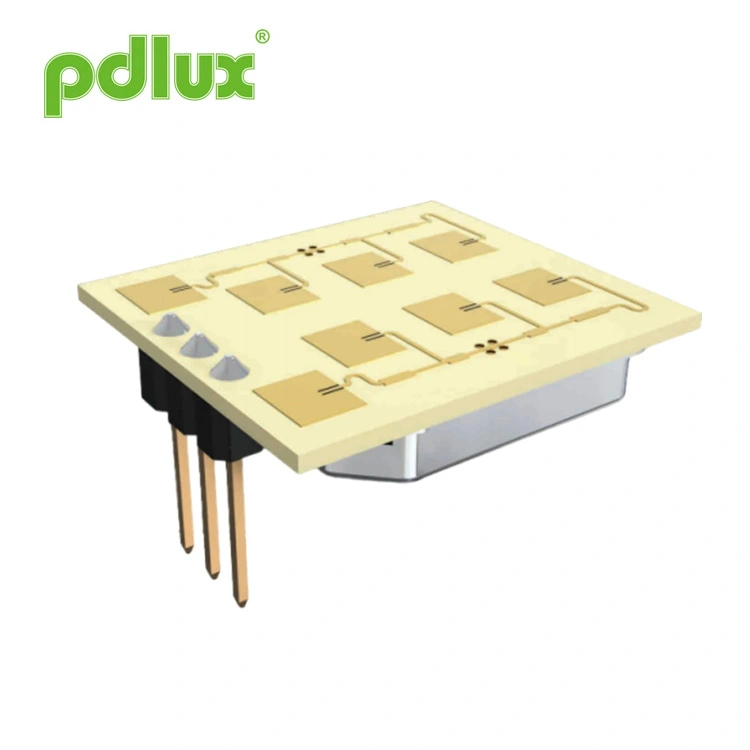

PD-V18-A 24.125GHz Microwave Motion Sensor

Application

Contactless hand wave sensor
Narrow angle high performance
Intruder detect

PD-V18-A is a K-band (24.125GHz) narrow-angle high-performance wave sensor. With the algorithm of the amplifier circuit and MCU, application products with different functions can be produced. For example: it is used for hand-waving non-contact induction automatic doors, hand-waving non-contact induction switches and other application products.

According with EN 300440-V2.1.1、EN 62479：2010
RED directive - 2014/53/EU
According with FCC Part 15.249
According with EN 62321,ROHS directive - 2011/65/EU
According with REACH directive - 1907/2006/EC

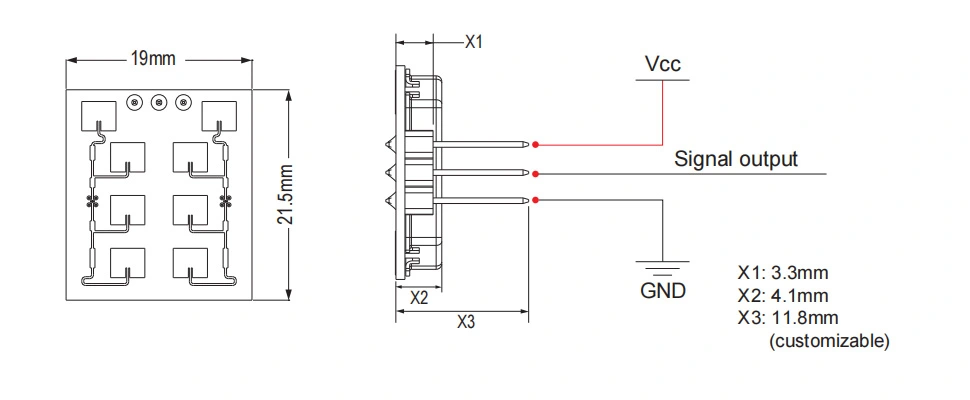

Products size

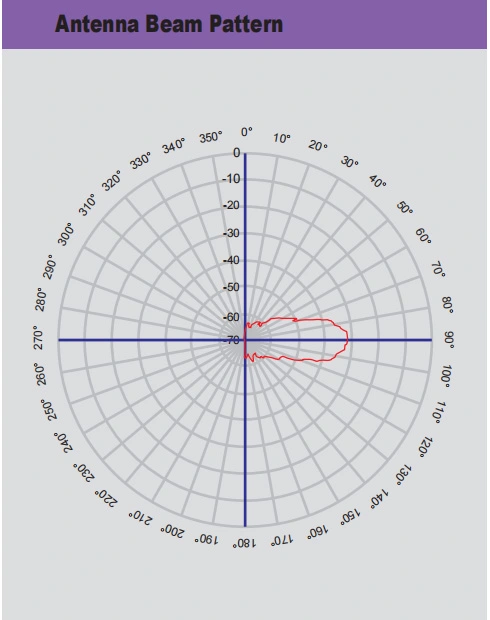

Technical Parameters

Parameter	Notes	Min	Typ	Max	Units
Supply Voltage	Vcc	3.0	5.0	5.25	V
Current Consumption	lcc	20	30	35	mA
Operation Mode	Powered by PWM,it can control the working current at 3-15mA
Pulse Width	Tpulse	10			μs
Operating Temperature	Top	-30~+65			℃
Storage Temperature	Tstg	-10		+60	℃
Stable Time		<5			μSec
Noise		3.5	4.5	4.5	mVrms
Frequency Setting	f	24.000	24.125	24.250	GHz
Radiated Power (EIRP)	Pout	<2.0	<2.5	<3.0	mW
Storage Ambient Humidity	45%~65%				RH

WARNING: The actual detection range is related to the signal amplification gain of the circuit, the overall layout of the PCBA and the threshold of the MCU.

Note1: The radiated emissions is designed to meet FCC and CE rules.
Note2: The Received Signal Strength(RSS) is measured at the total 1 Ways path loss of 70dB.
Note3: The noise voltages are measured from 10Hz to 100Hz at the Output port, inside an Anechoic chamber.
Note4: Pulse operation is recommended
