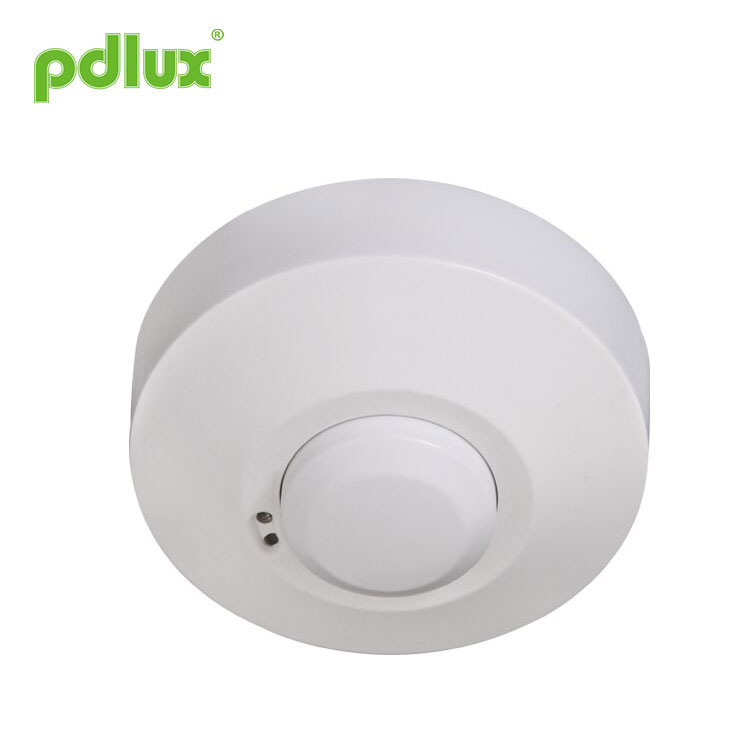

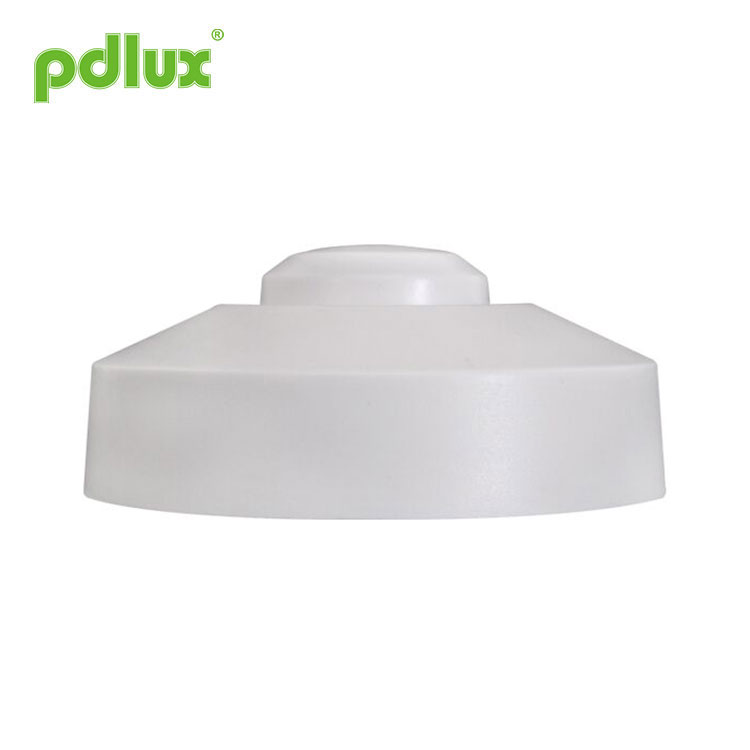

The Round Microwave Sensor Motion Detector is according to the microwave doppler effect , it can be widely used in as automatic control switch, the security system, and automatic video control system of ATM, as well as other automatic induction control area. The detection way has the below advantages compared with other as follows: 1. Non-contact detection, 2. Suitable for bad environment, immune to temperature, humidity, noise, air, dust, light…3.RF interference ability, 4.Transmission power only 0.2 mW, It will not harm the human body. Simple installation+ easy wiring. We use appropriative micro processing integrator, not only for high sensitivity and wide range of detection, and on very reliable work, error rate is extremely low, It can stable working on the temperature range: - 15 ~ + 70 Celsius degrees.

Model:PD-MV1012-Z

Send Inquiry

Product Details

You can rest assured to buy Round Microwave Sensor Motion Detector from our factory and we will offer you the best after-sale service and timely delivery. It uses the MCU to accurately calculate the switch information, and accurately controls the relay to be turned on at the zero point of the sine wave, so that each load is turned on. At the zero point of the sine wave, the inrush current problem caused by the conventional control mode when the sine wave high voltage is turned on is avoided, especially the large current damage relay generated by the large-capacity capacitor under the impact of the high voltage under the load.


Due to the diversification of current electrical loads, especially LED lamps, energy-saving lamps, and fluorescent lamps all have capacitors with different capacitances. This is a disaster for relays. Sometimes a 50W LED lamp can generate surge currents of 80 to 120A.


The 10A ordinary relay can only withstand 3 times of the inrush current, and it is likely that the relay will be broken in a few days or several times. This is why the conventional sensor on the market has a short life and a small load current.


In order to overcome this problem, this product adopts advanced digital precision calculation to turn on the load when the sine wave is at zero potential, thus solving the load surge current problem, greatly enhancing the load capacity and prolonging the service life of the product.


The latest control method of mass production sensor technology can easily control any load. It is a medium and high-end product. Although the cost is increased compared with the conventional version, the reliability and life of the product are greatly increased. This product is equal to choosing peace of mind, and choosing safety.


NOTE:

The high-frequency output of this sensor is <0.2mW- that is just one

5000 of the transmission power of a mobile phone or the output of a microwave oven.




Specifications

Power source:

220-240VAC 50/60Hz

Transmission power:

<0.2mW

Rated load:

1200W. any load

Installation sit:

indoors, ceiling mounting

Detection angle:

360°

Detection range(22℃):

1-8m(radii.) (adjustable)

Time setting:

8sec to 12min (adjustable)

Light-control:

2~2000LUX (adjustable)

Working temperature:

-15°C~+70°C

HF system:

5.8GHz CW Electric wave,ISM band



Sensor Information


Installation

1. Please keep it away from the children.
2. Please avoid fire/high temperature/damp places for installation.
3. Please confirm when shut off the power cord access.


1.Take down the top cover by turning it anti-clockwise(see fig.1), and then tighten off the two screws fixing middle cover(see fig.2);
2.Hold base against the Ceiling and mark drill holes(see fig.3),paying attention to any existing wiring in the Ceiling;
3.Drill the holes, insert wall plugs (6mm dia.)(see fig.4);
4.Put the power wire and load wire through the base holes(see fig.5);
5.Screw the base into place(see fig.6);
6.Connect the mains power supply and the load wire to the connection terminal according to connection-wire mark.
7.Close the middle cover(see fig.6) and adjust knob to setting;
8.Fit glass shade and turn it clockwise(see fig.6).

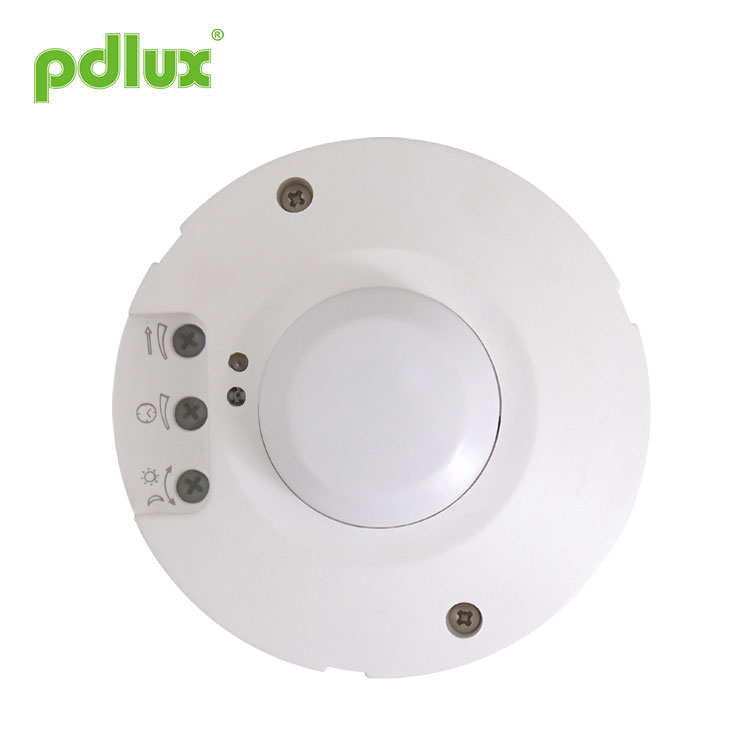

Control knob


Detection range setting (sensitivity)

Detection range is the term used to describe the radii of the more or less circular

detection zone produced on the ground after mounting the sensor light at a height

of 2.5m, turn the Detection control fully anticlockwise to select minimum detection

range (approx.1m radii), and fully clockwise to select maximum detection range

 (approx. 8m radii).

NOTE: the above detection range is gained in the case of a person who is between

1.6m~1.7m tall with middle figure and moves at a speed of 1.0~1.5m/sec. if person’s

stature, figure and moving speed change, the detection range will also change.


ATTENTION:When use this product, please adjust the sensitivity to an appropriate

position you need, please do not adjust the sensitivity to maximum, to avoid the

product does not work normally caused by wrong motion.Because the sensitivity

is too high easily detect the wrong motion by wind blowing leaves & curtains,

small animals, and the wrong motion by interference of power grid &electrical

equipment. All those lead the product does not work normally !


When the product does not work normally, please try to lower the sensitivity

appropriately, and then test it.

Time setting

The light can be set to stay ON for any period of time between approx. 8sec

(turn fully anticlockwise) and a maximum of 12min (turn fully clockwise).

Any movement detected before this time elapse will re-start the timer.

It is recommended to select the shortest time for adjusting the detection

zone and for performing the walk test.

NOTE: after the light switches OFF, it takes approx. 1sec before it is able

to start detecting movement again. The light will only switch on in

response to movement once this period has elapsed.

Light-control setting

The chosen light response threshold can be infinitely from approx. 2-2000lux.

Turn it fully anti-clockwise to select dusk- to-dawn operation at about 2 lux.

Turn it fully clockwise to select daylight operation at about 2000lux.

The knob must be turned fully clockwise when adjusting the detection

zone and performing the walk test in daylight.

Note: please don’t adjust the three functional buttons to excess. That is

because the three functional buttons were connected to the components

directly, there is a small stopper in each of the three components, when

you adjust the buttons from start to end, theexcessive turn will damage

the stopper,and lead to the 360°non-stop turn around. The adjust

range limit is 270°, please do pay attention to this.


Troubleshooting

Malfunction

Cause

Remedy

The load will not work

wrong light-control setting selected

Adjust setting

load faulty

Change load

mains switch OFF

Switch ON

The load work always

The load work always

Check zone setting

The load work without any identifiable movement



the sensor not mounted for detecting

movement reliably

Securely mount enclosure

movement occurred, but not identified

by the sensor(movement behind wall,

movement of a small object in immediate

lamp vicinity etc.)

Check zone setting

The load will not work despite

movement

rapid movements are being suppressed

to minimize malfunctioning the

zone you have set is too small

Check zone setting


Warning!

Please confirm with profession installation.
Please cut off power supply before installation and removal operations.
Make sure that you have cut off the power for safety purposes.
Improper operation caused losses, the manufacturer does not undertake any responsibility
