PDLUX PD-M330-K 24GHz mmWave Life Presence Detection Sensor
Use FMCW to detect people in a specified area. By combining radar signal processing with accurate human detection algorithm, high sensitivity human detection can be achieved, which can detect moving and stationary human targets. The biological presence (mainly the human body) with characteristics such as breathing and heartbeat in the detection range is detected, so that the human body can be sensed without body movements, including sleeping people.
Model:PD-M330-K
Send Inquiry
Product Details
Summary
Use FMCW to detect people in a specified area. By combining radar signal processing with accurate human detection algorithm, high sensitivity human detection can be achieved, which can detect moving and stationary human targets. The biological presence (mainly the human body) with characteristics such as breathing and heartbeat in the detection range is detected, so that the human body can be sensed without body movements, including sleeping people.

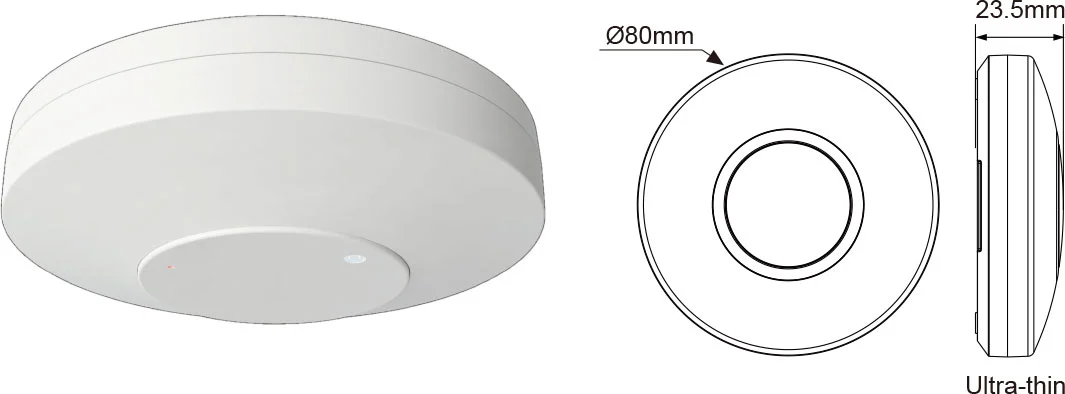

Specifications
| Operating frequency: | 24-24.2GHz |
| Rated load: | 800W (resistive)/300W (capacitive) |
| Rated voltage: | 100-240V AC, 50/60Hz |
| Output signal: | ON/OFF switch |
| Standby power consumption: | <0.4W |
| Installation height: | 2-3m |
| Detection radius: |
>3m (with a detection range radius of 1-3 meters) Move the detection radius to 3-6m. |
| Light control range: | 5-300LUX - daytime |
| Delay shutdown: |
5 seconds to 3 minutes (set the delay shutdown time as needed) Protection level IP20 |
Schematic diagram of detection area distribution
Function
Identify day and night automatically. Can adjust ambient light according to your desire: when turn to SUN (max), it will work in the daytime and at night.When turn to MOON (min), it will only work under less than 10LUX circumstance. As for Adjustment, please refer to testing way.
Time-delay is added continually: when it receives the second induction signal after the first inductor, it will compute time once more on the rest of the first time-delay basic. (Set time)
Delay adjustment: can be set as needed. The minimum value is 5 seconds, and the maximum value is 3 minutes

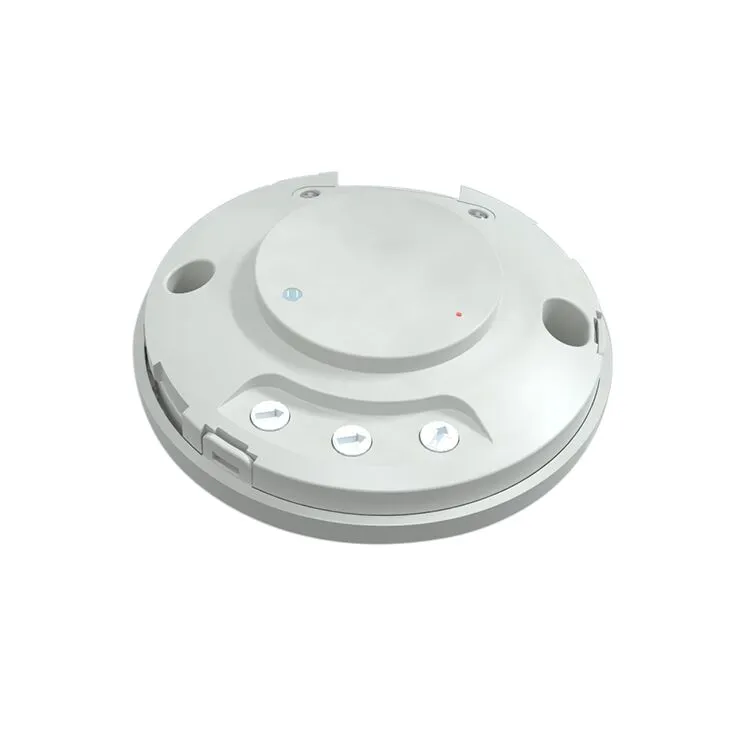

(1)Light-control setting
Adjust working light. Turn clockwise to increase it and turn anti-clockwise to decrease it. When turn to mini, it will only work below the light-control about 10LUX, when turn to max, it can work any light-control.
(2)Time setting
Adjust time setting of load work. Turn clockwise to increase it and turn anticlockwise to decrease it. The time setting is about 3min when turn to max, and the time setting is about 5sec when turn to min .
(3)Detection range setting(sensitivity)
The detection distance is minimum when turning counterclockwise to the bottom, and maximum when turning clockwise to the bottom.
The maximum range of radar detection target is 6m straight line distance between the human body and the sensor, and the detection range is 1-6m.
NOTE:When the light be auto off, it will take 1 second before the sensor is ready to detect another movement, that is, only signal detected 1 seconds later can the light be auto-on.
It is mainly for the adjustment of the delay time from the moment the signal detected and light auto-on till the light auto-off. You can define the delay time to your practical need. But you’d better lower the delay time for the sake of energy saving, since the Infrared Sensor has the function of continuous sensing, that is, any movement detected before the delay time elapses will re-start the timer and the light will keep on only if there is human in the detection range.

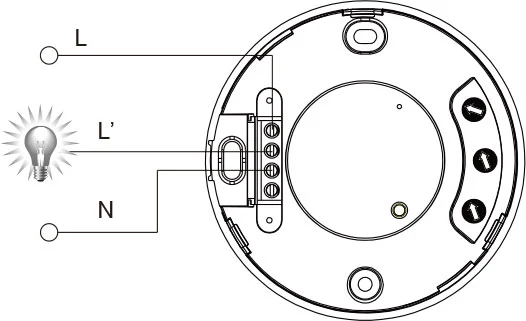

Connection-wire diagram
● Connect N, L with power;
● Connect N, L’ with load.

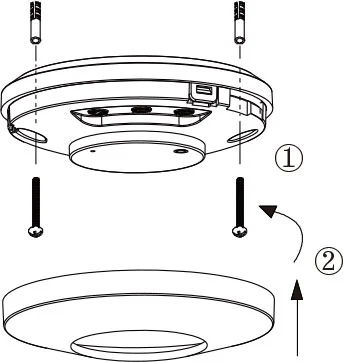

Installation instruction
NOTE:
Before installing switch off power
Test
1. Turn LUX knob clockwise to the maximum (SUN). Turn time knob anti-clockwise to the minimum.Turn sensor knob clockwise to the maximum.
2. After power on, if no continuous signal is detected, the controlled load will stop working after 5 seconds to 3 minutes.
3. Once detected, the load is working and the indicator light is on. After 5 seconds to 3 minutes, if no continuous signal is detected, the indicator light stops working. If a signal is detected after 5 seconds, the load should start working, the indicator light should light up, and stop working after 5 seconds to 3 minutes. At this time, no continuous signal is detected.
4. Rotate the LUX knob counterclockwise to the minimum. If the test is conducted at 10LUX or above, the load should not work after the inductive load stops working; But if you cover the detection window with an opaque object (towel, etc.), the load will work. In the absence of sensing signals, the load should stop working within 5 seconds to 3 minutes.
This manual is for the current content programming of this product, there are any changes and modifications to the manufacturer without notice!
It is strictly forbidden to copy the contents of the instruction manual for any other purpose without the permission of the company.
