Millimeter wave human detection senso
Use FMCW to detect people in a specified area. By combining radar signal processing with accurate human detection algorithm, high sensitivity human detection can be achieved, which can detect moving and stationary human targets. The biological presence(mainly the human body) with characteristics such as breathing and heartbeat in the detection range is detected, so that the human body can be sensed without body movements, including sleeping people.
Model:PD-MV1022
Send Inquiry
Product Details

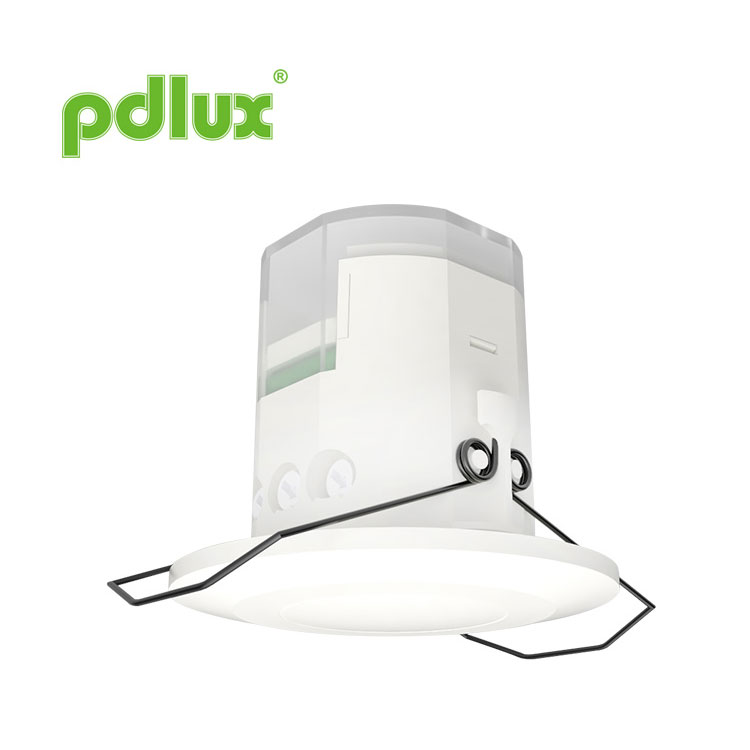

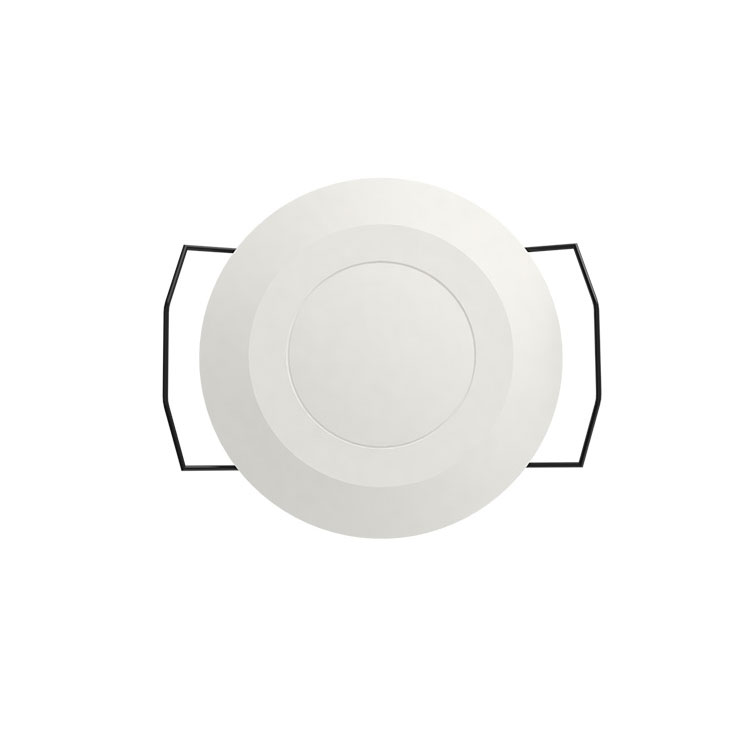

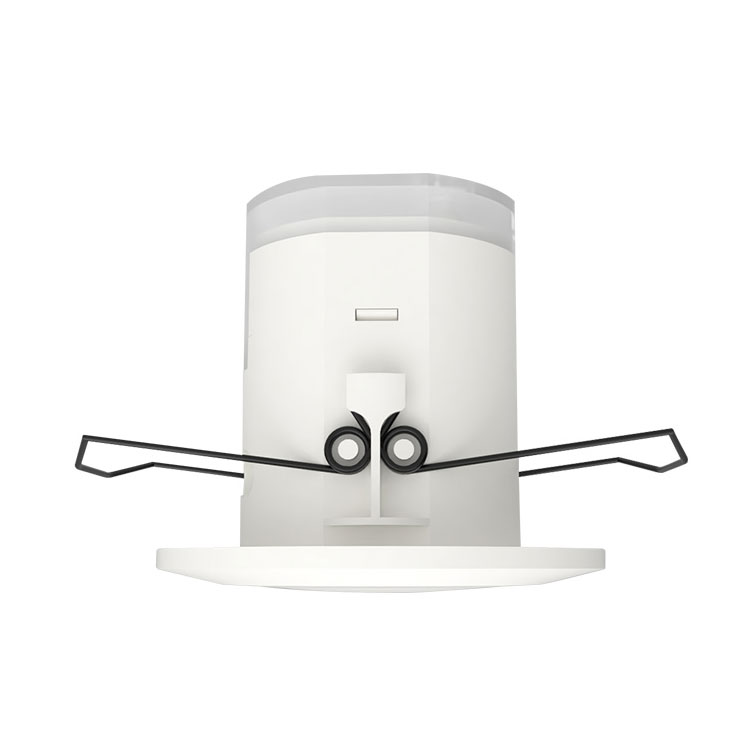

Human Life Presence Detection mmWave Sensor PD-MV1022
Summary
Use FMCW to detect people in a specified area. By combining radar signal processing with accurate human detection algorithm, high sensitivity human detection can be achieved, which can detect moving and stationary human targets. The biological presence(mainly the human body) with characteristics such as breathing and heartbeat in the detection range is detected, so that the human body can be sensed without body movements, including sleeping people.
Features
Life Presence Detection: Detect motionless sitting or lying human body.Flexibly Configurable: Configure parameters for each range gate.
Disturbance Avoidance: Accurately detect target within the range andavoid outside interference.
Regulation Compliant: In accordance with national and international regulations, support rapid installation.
Specifications
| Power supply voltage | 100-240VAC |
| Power frequency | 50/60Hz |
| Transmit power | <0.2mW |
| Rated load | 800W Max.tungsten(220-240VAC) |
| 200W Max.fluorescent & LED (220-240VAC ) | |
| 400W Max.tungsten (100-130VAC) | |
| 100W Max.fluorescent & LED (100-130VAC) | |
| Protection level | IP20, Class 2 |
| Installation sit | indoor, ceiling, wall |
| HF system | 24GHz FMCW wave, ISM band |
| Detection Angle | 360° |
| Detection distance | 1.5-4m (linear distance between probe and human body) (adjustable) |
| Delay setting | 5sec-3min, (adjustable) |
| Light control illumination | 2-2000LUX, (adjustable) |
| Power consumption | <0.3W |
| Operating temperature | -15°C~+70°C |
Sensor Information
Applications
Microwave can penetrate the glass, plastic and wood, thus the microwave sensor can be installed inside the shade made of certain thickness of glass, plastic or wood. For example, the application in lightings, only if making connection as below shown can you change the common lightings into auto-sensing lightings.
Connect N, L with power;
Connect N, L’ with load.
You can install one or more inside the ceiling or floor to control the whole passageway.
Friendly reminder: when installing two or more microwaves together,you are required to keep 4 meters one from another, otherwise the interference among them will lead to error reaction.
Setting manner:potentiometer
（1） Light-control setting
It can be defined in the range of 2~2000 LUX. To turn the knob fully anti-clockwise is about 2 lux,fully clockwise is about 2000 lux.When adjusting the detection zone and performing the walk test in daylight,you should turn the knob fully clockwise.
（2） Time setting
It can be defined from 5sec (turn fully anti-clockwise) to 3min (turn fully clockwise). Any movement detected before this time elapses will re-start the timer. It is recommended to select the shortest time for adjusting the detection range and for performing the walk test.
NOTE:When the light be auto off,it will take 1 second before the sensor is ready to detect another movement,that is,only signal detected 1 seconds later can the light be auto-on.
The correct use of delay adjustment: it is used to adjust the delay time between the light on after the sensor detects the presence of the
human body and the automatic light off. Users can adjust according to actual needs. Because microwave induction products have continuous induction function, in short, the sensor in the delay time before the end of any induction, the system will re-time, as long as the presence of people in the detection range, the light will not go out.
（3）Detection range setting(sensitivity)
The detection distance is minimum when turning counterclockwise to the bottom, and maximum when turning clockwise to the bottom. The maximum range of radar detection target is 4m straight line distance between the human body and the sensor, and the detection range is 1.5-4m.
Note: please don’t adjust the three functional knobs to excess. That is because the three functional knobs were connected to the components directly, there is a small stopper in each of the three components, when you adjust the knobs from start to end, the excessive turn will damage the stopper，and lead to the 360°non-stop turn around. The adjust range limit is 270°, please do pay attention to this..
Installation
Switch off the power. Set threaded tubes into the power cord and control line.
Connect the power and the load with the sensor according to the connection-line diagram.
Turn the knobs to the ideal conditions (Please define the settings as per the above SETTING MANNER ONE part mentioned.).
The following situations will lead to error reaction.
1、Being installed on the rocking object will lead to error reaction.
2、The shaking curtain blown by wind will lead to error reaction.
Please select the suitable place to install.
3、Being installed where the traffic is busy will lead to error reaction.
4、The sparks produced by some equipment nearby will lead toerror reaction.
The following situations will lead to error reaction.
Fault and the solution
| Fault | Failure cause | Solution |
| The load fails to work. | Light-illumination is set incorrectly. | Adjust the setting of the load. |
| The load is broken. | Change the load. | |
| The power is off. | Turn the power on. | |
| The load works all the time. | There is a continuous signal in the region of the detection. | Check the settings of the detection area. |
| The load works when there is no motion signal detected. | The lamp isn't installed well so that sensor fails to detect reliable signals. | Re-adjust the installation place. |
| Moving signal is detected by the sensor (movement behind the wall, the movement of small objects, etc.) | Check the settings of the detection area. | |
| There is life but the load is not working | The defined detection area is too small. | Check the settings of the detection area. |
● Please confirm with prefessional installation.
● For safety purposes, please cut off power before installation and removal operations.
● Any losses caused by improper operation,the manufacturer does not undertake any responsibility.
This manual is for the current content programming of this product, there areany changes and modifications to the manufacturer without notice! It is strictly forbidden to copy the contents of the instruction manual for any other purpose without the permission of the company.
