EN 301 489-1 V1.8.1(2008-04)
EN 301 489-3 V1.4.1(2002-08)
EN 300 440-1 V1.5.1(2009-03)
EN 300 440-2 V1.3.1(2009-03)
Power source: 100-240V/AC
Power frequency: 50/60Hz
Transmission power: <0.3mW
Working temperature: -15°C~+70°C
Protection level: IP20,Class II
Installation sit: indoors, ceiling mounting
HF system: 5.8GHz CW electric wave,ISM band
Detection angle: 360°
Detection range: 1-11m (radii.) (adjustable)
Time setting: 8sec-12min, (adjustable)
Light-control: 10-1000LUX, (adjustable)
Power consumption: approx.0.5W

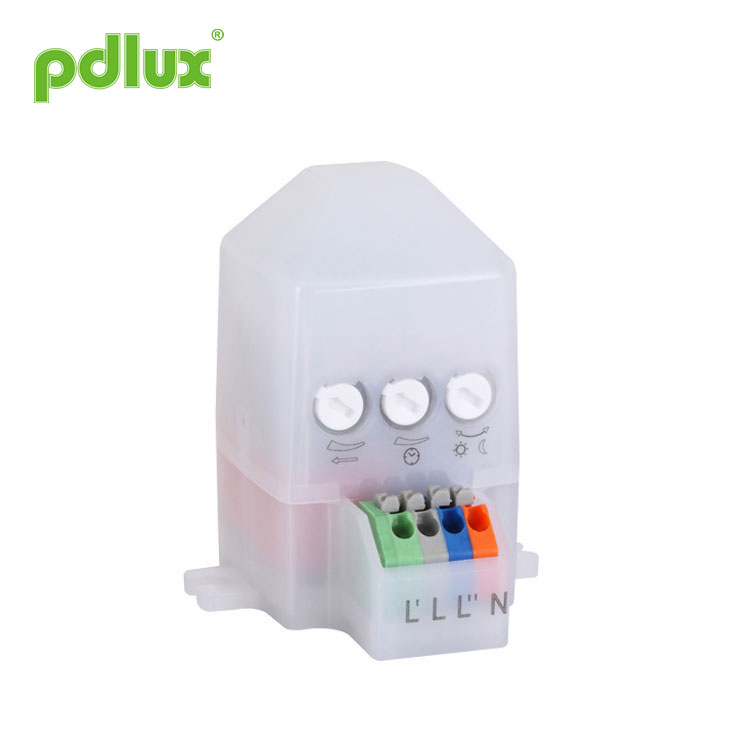

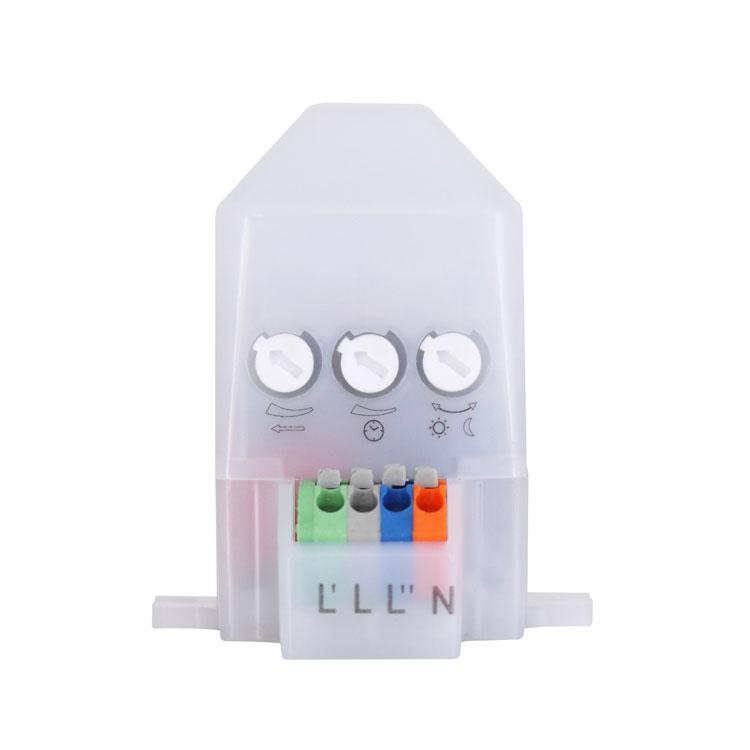

Connection mode one:
Connect N, L with power;Connect N, L’ with load.
Connect the load to L’, the load will work when signal detected and will stop working over the preset delay-time when there are no following signals.
Connection mode two:
Connect N, L with power;Connect N, L’’ with load.
Connect the load to L’’, the load will work，when signal detected ,the load stop working.
Setting manner one:potentiometer
|(1)Detection range setting(sensitivity)|
Detection range is the term used to escribe the radii of the roughly circle casting on the ground when installed at the height of 2.5 m. To turn the knob fully anti-clockwise is the minimum range, fully clockwise is the maximum.
Note: the above detection range is gained in the case of a person who is between 1.6m~1.7m tall with middle figure and moves at a speed of 1.0~1.5m/sec. if person’s stature, figure and moving speed change, the detection range will also change.
Notice: when using this product, please adjust the sensitivity (detection range) to an appropriate value but the maximum to avoid the abnormal reaction caused by the easy detection of the wrong motion by the blowing leaves & curtains, small animals or the
interference of power grid & electrical equipment. All the above mentioned will lead to the error reaction. When the product does not work normally, please try to lower the sensitivity appropriately, and then test it.Human movement will cause the sensor induction,so when you under the function testing,please leave the induction region and don't make movement to prevent the sensor continuous work.
Friendly reminder: when installing two or more microwaves together, you are required to keep 4 meters one from another, otherwise the interference among them will lead to error reaction.
|It can be defined from 8 seconds(turn fully anti-clockwise) to 12minutes(turn fully clockwise). Any movement detected before this time elapses will re-start the timer. It is recommended to select the shortest time for adjusting the detection range and for performing the walk test.|
NOTE:When the light be auto off,it will take 1 second before the sensor is ready to detect another movement,that is,only signal detected 1 seconds later can the light be auto-on.
It is mainly for the adjustment of the delay time from the moment the signal detected and light auto-on till the light auto-off. You can define the delay time to your practical need. But you’d better lower the delay time for the sake of energy saving, since the microwave sensor has the function of continuous sensing, that is, any movement detected before the delay time elapses will re-start the timer and the light will keep on only if there is human in the detection range.
|It can be defined in the range of 10~1000 LUX. To turn the knob fully anti-clockwise is about 10 lux,fully clockwise is about 1000 lux.When adjusting the detection zone and performing the walk test in daylight,you should turn the knob fully clockwise.|
Setting manner two:Remote control
ON: press ON, the load connected will keep working for 6 hours and then automatically turn to AUTO mode.
OFF: press OFF, the load connected will be off for 6 hours and then automatically turn to AUTO mode.
AUTO: press AUTO, sensor enters the auto-detecting mode, that is, when signal detected and the ambient light intensity is lower than the preset value, the load works.
|The load fails to work.||Light-illumination is set incorrectly.||Adjust the setting of the load.|
|The load is broken.||Change the load.|
|The power is off.||Turn the power on.|
|The load works all the time.||There is a continuous signal in the region of the detection.||Check the settings of the detection area.|
|The load works when there is no motion signal detected.||The lamp isn't installed well so that sensor fails to detect reliable signals.||Re-adjust the installation place.|
|Moving signal is detected by the sensor (movement behind the wall, the movement of small objects, etc.)||Check the settings of the detection area.|
|The load fails to work when there is motion signal detected.||The motion speed is too fast or the defined detection area is too small.||Check the settings of the detection area.|
We are committed to promoting the product quality and reliability, however, all the electroniccomponents have certain probabilities to become ineffective, which will cause some troubles.When designing, we have paid attention to redundant designs and adopted safety quota to avoid any troubles.This instruction, without our permission, should not be copied for any other purposes.
