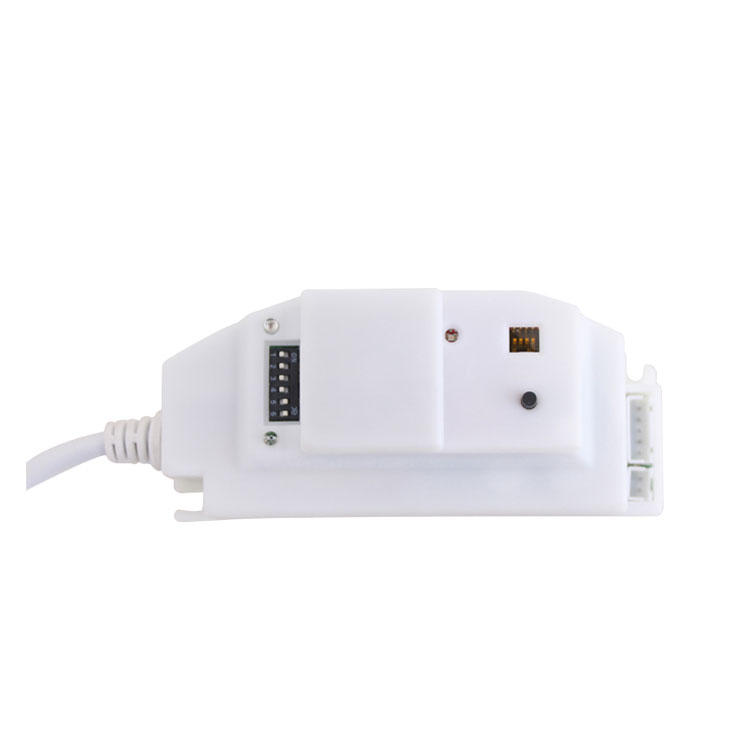

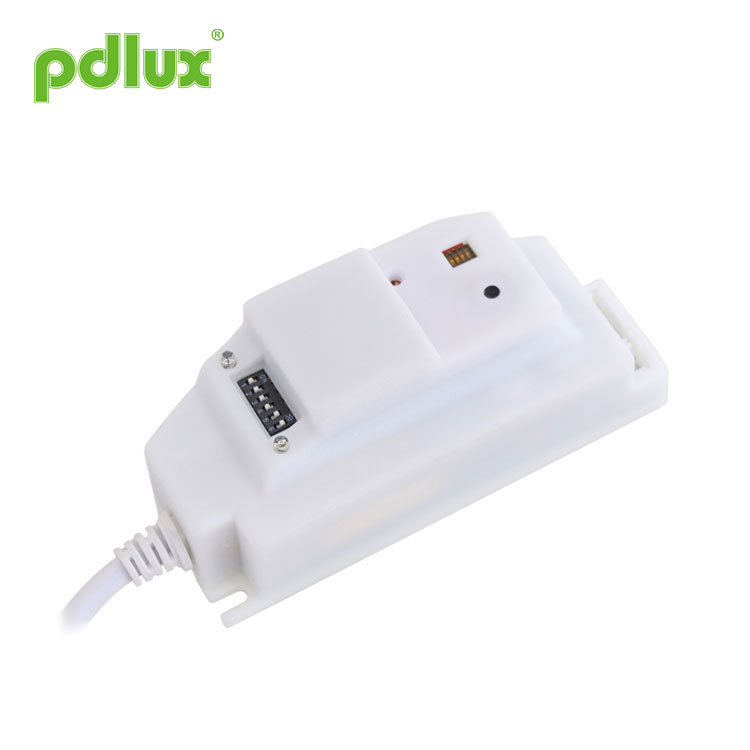

Input: 220-240VAC 50HZ
HF system: 5.8GHz CW electric wave,ISM band
Transmission power: <0.2mW
Detection angle: 360°
Detection range: 2m-4m-6m-8m (radii.) (adjustable)
Time setting: 8sec-1min-5min-12min, (adjustable)
Light-control: 10LUX-50LUX-200LUX- >2000LUX, (adjustable)
Installation sit: indoors, ceiling mounting
Power consumption: approx.0.5W
Working temperature: -15°C~+70°C
Protection level: IP20,Class II
Detection range setting (sensitivity) S1 S2
Detection range is the term used to describe the radii of the roughly circle casting on the ground when installed at the height of 3 m. To set the switch to ON is “1”, to OFF is “0”. Read through the right shown the corresponding table of the switch position to the detection range.
Notice: when using this product, please adjust the sensitivity (detection range) to an appropriate value but the maximum to avoid the abnormal reaction caused by the easy detection of the wrong motion by the blowing leaves & curtains, small animals or the interference of power grid & electrical equipment. All the above mentioned will lead to the error reaction. When the product does not work normally, please try to lower the sensitivity appropriately, and then test it. Human movement will cause the sensor induction,so when you under the function testing,please leave the induction region and don't make movement to prevent the sensor continuous work.
Time setting S3 S4
It can be defined from 8 seconds to 12minute. Any movement detected before this time elapse will re-start the timer. It is recommended to select the shortest time for adjusting the detection range and for performing the walk test. To set the switch to ON is “1”, to OFF is “0”. Read through the right shown the corresponding table of the switch position to the delay time.
It is mainly for the adjustment of the delay time from the moment the signal detected and light auto-on till the light auto-off. You can define the delay time to your practical need. But you’d better lower the delay time for the sake of energy saving, since the microwave sensor has the function of continuous sensing, that is, any movement detected before the delay time elapses will re-start the timer and the light will keep on only if there is human in the detection range.
Light-control setting S5 S6
It can be defined in the range of 10~>2000 LUX. To set the switch to ON is “1”, to OFF is “0”. Read through the right shown the corresponding table of the switch position to the light-control value.
ZIGBEE Network Settings
Adopting 2.4G ZigBee technology, you can divide the network into 16 networks using 16 different address codes, which is convenient for using different address codes in different floors or contiguous installation. For example: The lamps in one floor use one address code (the same code) to be a network, the upside or downside floor can use another to be another network. You can also use one address code for 3 floors or a gallery.
With 2.4GHz microwave as a carrier of information transmission, it can be working up to 56 lightings for automatic network control. Normal lighting add this component, you can easily implement wireless networking control, is a preferred component of lighting manufacturers.
