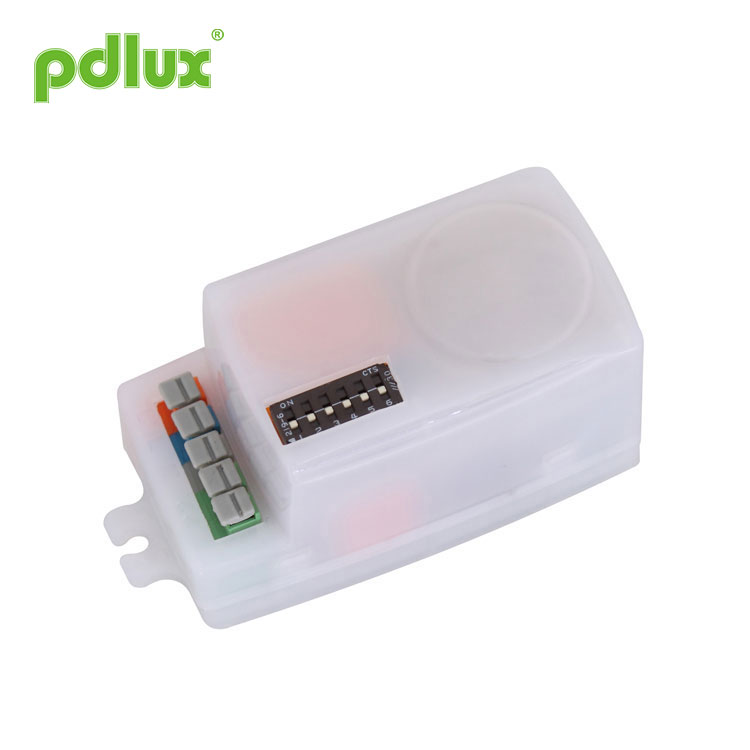

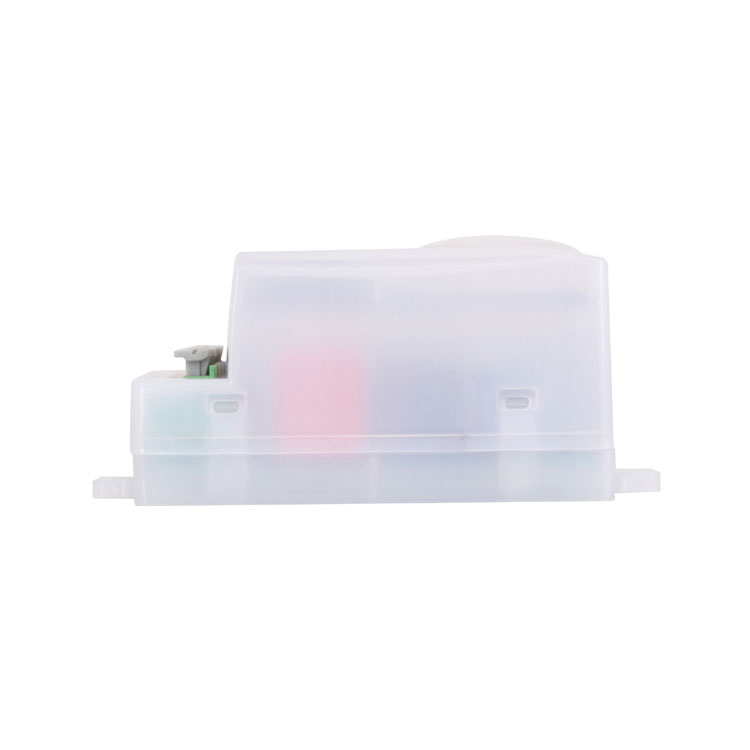

Doppler Radar Motion Sensor 5.8 GHZ
Summary
This is a hi-precision digital microwave sensor whose detection range is 360°and working frequency is 5.8GHz. It is based on Doppler principle which integrates the emitting and receiving. It adopts MCU (Micro Control Unit) that greatly increases its precision and decreases its fault rate. It’s delicate in appearance and compact in structure. It can be independently connected to the loads or easily installed inside the lightings with lampshade made of glass or plastic. It is widely applied in the passageway, washroom, elevator, household or other public areas for security protection or energy saving. It applies for several technical patents and is the perfect choice for your intelligent living.
|
EN 61058-1:2002+A2:2008 EN 50317:2002 EN 301 489-1 V1.8.1(2008-04) EN 301 489-3 V1.4.1(2002-08) EN 300 440-1 V1.5.1(2009-03) EN 300 440-2 V1.3.1(2009-03) |
Features
1.Non-radiation harm: its transmitter power is lower than 0.3mW, which does no harm to human body.
2.Reliable & Stable performance: it applies the RC filtering and digital filtering in digital processing. It also uses the digital zero trigger technology, that is, at zero point it will be auto-connected or auto-disconnected. It uses the Tyco high-power relay to control output, which ensures its reliable performance. It adopts power management chip to guarantee its stable performance in 100-240V/AC.
3.Remote setting: it is designed with the remote function, that is, you can preset its function by DIP switch or remote controller to your practical need.You can easily set and select the function within 12 meters.
4.Slowly on and off: it is added with PWM controlled optical coupler working with the specialized controlled power to achieve the slowly on and off, that is, when signal detected, the light controlled will be slowly on and will be slowly off if there is no signal detected during the preset delay time. It protects human from the unfitness caused by the sudden light or darkness.
Specifications
Power source: 100-240V/AC Power frequency: 50/60Hz Transmission power: <0.3mW Rated load: 2400W/10A,Max,tungsten(cosφ=1)(220-240V/AC) 1500W/8A,Max,fluorescent(cosφ=0.5)(220-240V/AC) 1200W/10A,Max,tungsten(cosφ=1)(100-130V/AC) 800W/8A,Max,fluorescent(cosφ=0.5)(100-130V/AC) Working temperature: -15°C~+70°C Protection level: IP20,Class II |
Installation sit: indoors, ceiling mounting HF system: 5.8GHz CW electric wave,ISM band Detection angle: 360°(Ceiling installation), 180°(Wall installation) Detection range: 1m-3m-6m-11m (radii.) (adjustable)(Ceiling installation) 25m Max. (adjustable)(Wall installation) Time setting: 8sec-1min-5min-12min, (adjustable) Light-control: 10LUX-50LUX-200LUX-1000LUX, (adjustable) Power consumption: approx.0.5W |
Sensor information
Applications
Microwave can penetrate the glass, plastic and wood, thus the microwave sensor can be installed inside the shade made of certain thickness of glass, plastic or wood. For example, the application in lightings, only if making connection as below shown can you change the common lightings into auto-sensing lightings.
< Connect N, L with power;Connect N, L’ with load. >
The above application inside the lightings is one of multiple practical utilizations. You can also install one or more inside the ceiling or floor to control the whole passageway.
Friendly reminder: when installing two or more microwaves together, you are required to keep 4 meters one from another, otherwise the interference among them will lead to error reaction
Setting manner one:DIP switch

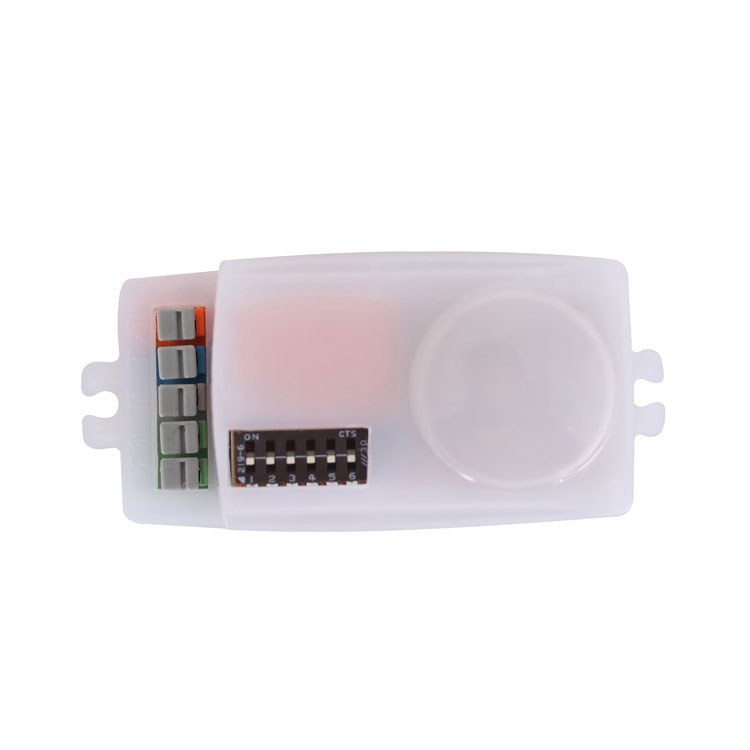

As below shown, by S1,S2 to set the light-control value, S3,S4 the delay time, S5,S6 the detection range. It may take times to adjust values before they satisfy your need.
(1)Light-control setting It can be defined in the range of 10~1000 LUX. To set the switch to ON is “1”, to OFF is “2”. Read through the right shown the corresponding table of the switch position to the light-control value. |
|
(2)Time setting It can be defined from 8 seconds to 12minute. Any movement detected before this time elapse will re-start the timer. It is recommended to select the shortest time for adjusting the detection range and for performing the walk test. To set the switch to ON is “1”, to OFF is “2”. Read through the right shown the corresponding table of the switch position to the delay time. |
(3)Detection range setting (sensitivity) Detection range is the term used to describe the radii of the roughly circle casting on the ground when installed at the height of 2.5 m. To set the switch to ON is “1”, to OFF is “2”. Read through the right shown the corresponding table of the switch position to the detection range. |
|
Friendly reminder: when installing two or more microwaves together, you are required to keep 4 meters one from another, otherwise the interference among them will lead to error reaction.
Setting manner two:Remote control ON: press ON, the load connected will keep working for 6 hours and then automatically turn to AUTO mode. OFF: press OFF, the load connected will be off for 6 hours and then automatically turn to AUTO mode. AUTO: press AUTO, sensor enters the auto-detecting mode, that is, when signal detected and the ambient light intensity is lower than the preset value, the load works. |
|
1、Being installed on the rocking object will lead to error reaction.
2、The shaking curtain blown by wind will lead to error reaction. Please select the suitable place to install.
3、Being installed where the traffic is busy will lead to error reaction.
4、The sparks produced by some equipment nearby will lead to error reaction.
Fault and the solution
Fault | Failure cause | Solution |
The load fails to work. | Light-illumination is set incorrectly. | Adjust the setting of the load. |
The load is broken. | Change the load. | |
The power is off. | Turn the power on. | |
The load works all the time. | There is a continuous signal in the region of the detection. | Check the settings of the detection area. |
The load works when there is no motion signal detected. | The lamp isn't installed well so that sensor fails to detect reliable signals. | Re-adjust the installation place. |
Moving signal is detected by the sensor (movement behind the wall, the movement of small objects, etc.) | Check the settings of the detection area. | |
The load fails to work when there is motion signal detected. | The motion speed is too fast or the defined detection area is too small. | Check the settings of the detection area. |
● Please confirm with prefessional installation.
● For safety purposes, please cut off power before installation and removal operations.
● Any losses caused by improper operation,the manufacturer does not undertake anyresponsibility.
We are committed to promoting the product quality and reliability, however, all the electroniccomponents have certain probabilities to become ineffective, which will cause some troubles.When designing, we have paid attention to redundant designs and adopted safety quota to avoid any troubles.
This instruction, without our permission, should not be copied for any other purposes.
