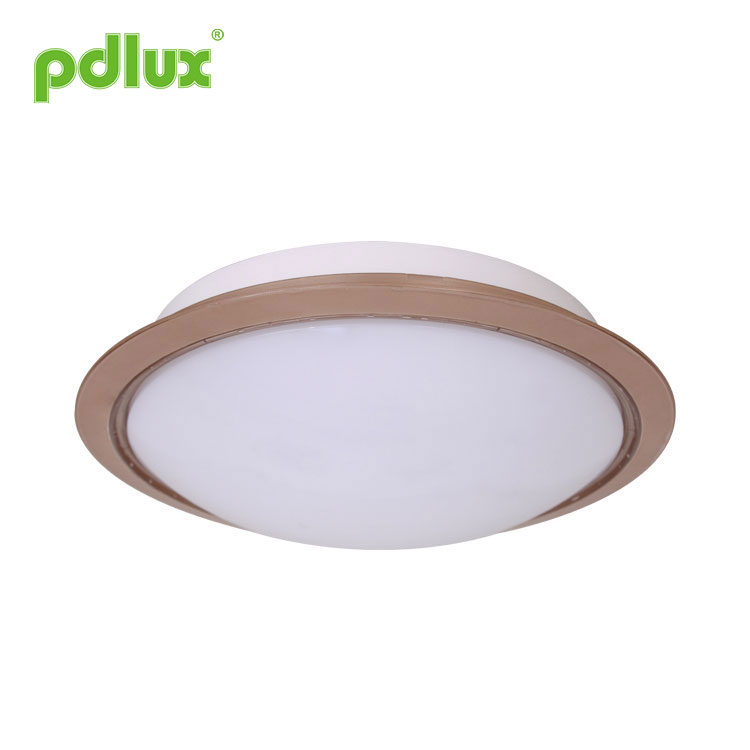

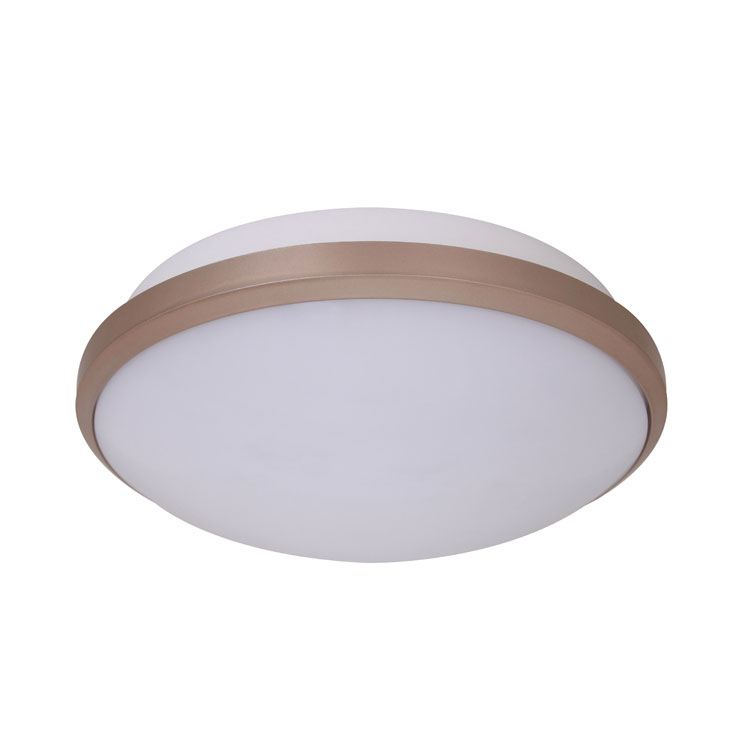

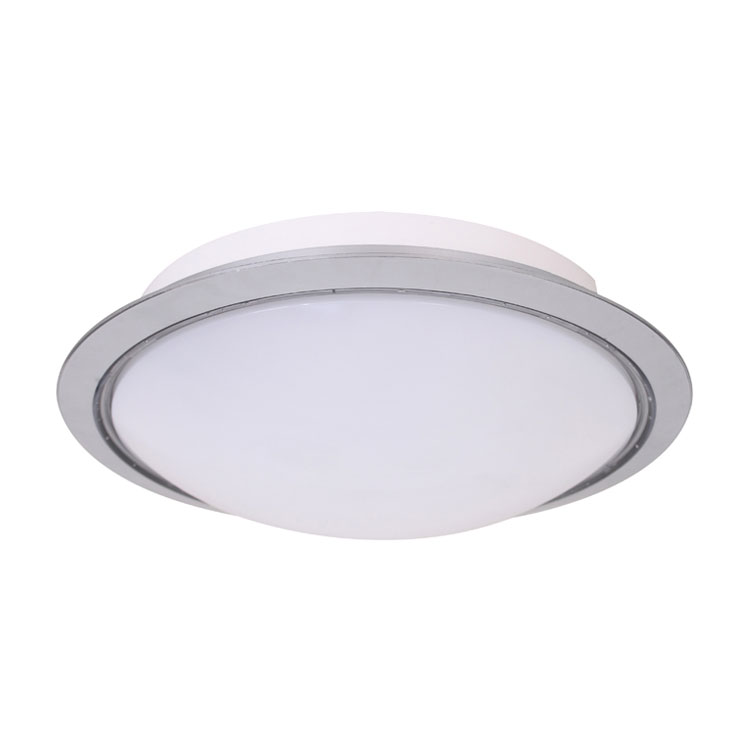

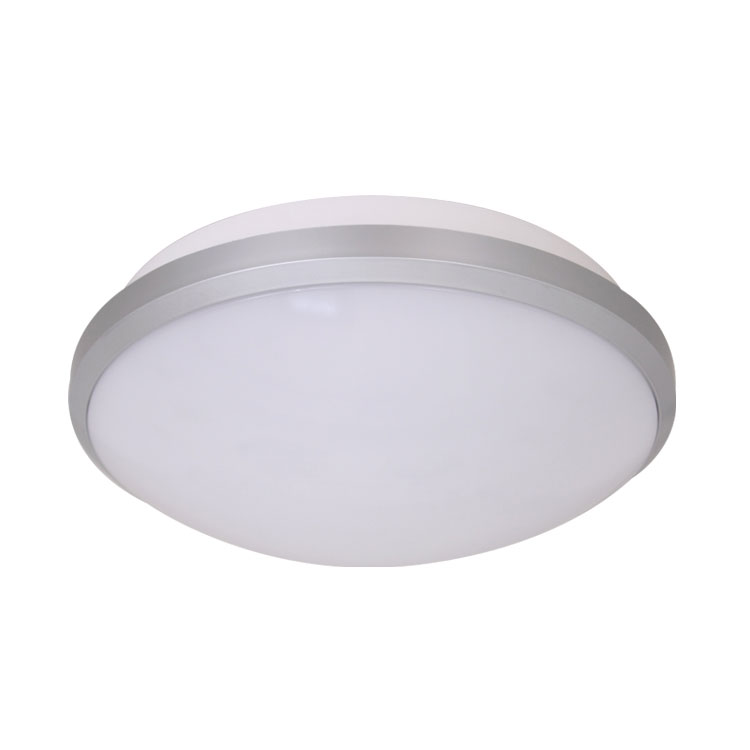

Radar Moving Sensor Lamp

Microwave Sensor Lamp PD-LED2034 instruction

Summary

This is a microwave sensor switches controlled LED lights,the microwave sensor was built into the lamp ,it has 120pcs high brightness LEDs inside ,with total power of 19 watts. When light on, the luminous flux will be more than 800 lm, equivalent to twice that of 60 watt incandescent lamp(≈400lm). The microwave sensor switch is a new type automatic switch that comes after voice switch ,and infrared sensor switch .The detection way has the below advantages compared with other as follows: 1. non-contact detection, 2. Suitable for bad environment, immune to temperature, humidity, noise, air, dust, light…3.RF interference ability, 4.
Transmission power only 0.3 mW, It will not harm the human body. Simple installation+ easy wiring.

We adopt this sensitive advanced sensor switchs in lighting control, enabling the light to turn on automatically when one comes , automatically turn off when one goes out In addition to the widely usage in the aisle stairs ,living room and bedrooms , it also can be installed in the bathroom.

The built-in microwave sensor switch can penetrate plastic, glass, wood . So it can be installed in glass or plastic shell lamp This allows the application of microwave sensor switch in different styles of lights for energy
control. Now, we can provide a variety of microwave sensor LED lamps to meet the needs of different people with different preferences.

This lamp is designed with several collocations, namely, the pure LED lamp without sensor; the automatic LED lamp with sensor; the automatic LED lamp with battery backup that is the Emergency Function(PD-LED2034-D).

Name of each part

Specifications

Power source: 100-240V/AC
Power frequency: 50/60Hz
Rated lode:19W Max.
HF system: 5.8GHz
Time setting: 8sec to 12min (adjustable)
Detection range: 1-10m (radii.) (adjustable)
Light-control: 10-2000LUX(adjustable)
Detection angle: 360°
Transmission power: <0.3mW
Standby power: <0.9W
Luminous flux: 850lm (warm white)
 660lm (cold white)
Protection: Class2
Material: Body:PC Lampshade:PC
Working Temperature: -20~+55℃
Installation height: 2.5-3.5m (ceiling mount)
LED quantity: 120PCS(T5050)

Detection range setting (sensitivity)

Detection range is the term used to describe the radii of the more or less circular detection zone produced on the ground after mounting the sensor light at a height of 2.5m, turn the detection range control fully anti-clockwise to select minimum detection range(approx.1m radii), and fully clockwise to select maximum detection range(approx. 10m radii).

NOTE: the above detection range is gained in the case of a person who is between 1.6m~1.7m tall with middle figure and moves at a speed of 1.0~1.5m/sec. if person’s stature, figure and moving speed change, the detection range will also change.
In different cases, the sensitivity of the lights has certain deviation.

Solutions of prevent the power network pulse interference the products:
Due to the difference of regional interference power network, the pulse of interference is uncertain,so the user are not suggested to adjust the sensitive to the maxium when using.Suggestion:Please install and adjust the sensitive in the appropriate distance using,do not set the maxium sensitivity to prevent misoperation.

ATTENTION: When use this product, please adjust the sensitivity to an appropriate position you need, please do not adjust the sensitivity to maximum, to avoid the product does not work normally caused by wrong motion.Because the sensitivity is too high easily detect the wrong motion by wind blowing leaves & curtains, small animals, and the wrong motion by interference of power grid & electrical equipment. All those lead the product does not work normally !
When the product does not work normally, please try to lower the sensitivity appropriately, and then test it.

The detection distance may multiply for the reflection on microwave electromagnetic field by the metal or glass materials. Thus, lower the sensitivity to reach the appropriate detection distance. Never turn the SENS knob to the maximum value to avoid error detection. Also the surrounding environment will lead to error action, e.g. the automobiles passing by or the wandering objects caused by the wind. Products should be installed more than 4 meters one from the other, otherwise the interference among them will cause error action.

The proper use of Sensitivity potentiometer: as the photograph show, the knob is specialized in adjusting sensitivity.when use,user can adjust the knob to the middle.of course, in the process of the practical usage,if you feel the sensitivity is ok ,you don't need to adjust it. If you feel it is low,you could adjust it higher properly. Due to some environment led to wrong action,such as car passing,wind making object fly and so on(as fig.2 fig3),so we advise sensitivity hadn't be adjusted to the max.

Time setting

The light can be set to stay ON for any period of time between approx. 8sec(turn fully anti-clockwise) and a maximum of 12min(turn fully clockwise). Any movement detected before this time elapse will re-start the timer. It is recommended to select the shortest time for adjusting the detection zone and for performing the walk test.

NOTE: After the light switches OFF, it takes approx. 1sec before it is able to start detecting movement again. The light will only switch on in response to movement once this period has elapsed.

It is mainly for the adjustment of the delay time from the moment the signal detected and light auto-on till the light auto-off. You can define the delay time to your practical need. But you’d better lower the delay time for the sake of energy saving, since the microwave sensor has the function of continuous sensing, that is, any movement detected before the delay time elapses will re-start the timer and the light will keep on only if there is human in the detection range.

Warning: in the process of installation test ,please far away from the sensor lamp,because it will turn on once detect you or test staff.

Please keep a certain distance with sensor lamp when test,otherwise,the sensor lamp will turn on once detect you in the detection range.

Light-control setting

The chosen light response threshold can be infinitely from approx. 10-2000lux. Turn it fully anti-clockwise to select dusk- to-dawn operation at about 10 lux. Turn it fully clockwise to select daylight operation at about 2000lux. The knob must be turned fully clockwise when adjusting the detection zone and performing the walk test in daylight.

LUX knob is used to adjust sensor lamp where can turn on by sensor ,in addition,we can choose suitable location according to the needs of customer.

Change the location of light transduce to the location where the daylight is visible.

Note: Please don’t adjust the three functional buttons to excess.

1. Please keep it away from the children when installation.
2. Please avoid to be installed where the temperature or humidity is high.
3. Please cut off the power before installation.

• Step1 Seperate the lamp into two parts:A and B.

• Step2 Turn the knobs to the ideal conditions
 (Please define the settings as per the above FUNCTION part mentioned.).
• Step3 Put the base of the product on the ceiling to make the drilling mark.
• Step4 Install the product on the place where you marked.
• Step5 Knock the plastic expansion screw into the hole which you drill.
• Step6 Put the power line through the line hole to connect on the wiring.
• Step7 Fix the base of the product on the selected place with the screws.
• Step8 Rotate the lampshade clockwise into the base. Installation finished.

Fault and the solution

1.The LEDS in serial can function when all the seals installed in place.
2.Please don’t remove or connect with other lamp when powered on.
3.When the LEDS in serial are damaged ,you need experienced technician to repair using the same rating LEDS.

●Please confirm with profession installation.
●Please cut off power supply before installation and removal operations.
●Make sure that you have cut off the power for safety purposes.
●Improper operation caused losses, the manufacturer does not undertake any responsibility.

We are committed to promoting the product quality and reliability, however, all the electronic components have certain probabilities to become ineffective, which will cause some troubles. When designing, we have paid attention to redundant designs and adopted safety quota to avoid any troubles.
This instruction, without our permission, should not be copied for any other purposes.
