PDLUX PD-LED2040-D
When using LED Emergency Lighting Microwave Induction Lamp, please adjust the sensitivity (detection range) to an appropriate value but the maximum to avoid the abnormal reaction caused by the easy detection of the wrong motion by the blowing leaves & curtains, small animals or the interference of power grid & electrical equipment. All the above mentioned will lead to the error reaction. When the product does not work normally, please try to lower the sensitivity appropriately, and then test it.

Model:PD-LED2040-D

Send Inquiry

Product Details

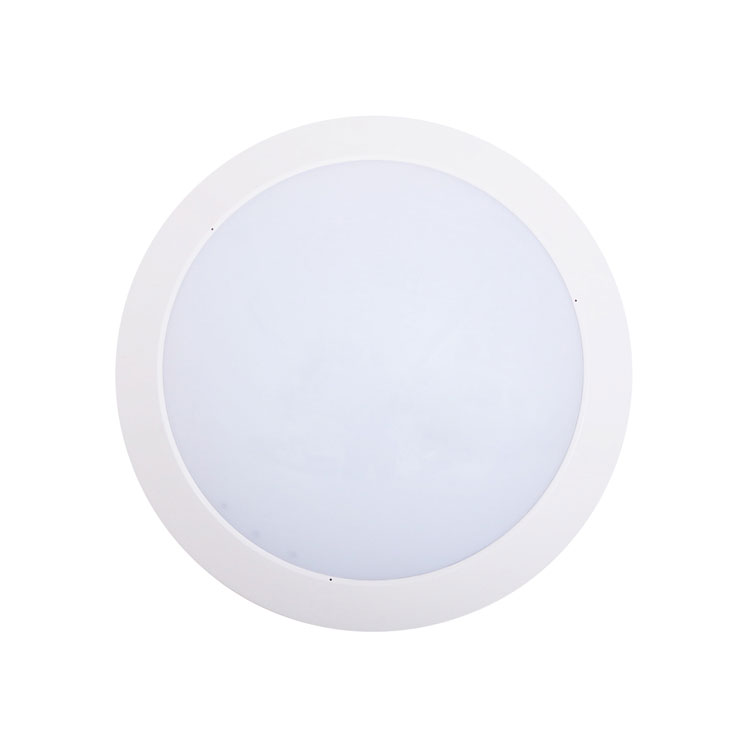

PD-LED2040-D Microwave Sensor Light Instruction





Summary
This is a newly designed intelligent ceiling mount microwave sensor LED light, with the extra function of power supply in emergency. The lighting is auto-managed by AC direct power or battery backup, that is, when power failure, the battery backup will be responsible for the power supply of 3.5 watt.The battery backup can continuously supply power for more than 3 hours or even more in the sensor energy-saving mode. It is widely applied in the corridor, washing room, elevator lobby etc.
This product is designed with two configurations: one is the sensor lamp with the function of supplying power in emergency and the other one is the intelligent sensor lamp without the emergency function. You can make purchase according to the practical need. But in most cases, it is necessary and wise to choose the former one, for that the occasional power outage will cause trouble, or even danger.


Use high quality PC lampshade.Strengthen the flexible refraction of light.And its function of anti-ultraviolet makes the shade not easy to turn yellow and be broken.

LED lamp consumes power 80% less than incandescent lamp and 50% less than fluorescent lamp.


Name of each part


Specifications

Power source: 100-240V/AC, 50/60Hz
Rated LED: 15W Max.(AC)
 3.5W Max.(DC)
Charging power: <4W Max.(light off & light on)
Slaving capacity:1A Max(100-240V/AC)
HF system: 5.8GHz
Battery: 7.4V / 1500mAH lithium battery
Continuous illumination time: ≥180min
Transmission power: <0.2mW
Time setting: 10sec to 12min (adjustable)
Detection range: 2-10m (radii.) (adjustable)
Light-control: 10-2000LUX(adjustable)
Detection angle: 360°
Power factor:>0.9
Installation height: 2.5-3.5m (ceiling mount)
Standby power:<0.5W
LED quantity: 72PCS
Working temperature: -20~+55℃


Information sensor


Function of LED Emergency Lighting Microwave Induction Lamp

Setting manner :potentiometer

LED Emergency Lighting Microwave Induction Lamp may take times to adjust values before they satisfy your need.

(1)Detection range setting (sensitivity)


Detection range is the term used to describe the radii of the more or less circular detection zone produced on the ground after mounting the sensor light at a height of 2.5m, turn the reach control fully anticlockwise to select minimum reach (approx.2m radii), and fully clockwise to select maximum reach (approx. 10m radii).

NOTE of LED Emergency Lighting Microwave Induction Lamp: the above detection distance is gained in the case of a person who is between 1.6m~1.7m tall with middle figure and moves at a speed of 1.0~1.5m/sec. if person’s stature, figure and moving speed change, the detection distance will also change.
In different cases, the sensitivity of the lights has certain deviation.

Notice: When using LED Emergency Lighting Microwave Induction Lamp, please adjust the sensitivity (detection range) to an appropriate value but the maximum to avoid the abnormal reaction caused by the easy detection of the wrong motion by the blowing leaves & curtains, small animals or the interference of power grid & electrical equipment. All the above mentioned will lead to the error reaction. When the product does not work normally, please try to lower the sensitivity appropriately, and then test it.

Friendly reminder: when installing two or more microwaves together, you are required to keep 4 meters one from another, otherwise the interference among them will lead to error reaction.


(2)Time setting


The light can be set to stay ON for any period of time between approx. 10sec(turn fully anti-clockwise) and a maximum of 12min(turn fully clockwise). Any movement detected before this time elapse will re-start the timer. It is recommended to select the shortest time for adjusting the detection zone and for performing the walk test.

NOTE: After the light switches OFF, it takes approx. 1sec before it is able to start detecting movement again. The light will only switch on in response to movement once this period has elapsed.

It is mainly for the adjustment of the delay time from the moment the signal detected and light auto-on till the light auto-off. You can define the delay time to your practical need. But you’d better lower the delay time for the sake of energy saving, since the microwave sensor has the function of continuous sensing, that is, any movement detected before the delay time elapses will re-start the timer and the light will keep on only if there is human in the detection range.


(3)Light-control setting


The chosen light response threshold can be infinitely from approx.10- 2000LUX. Turn it fully anti-clockwise to select dusk- to-dawn operation at about 10 lux. Turn it fully clockwise to select daylight operation at about 2000lux. The knob must be turned fully clockwise when adjusting the detection zone and performing the walk test in daylight.

(4)Percentage dimmable lighting


It can be defined in the range of 0%~30%. When the ambient light is less than 70 lux, the system starts dimming mode. If there is no signal detected during the delay time, it will enter the percentage lighting. Once signal detected, it recovers to 100% lighting. It will auto exit dimming mode, when the ambient light is over 100 lux. The dimming mode works digitally and independently.

Note: Please don’t adjust the four functional buttons to excess. That is because the four functional buttons were connected to the components directly, there is a small stopper in each of the three components, when you adjust the buttons from start to end, the excessive turn will damage the stopper,and lead to the 360°non-stop turn around. Theadjust range limit is 270°, please do pay attention to this.

Indicator function
Red indicator—— Charging indicator : Indicator lights when charging and be off when full charged.
Green indicator—— Full-charged indicator : Full battery, the indicator lights.
Sensor indicator—— when detecting,the indicator light on (green).

Battery Switch
This switch is to control the battery connection. To avoid power-consumption in transit or in storage, we preset the switch to OFF, that is, the battery is not connected. Before installation, you should set the switch to ON to make sure that the battery is well connected to achieve the power-supply in emergency.


Installation
Connection-wire diagram

Fault and the solution

Fault Failure cause Solution
Does not work with the load Light-illumination set incorrectly, the load is broken Adjust the setting of the load
The power is off Change the load
There is a continuous signal in the region of the detection Turn the power on
Work all the time with the load The sensor have not been installed correctly Check the settings of the detection area
When there is no a moving signal work with the load Sensors failed to pack good cause its cannot reliably detect signal Re-install the outer covering
Moving signal is detected by the sensor (movement behind the wall, the movement of small objects, etc.) Check the settings of the detection area
When there is a moving signal work with the load The moving body is too fast or the detection area is too small Check the settings of the detection area


1.The LEDS in serial can function when all the seals installed in place.
2.Please don’t remove or connect with other lamp when powered on.
3.When the LEDS in serial are damaged ,you need experienced technician to repair using the same rating LEDS.

●Please confirm with prefessional installation.
●For safety purposes, please cut off power before installation and removal operations.
●Any losses caused by improper operation,the manufacturer does not undertake any responsibility.

We are committed to promoting the product quality and reliability, however, all the electronic components have certain probabilities to become ineffective, which will cause some troubles. When designing, we have paid attention to redundant designs and adopted safety quota to avoid any troubles.
This instruction, without our permission, should not be copied for any other purposes.
