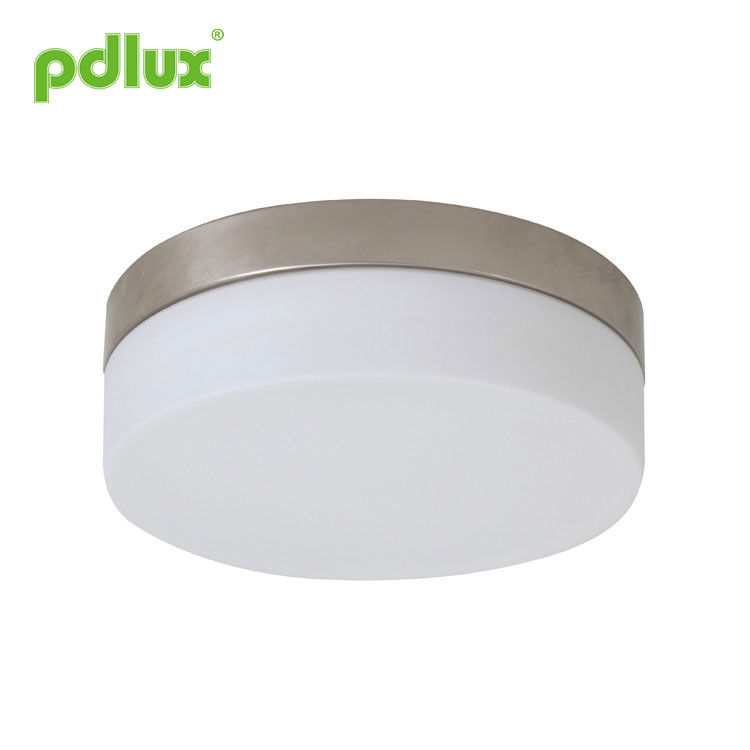

E27 Lamp Holder 5.8GHz Radar Doppler Microwave Induction Lamp

Microwave Sensor Lamp  PD-IN2008 instruction

PRODUCT INFORMATION This product appearance is concise, easy, use range (sitting room, bedroom, study, corridor, etc), function of advanced internal microwave sensors try products humanized control. The microwave sensors is according to the microwave doppler effect <the basic principle of radar> , it can be widely used in as automatic control switch, the security system, and automatic video control system of ATM, as well as other automatic induction control area. The detection way has the below advantages compared with other as follows: 1. Non-contact detection, 2. Suitable for bad environment, immune to temperature, humidity, noise, air, dust, light…3.RF interference ability, 4.Transmission power only 0.2 mW, It will not harm the human body. Simple installation+ easy wiring. We use appropriative micro processing integrator, not only for high sensitivity and wide range of detection, and on very reliable work, error rate is extremely low, It can stable working on the temperature range: - 15 ~ + 70 degrees.

NAME OF EACH PART

Use high quality White frosted glass chimney.Strengthen the flexible refraction of light.And its function of anti-ultraviolet makes the shade not easy to turn yellow and be broken.

Always bright technology makes it’s lifetime 6 times as long as the ordinary incandescent lamp

PROCEDURE OF INSTALLATION

Note:Please bring the following tools

•Step1 Rotating chimney down chimney(as follow: the product should be separated into two parts as A and B)

NOTE: Chimney is fragile, please don't take too much force

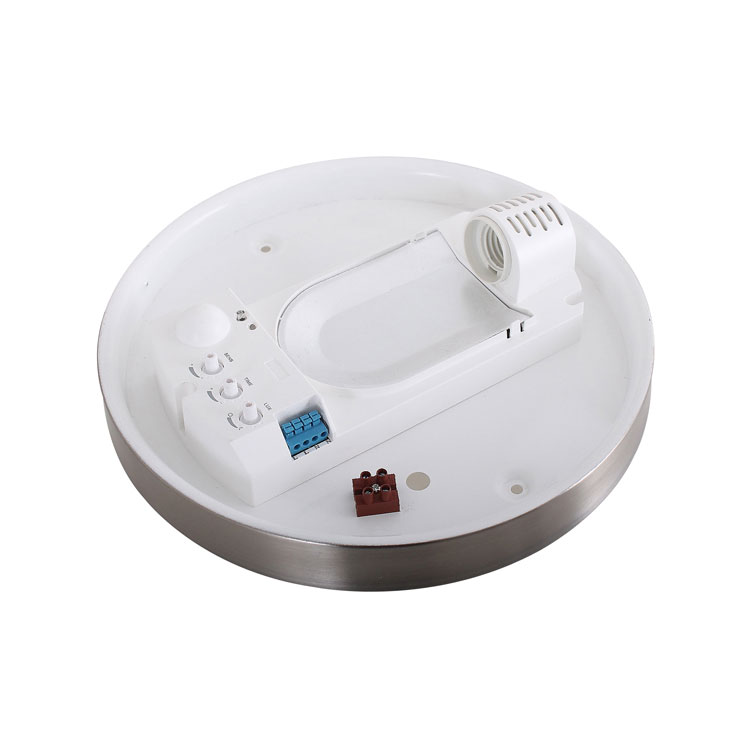

• Step2 Turn the knobs to the ideal conditions (as Fig.2)

Detection range setting (sensitivity)

Detection range is the term used to describe the radii of the more or less circular detection zone produced on the ground after mounting the sensorlight at a height of 2.5m, turn the reach control fully anticlockwise to select minimum reach (approx.1 m radii), and fully clockwise to select maximum reach (approx. 10m radii).

Time setting

The light can be set to stay ON for any period of time between approx.8sec(turn fully anticlockwise) and a maximum of 20min(turn fully clockwise). Any movement detected before this time elapse will re-start the timer. It is recommended to select the shortest time for adjusting the detection zone and for performing the walk test.

Light-control setting

The chosen light response threshold can be infinitely from approx. 10-2000lux. Turn it fully anti-clockwise to select dusk- to-dawn operation at about 10lux. Turn it fully clockwise to select daylight operation at about 2000lux. The knob must be turned fully clockwise when adjusting the detection zone and performing the walk test in daylight.

• Step4 Install the product on the place where you marked (as Fig.4)
• Step5 Knock the plastic expansion screw into the hole which you drill (as Fig.5)

• Step6 Put the power line through the line hole to connect on the wiring (as Fig.6)

• Step7 Fix the base of the product on the selected place with the screws (as Fig.7)

• Step8 Will rotate, cover chimney on base (as Fig.8)

TROUBLESHOOTING

NOTE: the high-frequency output of this sensor is <0.2mW- that is just one 5000 of the transmission power of a mobile phone or the output of a microwave oven.

●Please confirm with prefessional installation.
●Please cut off power supply before installation and removal operations.
●Make sure that you have cut off the power for safety purposes.
●Improper operation caused losses, the manufacturer does not undertake any responsibility.

We are committed to promoting the product quality and reliability, however, all the electronic components have certain probabilities to become ineffective, which will cause some troubles.When designing, we have paid attention to redundant designs and adopted safety quota to avoid any troubles.
This instruction, without our permission, should not be copied for any other purposes.
