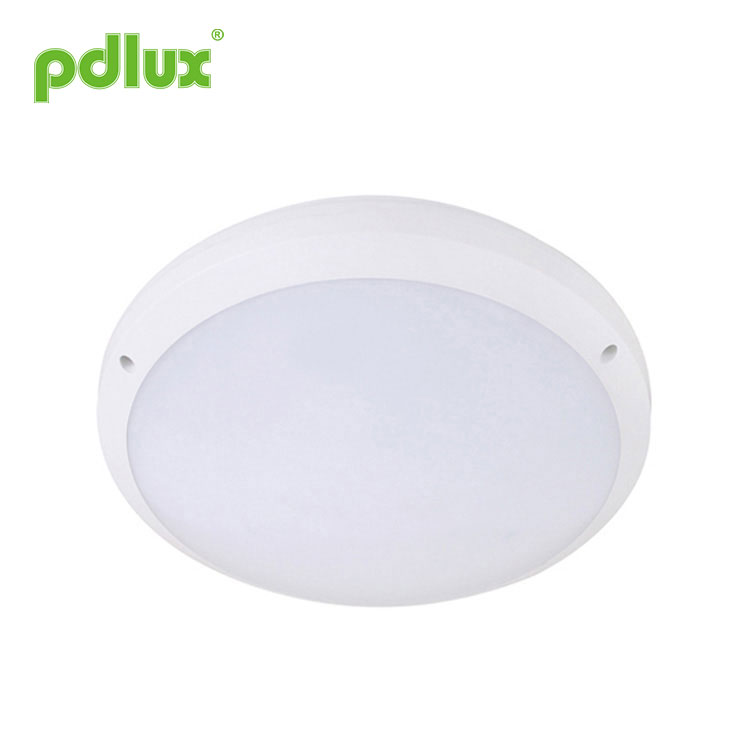

LED IP65 Waterproof Microwave Induction Lamp
PDLUX PD-LED2046MDS
This is a microwave sensor switches controlled LED IP65 Waterproof Microwave Induction Lamp,the microwave sensor was built into the light ,it has 72pcs high brightness LEDs inside ,with total power of 18 watts. When light on, the luminous flux will be more than 1050 lm, 60 watt incandescent lamp(≈400lm) and the life exceeds 50,000 hours.
Model:PD-LED2046MDS
Send Inquiry
Product Details
Microwave Sensor Light Instruction
PD-LED2046GS IP 65
|
|

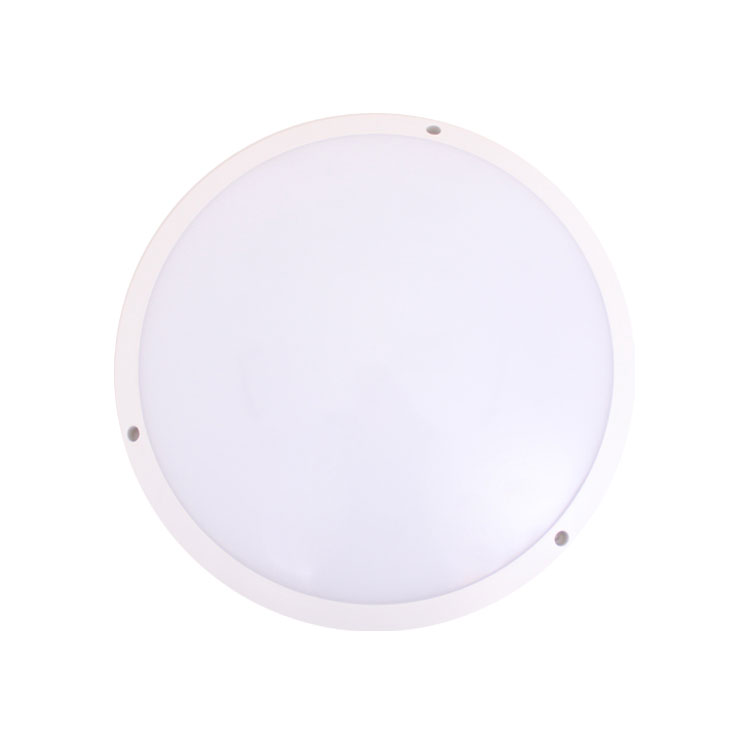

Use high quality PC lampshade.Strengthen the flexible refraction of light.And its function of anti-ultraviolet makes the shade not easy to turn yellow and be broken. |

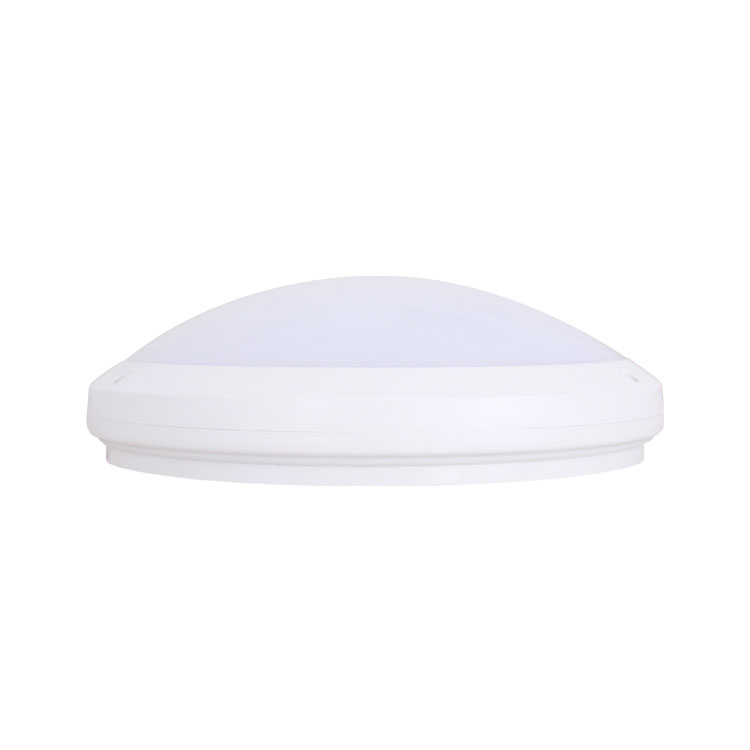

Product size
|
100-250V~ |

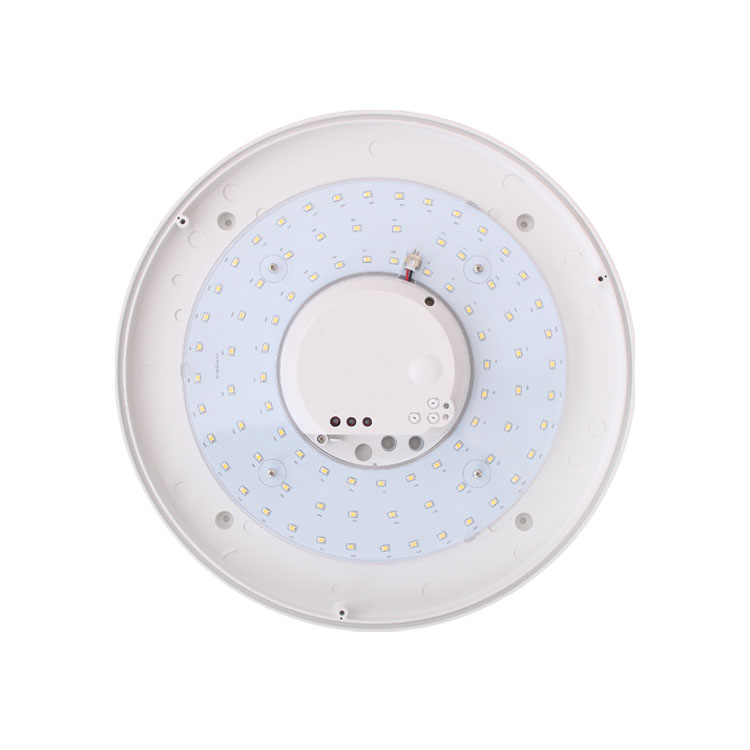

72 x LED(2835), 18W |
Ø339 x 108 mm |
About the “ L’ ” :
LED IP65 Waterproof Microwave Induction Lamp have synchronization function ,
also can call them "master and servant" function.
"Master" is with sensor's lamp ,"Servant" is without sensor's lamp"
When the "Master" lamp turn on ,the "Servant" will follow turn on .
When the "Master" lamp turn off ,the "Servant" will follow turn off .
If you need this function ,connecting method is that :
N is for master and servant(N parallel), L is for master ,L'is for servant .
Summary
This is a microwave sensor switches controlled LED IP65 Waterproof Microwave Induction Lamp,the microwave sensor was built into the light ,it has 72pcs high brightness LEDs inside ,with total power of 18 watts. When light on, the luminous flux will be more than 1050 lm, 60 watt incandescent lamp(≈400lm) and the life exceeds 50,000 hours. We adopt this sensitive advanced sensor switchs in lighting control, enabling the light to turn on automatically when one comes , automatically turn off when one goes out In addition to the widely usage in the aisle stairs ,living room and bedrooms , it also can be installed in the bathroom
Specification of LED IP65 Waterproof Microwave Induction Lamp
| Power source: 100-250V/AC | Detection angle: 360° |
| Power frequency: 50/60Hz | Standby power: <0.5W |
| Rated load: 18W Max. | Installation height: 2.5-4.5m |
| HF system: 5.8GHz CW electric wave, | (ceiling mount) |
| ISM wave band | Luminous flux: 1050lm |
| Transmission power: <0.2mW | Working temperature: -10°C~+55°C |
| Time setting: 8sec to 12min (adjustable) | LED quanlity: 72PCS |
| Detection range: 1-8m (radii.)(adjustable) | LED specifications: 2835 |
| Light-control: 10-1000LUX(adjustable) |
Fault and the solution
| Fault | Failure cause | Solution |
| The load fails to work. | Light-illumination is set incorrectly. | Adjust the setting of the load. |
| The load is broken. | Change the load. | |
| The power is off. | Turn the power on. | |
| The load works all the time. | There is a continuous signal in the region of the detection. | Check the settings of the detection area. |
| The load works when there is no motion signal detected. | The lamp isn't installed well so that sensor fails to detect reliable signals. | Re-adjust the installation place. |
| Moving signal is detected by the sensor (movement behind the wall, the movement of small objects, etc.) | Check the settings of the detection area. | |
| The load fails to work when there is motion signal detected. | The motion speed is too fast or the defined detection area is too small. | Check the settings of the detection area. |
|
1.The LEDS in serial can function when all the seals installed in place.
●Please confirm with profession installation.
|
 |
