PDDT-V01 Microwave Sensor Lamp Holder User Manual

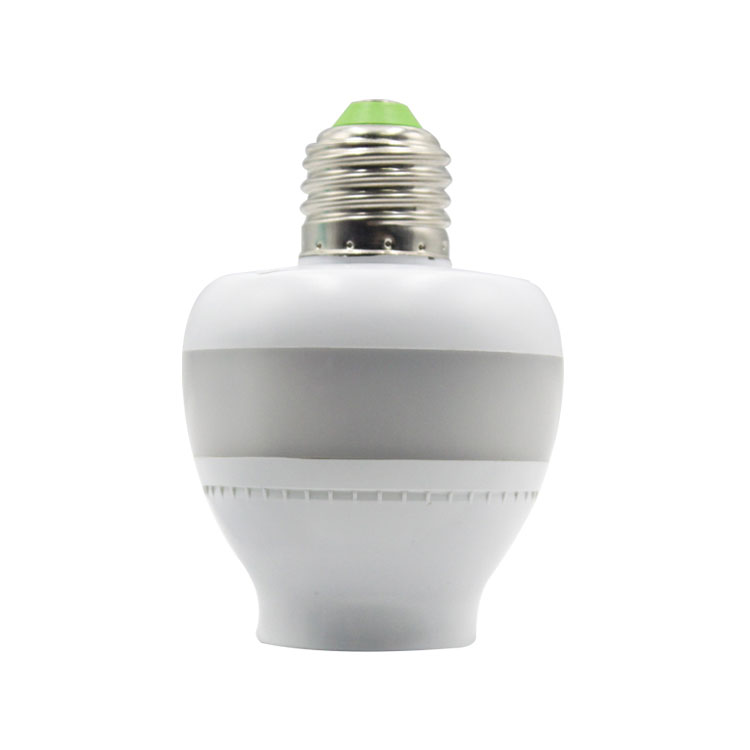

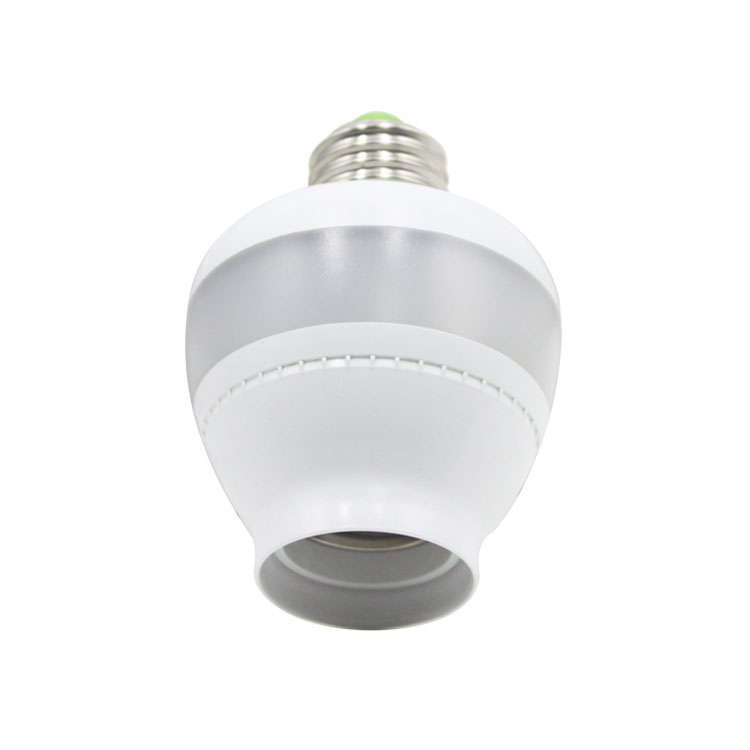

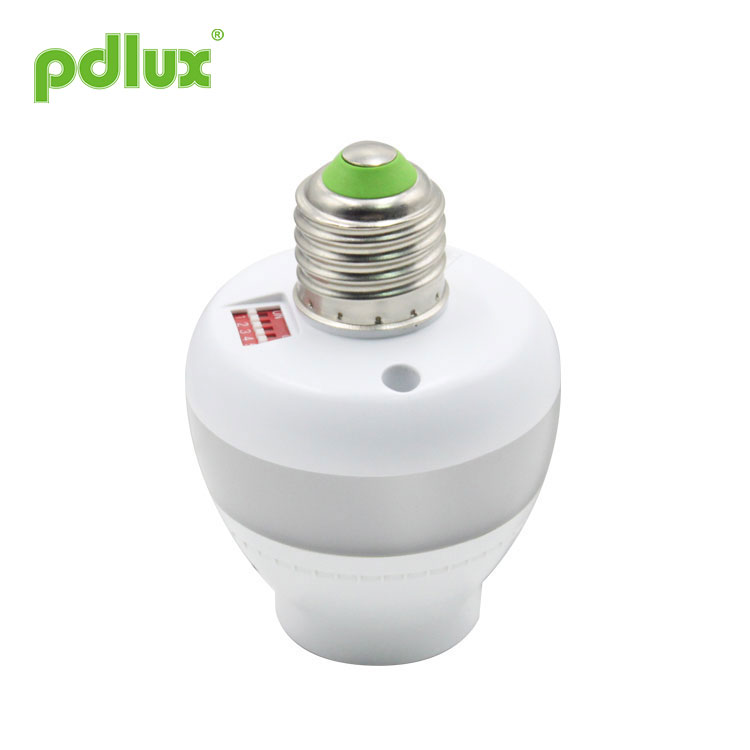

LED Ceiling 360° Detection Microwave Induction Lamp gathering intelligent & multifunction and can detect all-around,energy consumption is lower than 0.5w.In the middle of lamp holder built in 8 pcs high brightness LED. At night when the ambient light is less than 20lux ,built-in 8pcs LED Light will be works.When someone pass by ,the light on the holder will be trigger.(Such as Incandescent lamp,energy-saving lamp and LED Lamp) LED Ceiling 360° Detection Microwave Induction Lamp has multiple patents,product design is unique in the world. The product adopt full range of microwave sensor as body movement detection,will not influenced by environmental temperature,can works under -15℃ to 70℃，at the same time the detect range will not be affected. When the temperature exceed 28 ℃,the sensitivity of the detection of conventional infrared sensors will be greatly reduced.Our product is well solution to the problem,small in size and intelligent & multifunction design is the ideal choice for different application.
1.LED Ceiling 360° Detection Microwave Induction Lamp inner setting 5.8GHz high frequency Microwave detector ,through the detection of the human body signal to determine whether the lamp need to work or not ,and control the load lamp bright 、 destroy automatically.
2.When somebody enters the detection rang ,trigger the sensor and the product work,the load lamp bright; when somebody leave the detection rang ,it will destroy once meet the time-delay.
3.Trigger the sensor light, when meet the time-delay the lamp closed, if there is sensor signal continuity,automatic time stack ,load lamp will last bright.
4.Automatic identification of the external light value ,energy saving .For the details please see below “ Light Control Working Principle”.
Night Light Function: when the ambient light is less than 20lux ,the built-in 8pcs LED lamp will be works!
1.Detect automatically the body motion signals.
2.Anti - radio frequency ability.
3.Discriminate automatically outside light control value.
4.Can adjust the sensing distance and time delay.
5.Can install the various lamps of E27 specifications.
6.Can be used for wall installation, ceiling installation.
Power source: 100-240VAC
Power frequency: 50/60Hz
Rated load: 60W Max. (any load)
LED Rated load: 1W
LED quantity: 8PCS(2835)
HF system: 5.8GHz CW electric wave,ISM band
Detection angle: 360°
Detection range: 2m-4m-6m-8m (radii.) (adjustable)
Time setting: 5sec-1min-3min-8min, (adjustable)
Power consumption: <0.5W
Installation: ceiling mounting, wall mounting
Working temperature: -15°C~+70°C

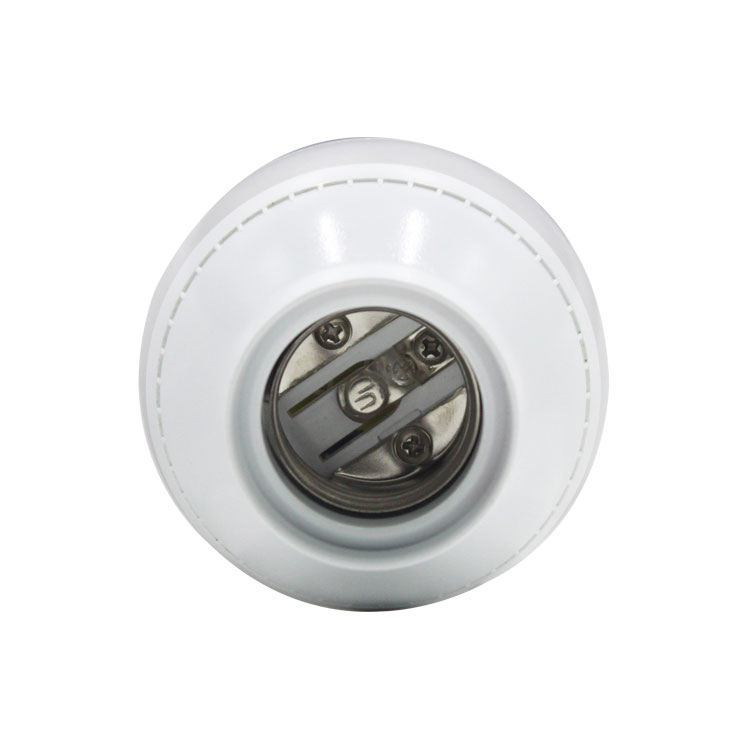

Lamp socket type: E27(Standard)
E27 lamp holder is conform to all kinds of E27 specifications,the load type is Energy-Saving Lights、Incandescent Lights、LED Lights.
①Turn off the power,
push the product lamp clockwise
into the mounting base.
②Install the load fixture to
the product base.
Note: The metallic material will reflect the microwave, so can not install the product in metal products. Otherwise it will not work properly, e.g. installed in the metallic material of the lamp.
●Please confirm with professional installation.
●For safety purposes, please cut off power before installation and removal operations.
●Any losses caused by improper operation,the manufacturer does not undertake any responsibility.
It can be defined from 5 seconds to 8minute. Any movement detected before this time elapse will re-start the timer. It is recommended to select the shortest time for adjusting the detection range and for performing the walk test. To set the switch to ON is “1”, to OFF is “0”. Read through the right shown the corresponding table of the switch position to the delay time.
(2)Detection range setting (sensitivity)
Detection range is the term used to describe the radii of the roughly circle casting on the ground when installed at the height of 2.5 m. To set the switch to ON is “1”, to OFF is “0”. Read through the right shown the corresponding table of the switch position to the detection range.
(3)LED switch setting
To set the switch to ON is “1”, to OFF is “0”, when turn the switch to ON,the brightness less than 20LUX, LED keep on；when turn the switch to OFF, regardless of how bright,LED always keep it off. Switch position and LED switch corresponding to the right table.
1、The metallic material will reflect the microwave, so can not install the product in metal products. Otherwise it will not work properly, e.g. installed in the metallic material of the lamp.
2、Being installed on the rocking object will lead to error reaction.
3、The shaking curtain blown by wind will lead to error reaction. Please select the suitable place to install.
4、Being installed where the traffic is busy will lead to error reaction.
5、The sparks produced by some equipment nearby will lead to error reaction.
Fault and the solution
|The load fails to work.||The load is broken.||Change the load.|
|The power is off.||Turn the power on.|
|The load works all the time.||There is a continuous signal in the region of the detection.||Check the settings of the detection area.|
|The load works when there is no motion signal detected.||The lamp isn't installed well so that sensor fails to detect reliable signals.||Re-adjust the installation place.|
|Moving signal is detected by the sensor (movement behind the wall, the movement of small objects, etc.)||Check the settings of the detection area.|
|The load fails to work when there is motion signal detected.||The motion speed is too fast or the defined detection area is too small.||Check the settings of the detection area.|
