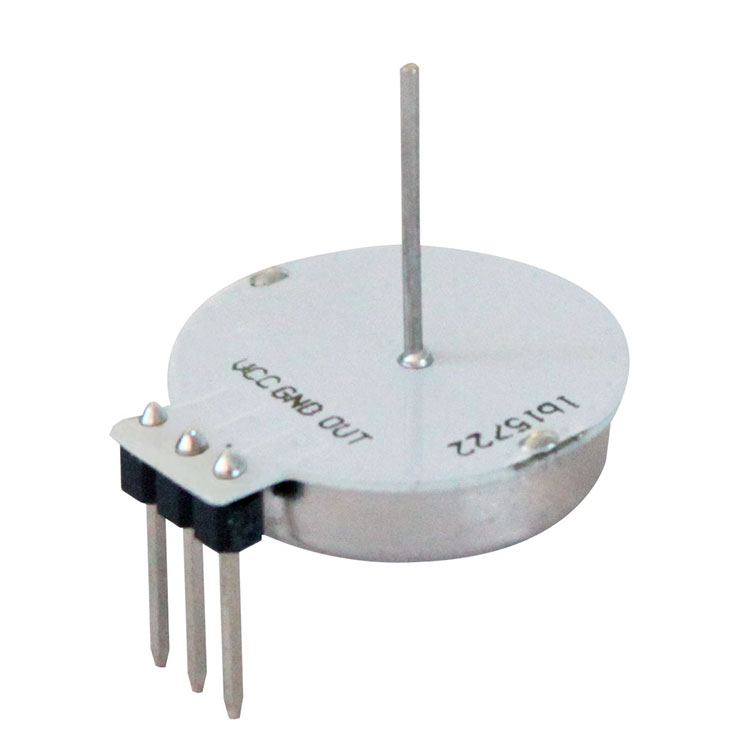

PDLUX PD-V5 5.8GHz Intelligent Switch Doppler Radar Module

PDLUX PD-V5 5.8GHz Intelligent Switch Doppler Radar Module is a C-Band Bi-Static Doppler transceiver modlue .It adopts built-in Resonator Oscillator (CRO) amplificated signal external circuit.More sensitive and lower power consumption than V2。It is convenient for the customers to develop various products. This module is ideally suiable for occupancy sensor in automatic lighting switches.It can also be used for ceiling mount intruder detectors.

Model:PD-V5

Send Inquiry

Product Description

PDLUX PD-V5 5.8GHz Intelligent Switch Doppler Radar Module



Application of PDLUX PD-V5 5.8GHz  Intelligent Switch Doppler Radar Module
● Intelligent switch
● Automatic light
● Intruder detect

Feature and advantage
● Low wireless power output
● Low power consumption
● Non-contact detection
● Easy to match with the external circuit
● High anti-jamming ability
● Suit various harsh environment
● Low noise output

PDLUX PD-V5 5.8GHz  Intelligent Switch Doppler Radar Module is a C-Band Bi-Static Doppler transceiver modlue .It adopts built-in Resonator Oscillator (CRO) amplificated signal external circuit.More sensitive and lower power consumption than V2。It is convenient for the customers to develop various products.
This module is ideally suiable for occupancy sensor in automatic lighting switches.It can also be used for ceiling mount intruder detectors.

According with EN 300440-V2.1.1、EN 62479:2010,RED directive-2014/53/eu
According with FCC Part 15.249
According with EN 62321,ROHS directive-2011/65/eu According with REACH directive-1907/2006/ec


Parameter

Notes

Min

Typ

Max

Units

Frequency Setting

1

5.75

5.80

5.85

GHz

Radiated Power (EIRP)

1

0.18

0.20

0.22

mW

Settling Time



5

10

20

μSec

Received Signal Strength

2

150

200

300

μVp-p

Noise

3

0.5



1.8

mVrms

Supply Voltage



4.75

5.00

5.25

VDC

Current Consumption



12

12.5

13.5

mA

Pulse Repetition Frequency

4

2.0

2.2

3.0

KHz

Pulse Width

4

15

50

70

μSec

Operating Temperature



-15

22

90

Weight



3.5

3.8

4.3

g


Note1: The radiated emissions is designed to meet FCC rules.
Note2:The Received Signal Strength(RSS) is measured at the total 1 Ways path loss of 64dB.
Note3: The noise voltages are measured from 10Hz to 100Hz at the Output port, inside an Anechoic chamber.
Note4: Pulse operation
