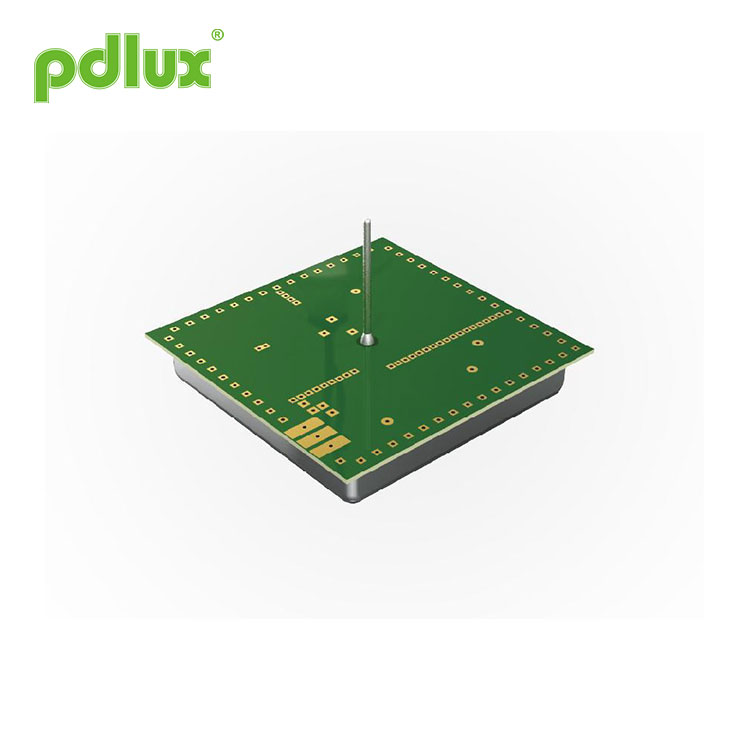

  • PDLUX PD-V1 Ceiling Installation 5.8GHz Microwave Sensor Module - 0 PDLUX PD-V1 Ceiling Installation 5.8GHz Microwave Sensor Module - 0

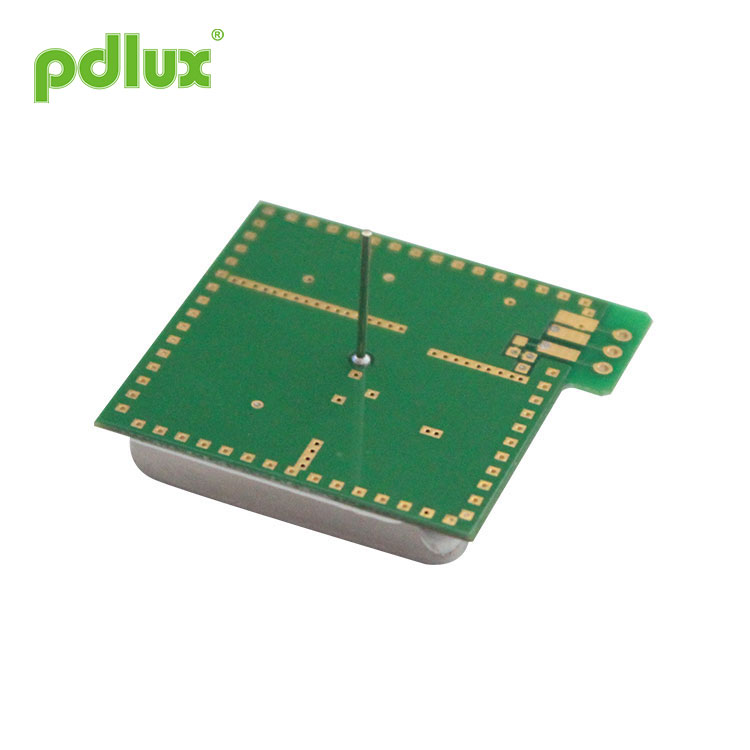

  • PDLUX PD-V1 Ceiling Installation 5.8GHz Microwave Sensor Module - 1 PDLUX PD-V1 Ceiling Installation 5.8GHz Microwave Sensor Module - 1

PDLUX PD-V1 Ceiling Installation 5.8GHz Microwave Sensor Module

PDLUX PD-V1 Ceiling Installation 5.8GHz Microwave Sensor Module is a C-Band Bi-Static Doppler transceiver module .It’s built-in Resonator Oscillator (CRO).This module,which uses the built-in amplifier circuit and directly outputs amplification signal, saves external amplifier circuit, makes signal processing simpler and makes it easier to connect with the controller.

Model:PD-V1

Send Inquiry

Product Description

PDLUX PD-V1 Ceiling Installation 5.8GHz Microwave Sensor Module

Ceiling Installation 5.8GHz Microwave Sensor Module

PDLUX PD-V1 Ceiling Installation 5.8GHz Microwave Sensor Module is a C-Band Bi-Static Doppler transceiver module .It’s built-in Resonator Oscillator (CRO).This module,which uses the built-in amplifier circuit and directly outputs  amplification signal, saves external amplifier circuit, makes signal processing simpler and makes it easier to connect with the controller.
PDLUX PD-V1 Ceiling Installation 5.8GHz Microwave Sensor Module is ideally suitable for occupancy sensor in automatic lighting switches. Ceiling Installation 5.8GHz Microwave Sensor Module can also be used for ceiling mount intruder detectors.


Application of PDLUX PD-V1 Ceiling Installation 5.8GHz Microwave Sensor Module

●Intelligent switch
●Automatic light
●Intruder detect
Feature and advantage

●Low wireless power output
●Low power consumption
●Non-contact detection
●Easy to connect with the controller
●High anti-jamming ability
  Suit various harsh environment
●Low noise output


According with EN 300440-V2.1.1、EN 62479:2010,RED directive-2014/53/eu
According with FCC Part 15.249
According with EN 62321,ROHS directive-2011/65/eu
According with REACH directive-1907/2006/ec


Antenna Beam Pattern(Omni-directional)

Ceiling Installation 5.8GHz Microwave Sensor Module

Products size

Ceiling Installation 5.8GHz Microwave Sensor Module


Parameter Notes Min Typ Max Units
Frequency Setting 1 5.75 5.80 5.85 GHz
Radiated Power (EIRP) 1 0.10 0.12 0.15 mW
Settling Time
5
10 mS
Received Signal Strength 2 150 200 300 μVp-p
Noise 3 100 150 200 mVrms
Supply Voltage
4.75 5.00 5.25 VDC
Current Consumption
18 20 25 mA
Pulse Repetition Frequency 4 2.0 2.2 3.0 KHz
Pulse Width 4 15 50 70 μSec
Operating Temperature
-15 22 75
Weight
6.0 6.5 7.0 g


Note1: The radiated emissions is designed to meet FCC rules.
Note2:The Received Signal Strength(RSS) is measured at the total 1 Ways path loss of 36dB.
Note3: The noise voltages are measured from 10Hz to 100Hz at the Output port, inside an Anechoic chamber.
Note4: Pulse operation
