PDLUX PD-V8 OEM/ODM 5.8GHz Microwave Motion Sensor

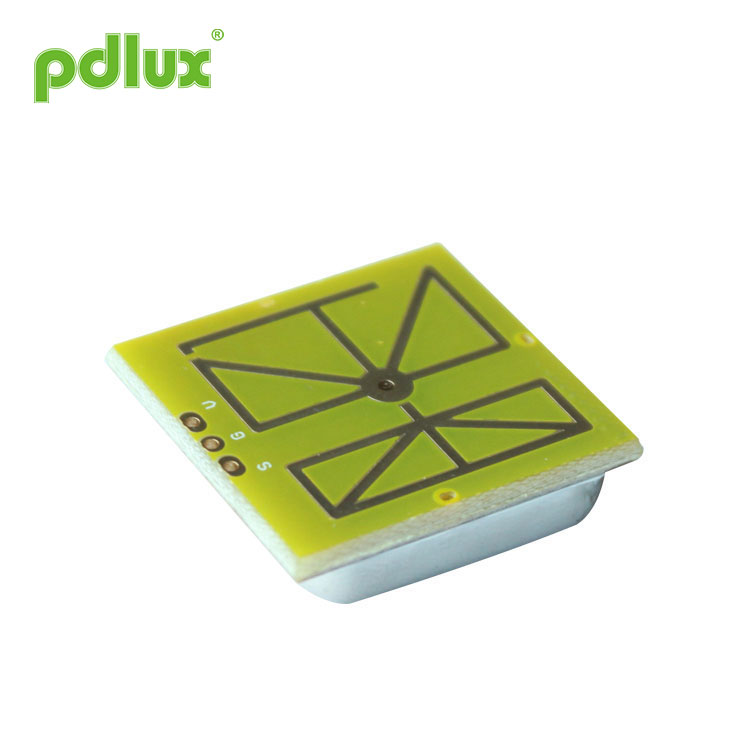

PDLUX PD-V8 OEM/ODM 5.8GHz Microwave Motion Sensor is a C-Band Bi-Static Doppler transceiver modlue .It’s built-in Resonator Oscillator (CRO).This module,V8 adopts flat Plane Antenna, suitable for wall mounting. It can improve its front signal receiving ability and reduce its flank blind area. Its performance is better than the sensors in the market.

Model:PD-V8

Send Inquiry

Product Description

PDLUX PD-V8 OEM/ODM 5.8GHz Microwave Motion Sensor



Application of PDLUX PD-V8 OEM/ODM 5.8GHz Microwave Motion Sensor
● Intelligent switch
● Wall-hung switch
● Intruder detect

Feature and advantage
● Low wireless power output
● Low power consumption
● Non-contact detection
● Easy to connect with the controller
● Low noise output

PDLUX PD-V8 OEM/ODM 5.8GHz Microwave Motion Sensor is a C-Band Bi-Static Doppler transceiver modlue .It’s built-in Resonator Oscillator (CRO).This module,V8 adopts flat Plane Antenna, suitable for wall mounting. It can improve its front signal receiving ability and reduce its flank blind area. Its performance is better than the sensors in the market.

This module is ideally suiable for occupancy sensor in automatic lighting switches.It can also be used for ceiling mount intruder detectors.

According with EN 300440-V2.1.1、EN 62479:2010,RED directive-2014/53/eu
According with FCC Part 15.249
According with EN 62321,ROHS directive-2011/65/eu According with REACH directive-1907/2006/ec


Parameter Notes Min Typ Max Units
Frequency Setting 1 5.75 5.8 5.85 GHz
Radiated Power (EIRP) 1 0.2 0.225 0.25 mW
Settling Time
5 10 20 μSec
Received Signal Strength 2 80 150 180 μVp-p
Noise 3 0.5
1.5 mVrms
Supply Voltage
3 3.3 3.5 VDC
Current Consumption
13 15 17 mA
Pulse Repetition Frequency 4 2 2.2 3 KHz
Pulse Width 4 15 50 70 μSec
Operating Temperature
-30 25 105
Weight
6 6.5 7 g

Note1: The radiated emissions is designed to meet FCC rules.
Note2:The Received Signal Strength(RSS) is measured at the total 1 Ways path loss of 70dB.
Note3: The noise voltages are measured from 10Hz to 100Hz at the Output port, inside an Anechoic chamber.
Note4: Pulse operation
