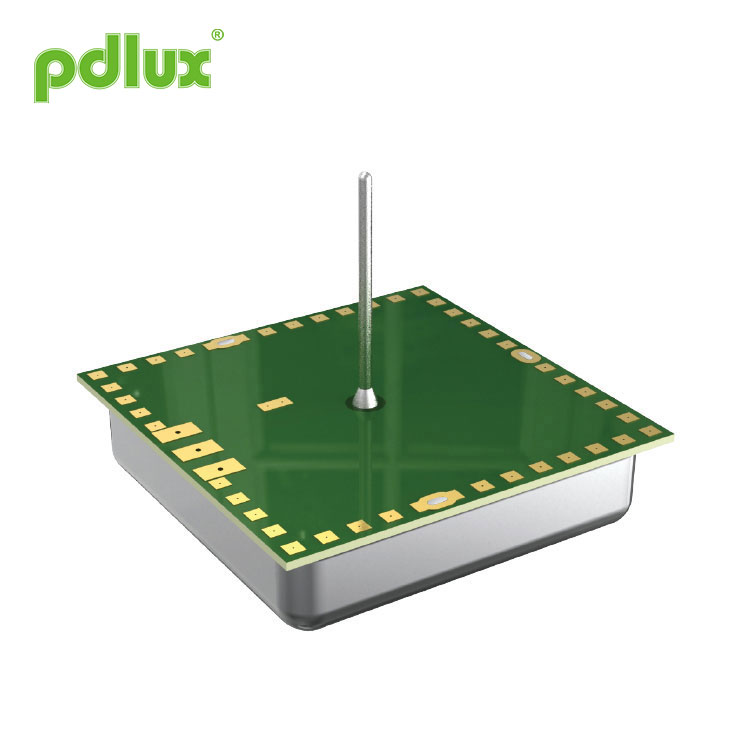

PDLUX PD-V2 5.8GHz Motion Sensor Module

PDLUX PD-V2 5.8GHz Motion Sensor Module is a C-Band Bi-Static Doppler transceiver modlue .It adopts built-in Resonator Oscillator (CRO) amplificated signal external circuit,It is convenient for the customers to develop various products.

Model:PDLUX PD-V2

Send Inquiry

Product Description

PDLUX PD-V2 5.8GHz Motion Sensor Module



Application of PDLUX PD-V2  5.8GHz Motion Sensor  Module
● Intelligent switch
● Automatic light
● Intruder detect

Feature and advantage
● Low wireless power output
● Low power consumption
● Non-contact detection
● Easy to match with the external circuit
● High anti-jamming ability
● Suit various harsh environment
● Low noise output

PDLUX PD-V2  5.8GHz Motion Sensor Module is a C-Band Bi-Static Doppler transceiver modlue .It adopts built-in Resonator Oscillator (CRO) amplificated signal external circuit,It is convenient for the customers to develop various products.
This module is ideally suiable for occupancy sensor in automatic lighting switches.It can also be used for ceiling mount intruder detectors.

According with EN 300440-V2.1.1、EN 62479:2010,RED directive-2014/53/eu
According with FCC Part 15.249
According with EN 62321,ROHS directive-2011/65/eu According with REACH directive-1907/2006/ec


Parameter Notes Min Typ Max Units
Frequency Setting 1 5.75 5.8 5.85 GHz
Radiated Power (EIRP) 1 0.2 0.225 0.25 mW
Settling Time
5 10 20 μSec
Received Signal Strength 2 150 200 300 μVp-p
Noise 3 0.5
2 mVrms
Supply Voltage
4.75 5 5.25 VDC
Current Consumption
18 20 25 mA
Pulse Repetition Frequency 4 2 2.2 3 KHz
Pulse Width 4 15 50 70 μSec
Operating Temperature
-10 22 90
Weight
3.7 4 4.5 g


Note1: The radiated emissions is designed to meet FCC rules.
Note2:The Received Signal Strength(RSS) is measured at the total 1 Ways path loss of 54dB.
Note3: The noise voltages are measured from 10Hz to 100Hz at the Output port, inside an Anechoic chamber.
Note4: Pulse operation
