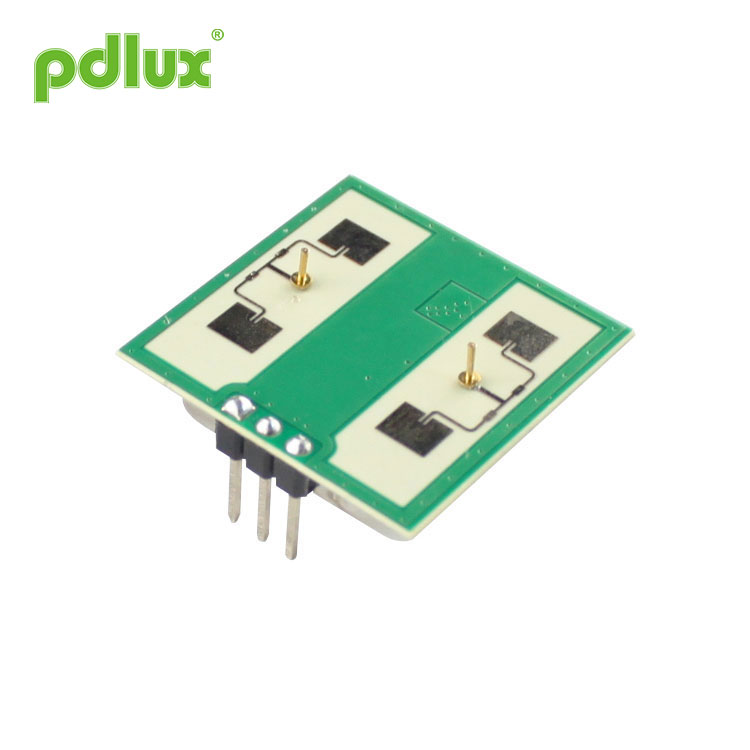

  • PDLUX PD-V21360 24.125GHz Intelligent Sensor Switch Module - 0 PDLUX PD-V21360 24.125GHz Intelligent Sensor Switch Module - 0

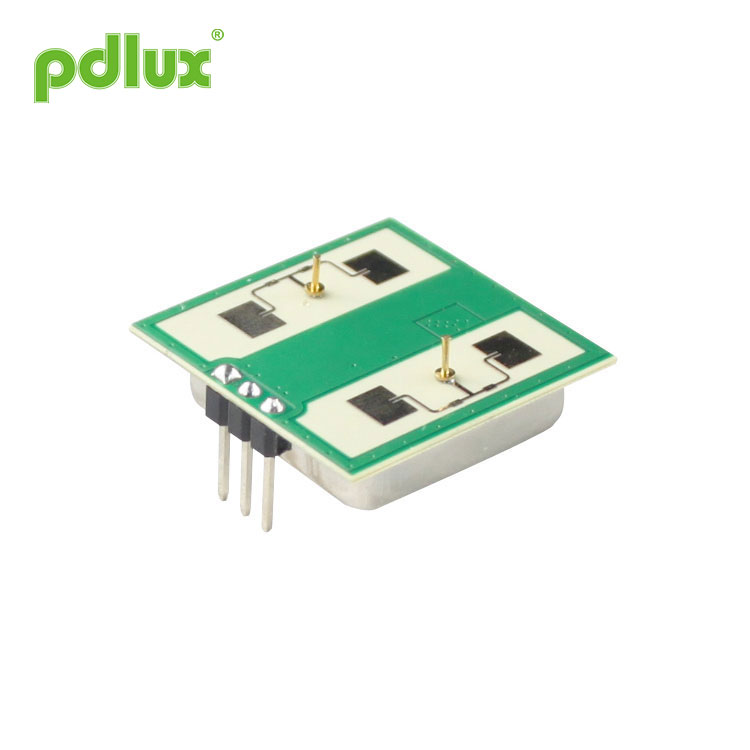

  • PDLUX PD-V21360 24.125GHz Intelligent Sensor Switch Module - 1 PDLUX PD-V21360 24.125GHz Intelligent Sensor Switch Module - 1

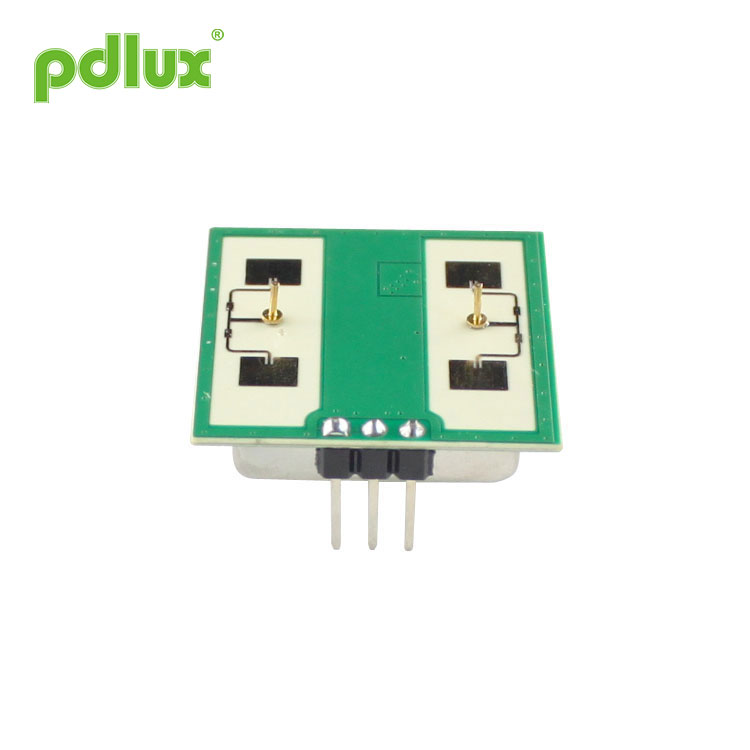

  • PDLUX PD-V21360 24.125GHz Intelligent Sensor Switch Module - 2 PDLUX PD-V21360 24.125GHz Intelligent Sensor Switch Module - 2

PDLUX PD-V21360 24.125GHz Intelligent Sensor Switch Module

PDLUX PD-V21360 24.125GHz Intelligent Sensor Switch Module is a K-Band Bi-Static Doppler transceiver module .It’s built-in Resonator Oscillator (CRO).This module,V21360 adopts flat Plane Antenna, suitable for wall mounting. PDLUX PD-V21360 24.125GHz intelligent sensor switch can improve its front signal receiving ability and reduce its flank blind area. Its performance is better than the sensors in the market.

Model:PDLUX PD-V21360

Send Inquiry

Product Description

PDLUX PD-V21360 24.125GHz Intelligent Sensor Switch


Application of PDLUX PD-V21360 24.125GHz Intelligent Sensor Switch Module
● Intelligent switch
● Wall-hung switch
● Intruder detect

PDLUX PD-V21360 24.125GHz Intelligent Sensor Switch is a K-Band Bi-Static Doppler transceiver modlue .It’s built-in Resonator Oscillator (CRO).This module,V21360 adopts flat Plane Antenna, suitable for wall mounting. It can improve its front signal receiving ability and reduce its flank blind area. Its performance is better than the sensors in the market.

This module is ideally suiable for occupancy sensor in automatic lighting switches.It can also be used for ceiling mount intruder detectors.

According with EN 300440-V2.1.1、EN 62479:2010, RED directive-2014/53/EU
According with FCC Part 15.249
According with EN 62321,ROHS directive - 2011/65/EU According with REACH directive - 1907/2006/EC

Parameter

Notes

Min

Typ

Max

Units

Supply Voltage

Vcc

3.0

5.0

5.25

V

Current Consumption

Icc

20

35

38

mA

Operation Mode

Powered by PWM, it can control the working current at 3-15mA

Pulse Width

Tpulse

10

μs

Operating Temperature

Top

-30~+85+100(Max.)

Storage Temperature

Tstg

-10

+60

Stable Time



<5

μSec

Frequency Setting

f

24.000

24.125

24.250

GHz

Radiated Power (EIRP)

Pout

<2.0

<2.5

<3.0

mW

Storage Ambient Humidity

45%~65%

RH


Note1: The radiated emissions is designed to meet FCC and CE rules.
Note2: The Received Signal Strength(RSS) is measured at the total 1 Ways path loss of 70dB.
Note3: The noise voltages are measured from 10Hz to 100Hz at the Output port, inside an Anechoic chamber.
Note4: Pulse operation
