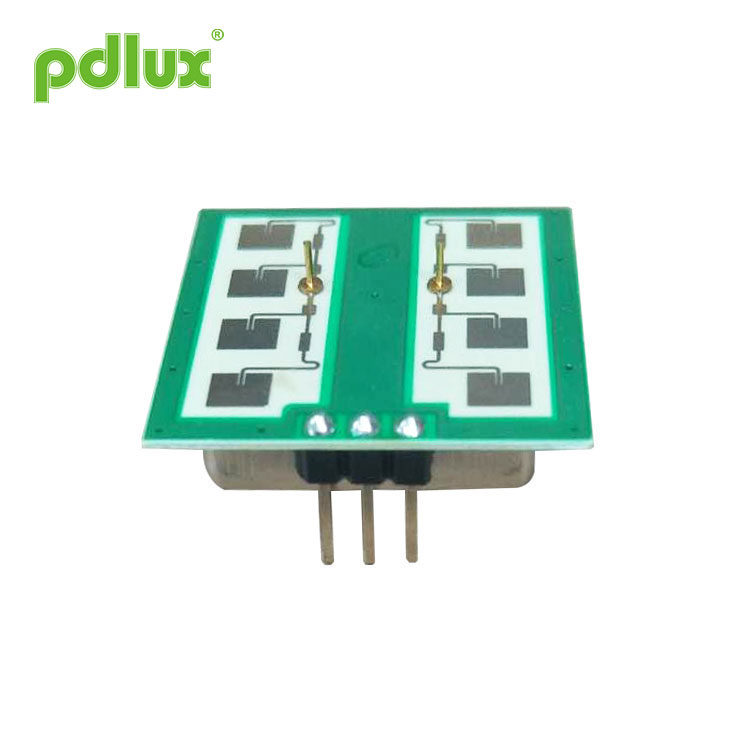

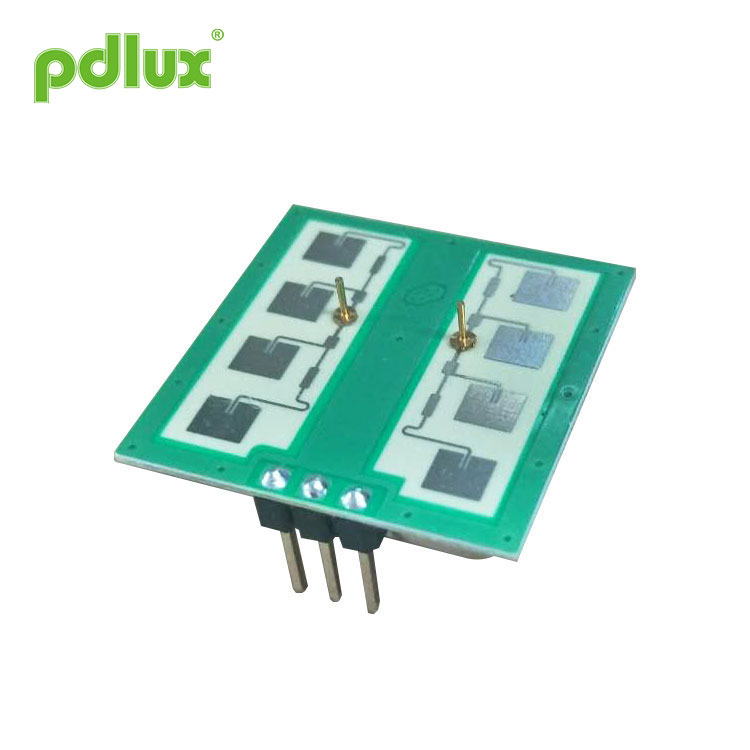

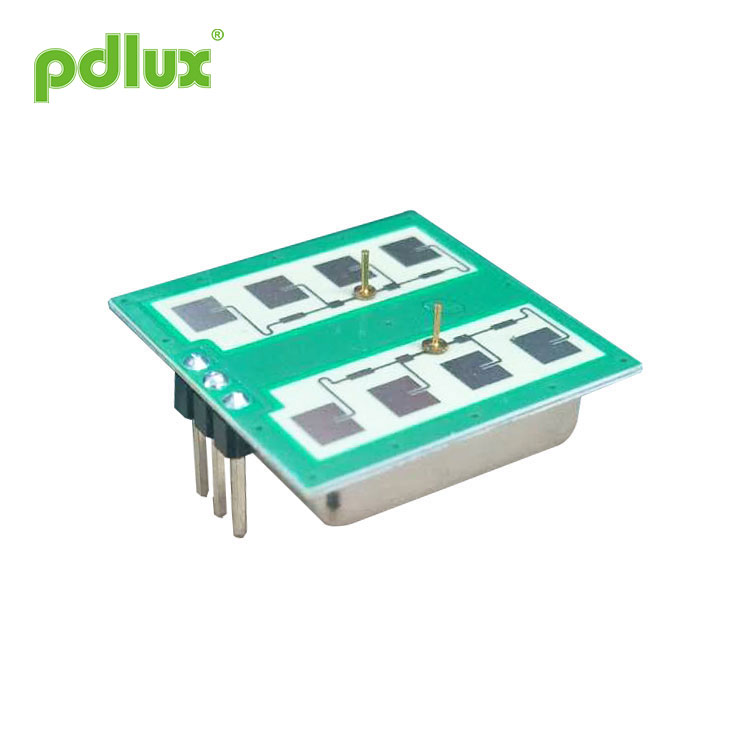

PDLUX PD-V21 24.125GHz Millimeter Wave Radar Sensor is a K-Band Bi-Static Doppler transceiver modlue .It’s built-in Resonator Oscillator (CRO).This module,V21 adopts flat Plane Antenna, suitable for wall mounting. It can improve its front signal receiving ability and reduce its flank blind area. Its performance is better than the sensors in the market.

Model:PD-V21

Send Inquiry

Product Details

PDLUX PD-V21 24.125GHz Millimeter Wave Radar Sensor



Application of PDLUX PD-V21  24.125GHz Millimeter Wave Radar Sensor
● Intelligent switch
● Wall-hung switch
● Intruder detect

PDLUX PD-V21 24.125GHz Millimeter Wave Radar Sensor is a K-Band Bi-Static Doppler transceiver modlue .It’s built-in Resonator Oscillator (CRO).This module,V21 adopts flat Plane Antenna, suitable for wall mounting. It can improve its front signal receiving ability and reduce its flank blind area. Its performance is better than the sensors in the market.

This module is ideally suiable for occupancy sensor in automatic lighting switches.It can also be used for ceiling mount intruder detectors.

According with EN 300440-V2.1.1、EN 62479:2010 RED directive - 2014/53/EU
According with FCC Part 15.249
According with EN 62321,ROHS directive - 2011/65/EU According with REACH directive - 1907/2006/EC

Parameter

Notes

Min

Typ

Max

Units

Supply Voltage

Vcc

3.0

5.0

5.25

V

Current Consumption

Icc

20

35

38

mA

Operation Mode

Powered by PWM, it can control the working current at 3-15mA

Pulse Width

Tpulse

10

μs

Operating Temperature

Top

-30~+85+100(Max.)

Storage Temperature

Tstg

-10

+60

Stable Time



<5

μSec

Frequency Setting

f

24.000

24.125

24.250

GHz

Radiated Power (EIRP)

Pout

<2.0

<2.5

<3.0

mW

Storage Ambient Humidity

45%~65%

RH


WARNING: The actual detection range is related to the signal amplification gain of the circuit, the overall layout of the PCBA and the threshold of the MCU.

Note1: The radiated emissions is designed to meet FCC rules.
Note2: The Received Signal Strength(RSS) is measured at the total 1 Ways path loss of 70dB.
Note3: The noise voltages are measured from 10Hz to 100Hz at the Output port, inside an Anechoic chamber.
Note4: Pulse operation
