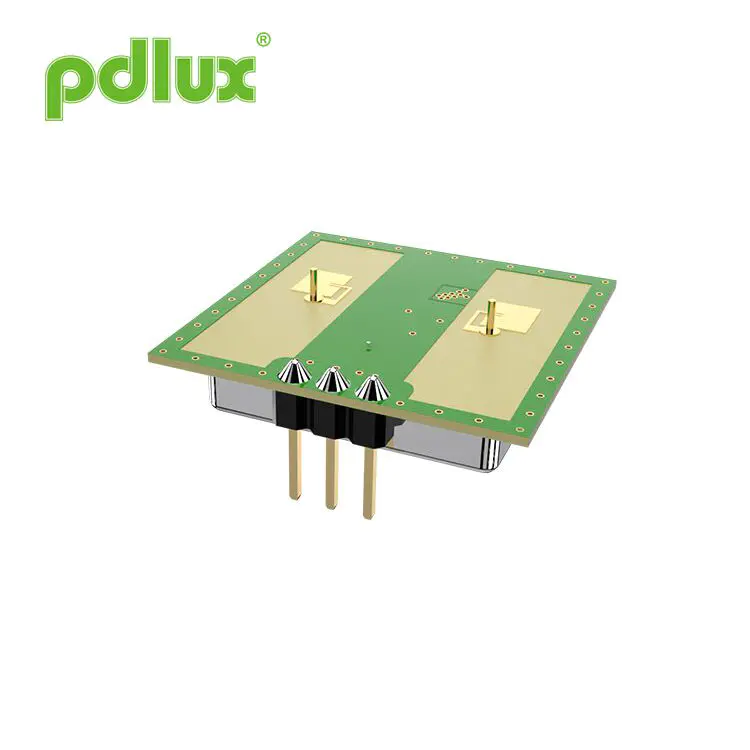

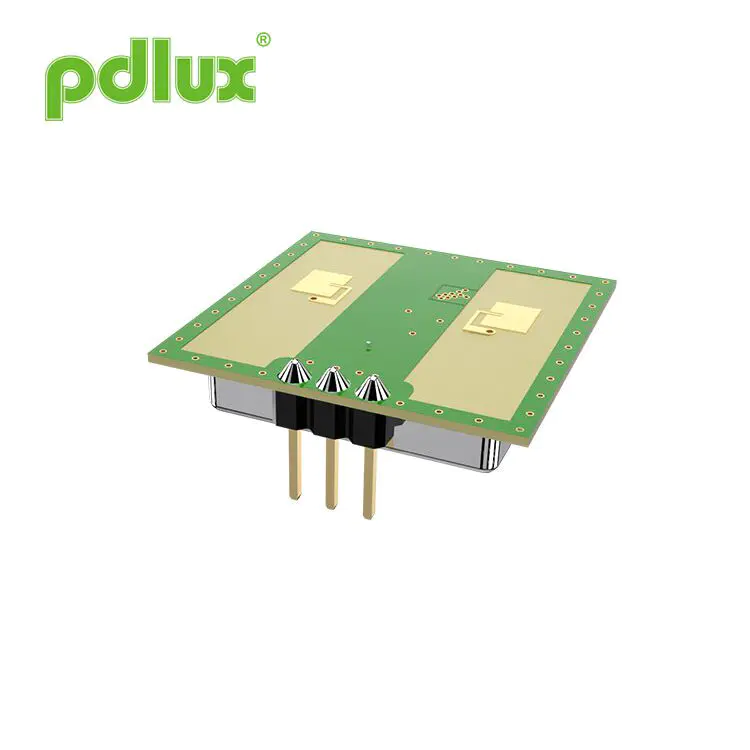

PDLUX PD-V12360A/B K-Band High-Sensitivity Motion Sensor for Smart Switch & Security

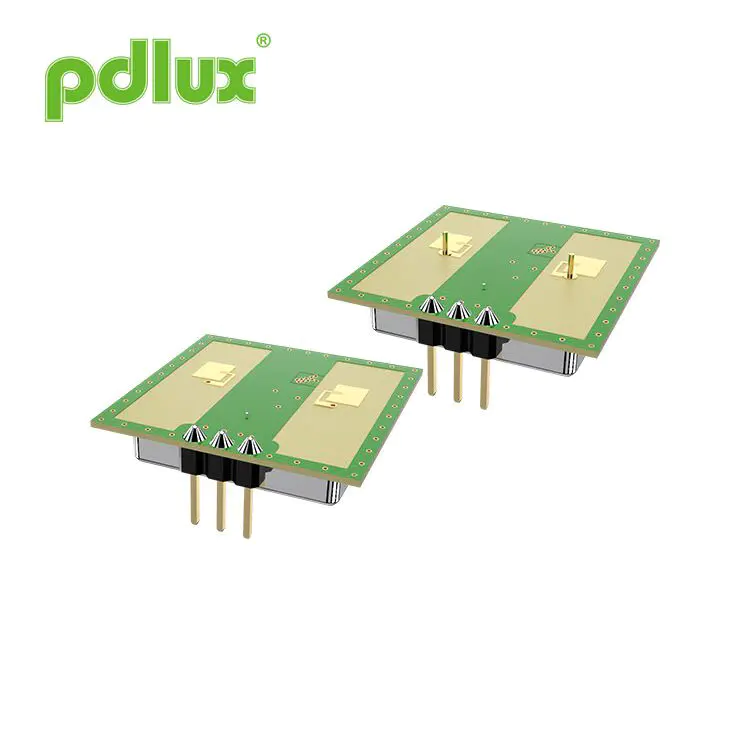

PDLUX PD-V12360A/B K-Band High-Sensitivity Motion Sensor for Smart Switch & Security is a patented high-sensitivity sensor developed by the technical team of PDLUX for K-band 360 degree detection. This includes V12360A and V12360B. The performance difference between A and B lies in the different detection radii.
Model:PD-V12360A/B
Send Inquiry
Product Details
PD-V12360A/B 24.125GHz Microwave Motion Sensor
Application
.Intelligent switch
.Wall-hung switch
.Intruder detect

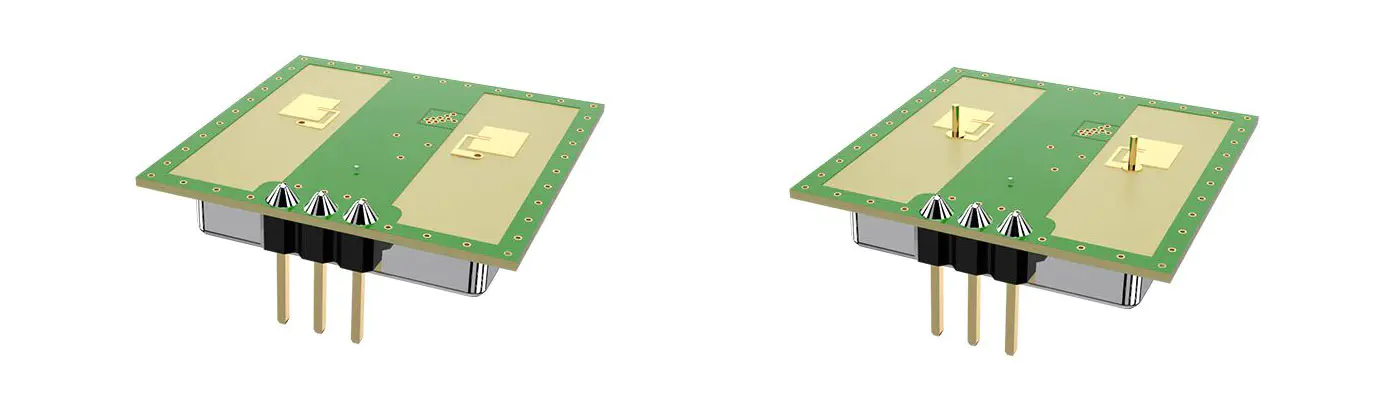

The PD-V12360 series sensor is a patented high-sensitivity sensor developed by the technical team of PDLUX for K-band 360 degree detection. This PDLUX PD-V12360A/B K-Band High-Sensitivity Motion Sensor for Smart Switch & Security includes V12360A and V12360B. The performance difference between A and B lies in the different detection radii. When installed at a low height, the detection angle of V12360A is larger than that of V12360B. The 360 degree detection angle of V12360A is 120 degrees (please refer to the figure below), which can be used for installing products with a height less than 5 meters. The 360 degree detection angle of V12360B is 80 degrees, which can be used for installing products with a height of less than 10 meters. (Please refer to the following image). The extension of its detection sensitivity depends on the signal-to-noise ratio of the amplification circuit designed by the user and the program algorithm of the MCU. Due to the wide and flexible application range of this type of analog sensor. It is still widely used.

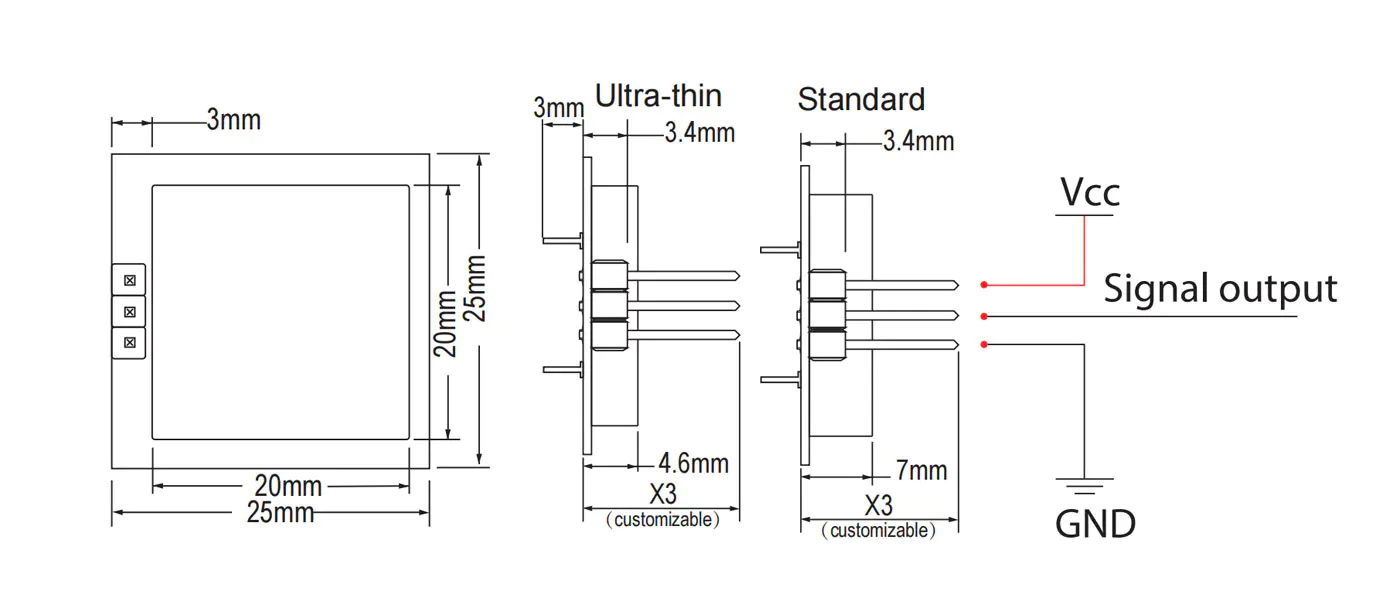

Products size

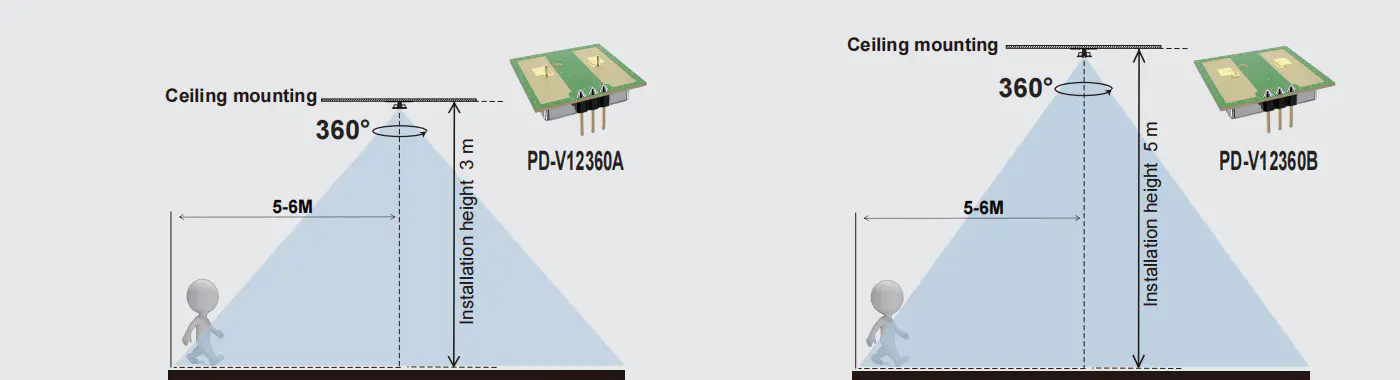

Detection range
Technical Parameters
| Parameter | Notes | Min | Typ | Max | Units |
| Supply Voltage | Vcc | 3.0 | 5.0 | 5.25 | V |
| Current Consumption | Icc | 20 | 35 | 38 | mA |
| Operation Mode | Powered by PWM, it can control the working current at 3-15mA | ||||
| Pulse Width | Tpulse | 10 | μs | ||
| Operating Temperature | Top | -30~+85 | ℃ | ||
| Storage Temperature | Tstg | -10 | +60 | ℃ | |
| Stable Time |
|
<5 | μSec | ||
| Noise |
|
3.5 | 4.0 | 4.5 | mVrms |
| Frequency Setting | f | 24.000 | 24.125 | 24.250 | GHz |
| Radiated Power (EIRP) | Pout | <2.0 | <2.5 | <3.0 | mW |
| Storage Ambient Humidity | 45%~65% | RH | |||
WARNING: The actual detection range is related to the signal amplification gain of the circuit, the overall layout of the PCBA and the threshold of the MCU.
Note1: The radiated emissions is designed to meet FCC and CE rules.
Note2: The Received Signal Strength(RSS) is measured at the total 1 Ways path loss of 70dB.
Note3: The noise voltages are measured from 10Hz to 100Hz at the Output port, inside an Anechoic chamber. Note4: Pulse operation
Special reminder
Due to the total thickness of the circuit board being only 0.52mm. Applying excessive lateral force to the pins may cause the copper foil to break. Causing sensor malfunction.
