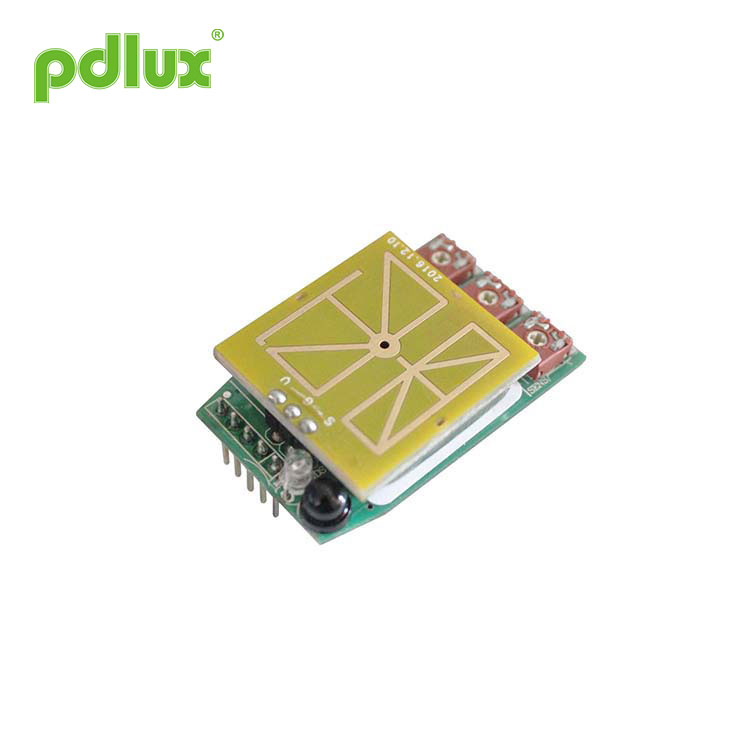

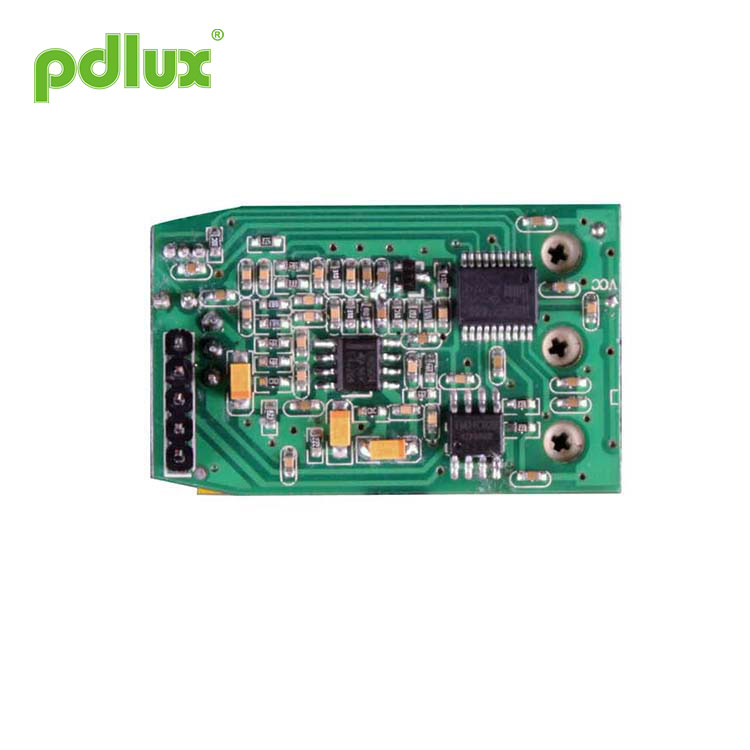

PDLUX PD-S16-V1 5.8GHz Microwave Sensor+MCU+IR Receiver
PDLUX PD-S16-V1 5.8GHz Microwave Sensor+MCU+IR Receiver is a complete sensing front-end control module composed of 360-degree 5.8GHz microwave sensor, photosensitive sensor, signal amplifier circuit, MCU and remote control receiver circuit. Three potentiometers can adjust the detection sensitivity, delay time, and illuminance range. The output control signal can directly control the relay circuit, the start pin of the switching power supply, and other control circuits. It is convenient for the secondary development of different users and the installation of shells with different structures.
Model:PD-S16-V1
Send Inquiry
Product Details
Summary
PDLUX PD-S16-V1 5.8GHz Microwave Sensor+MCU+IR Receiver is a complete sensing front-end control module composed of 360-degree 5.8GHz microwave sensor, photosensitive sensor, signal amplifier circuit, MCU and remote control receiver circuit. Three potentiometers can adjust the detection sensitivity, delay time, and illuminance range. The output control signal can directly control the relay circuit, the start pin of the switching power supply, and other control circuits. It is convenient for the secondary development of different users and the installation of shells with different structures.
Specifications of PDLUX PD-S16-V1 5.8GHz Microwave Sensor+MCU+IR Receiver
|
Power source: DC5V Working current: <30mA Microwave sensor working frequency: 5.8GHz Working temperature: -15°C~+70°C Time setting: 10sec-20min. (adjustable)Light-control: 10-300LUX, all light (adjustable) |
Detection angle: 360° (ceiling installation), 180°(wall installation) Detection range: 2-10m (radii.) (adjustable). (ceiling installation) Vertical movement detection distance: >20m Detection speed: 0.5m-1.5m/sAppearance size: 42.6mm (length) X 26mm (width) X 9.4mm (height) |
Sensor information
Function of PDLUX PD-S16-V1 5.8GHz Microwave Sensor+MCU+IR Receiver
Pin Dunction Description：
|
Number |
Pin Name |
Input / Output |
Explanation |
|
1 |
NC |
|
NON |
|
2 |
NC |
|
NON |
|
3 |
Output |
Output |
High level signal output 10sec-20min (adjustable) |
|
4 |
+5V |
Input |
Power positive |
|
5 |
GND |
Input |
Power negative |

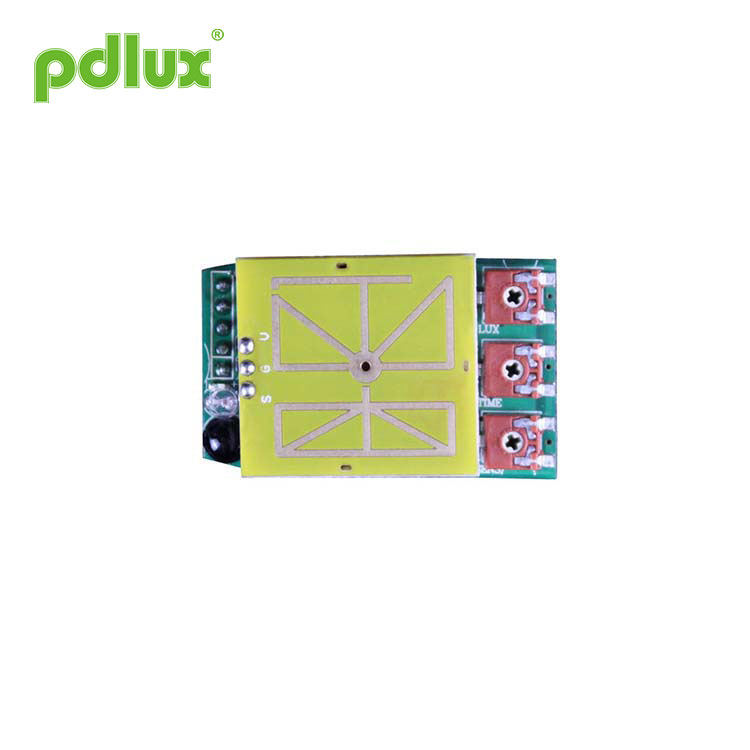

Knob adjustment of PDLUX PD-S16-V1 5.8GHz Microwave Sensor+MCU+IR Receiver
(1)Detection range setting (sensitivity)
The user can reasonably choose the position of the potentiometer according to the needs of the detection range.
(2)Time setting
Users can choose the appropriate delay time according to different use environments and different product definitions.
(3)Light-control setting
The working illuminance value can choose a suitable position in the range of 10~300LUX and all light.
