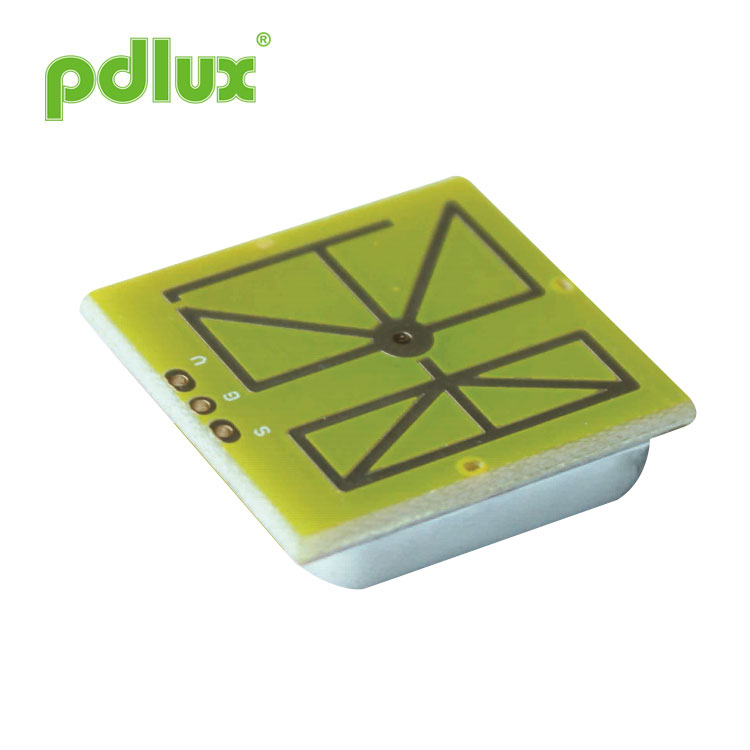

PD-V8 Ceiling Installation Microwave Sensor 5.8GHz
PD-V8 Ceiling Installation Microwave Sensor 5.8GHz. The antenna part is our company invented a high-resolution planar omni-directional transceiver antenna and obtained a patent. It has much higher resolution and detection sensitivity than conventional planar antennas, and has the characteristics of high signal-to-noise ratio and low power consumption. If equipped with a low-noise amplifier circuit, the front detection distance may reach 40 meters (a sufficiently stable amplifier circuit and software algorithm are required).
Model:PD-V8
Send Inquiry
Product Details
PD-V8 5.8GHz 360º/180º Microwave Motion Sensor
Application
Intelligent switch
Wall-hung switch
Intruder detect
Low wireless power output
Low power consumption
Non-contact detection
Easy to connect with the controller
Low noise output
Intelligent switch
Wall-hung switch
Intruder detect
Low wireless power output
Low power consumption
Non-contact detection
Easy to connect with the controller
Low noise output
PD-V8 Ceiling Installation Microwave Sensor 5.8GHz. The antenna part is our company invented a high-resolution planar omni-directional
transceiver antenna and obtained a patent. It has much higher resolution and detection sensitivity than conventional planar antennas, and has the characteristics of high signal-to-noise ratio and low power consumption. If equipped with a low-noise amplifier circuit, the front detection distance may reach 40 meters (a sufficiently stable amplifier circuit and software algorithm are required).
Due to the many advantages of PD-V8 performance, it is widely used in security, smart home, automatic sensor lights and other fields. And suitable for the use of wall-mounted and ceiling-mounted motion detector products.
Due to the many advantages of PD-V8 performance, it is widely used in security, smart home, automatic sensor lights and other fields. And suitable for the use of wall-mounted and ceiling-mounted motion detector products.
According with EN 300440、EN 62479
RED directive - 2014/53/EU
According with FCC Part 15.245
According with EN 62321,ROHS directive - 2011/65/EU
According with REACH directive - 1907/2006/EC
RED directive - 2014/53/EU
According with FCC Part 15.245
According with EN 62321,ROHS directive - 2011/65/EU
According with REACH directive - 1907/2006/EC
Products size
Technical Parameters
| Parameter | Notes | Min | Typ | Max | Units |
| Frequency Setting | 1 | 5.75 | 5.80 | 5.85 | GHz |
| Radiated Power (EIRP) | 1 | 0.20 | 0.225 | 0.25 | mW |
| Received Signal Strength | 2 | 80 | 150 | 180 | μVp-p |
| Noise | 3 | 0.5 | 1.5 | mVrms | |
| Supply Voltage | 4.75 | 5.00 | 5.25 | V | |
| Current Consumption |
|
13 | 15 | 17 | mA |
| Operating Temperature |
|
-30 | 25 | 105 | ℃ |
| Weight |
|
6.0 | 6.5 | 7.0 | g |
Note1: The radiated emissions is designed to meet FCC and CE rules.
Note2: The Received Signal Strength(RSS) is measured at the total 1 Ways path loss of 70dB.
Note3: The noise voltages are measured from 10Hz to 100Hz at the Output port, inside an Anechoic chamber.
