PD-V6 High-Frequency Microwave Motion Detection

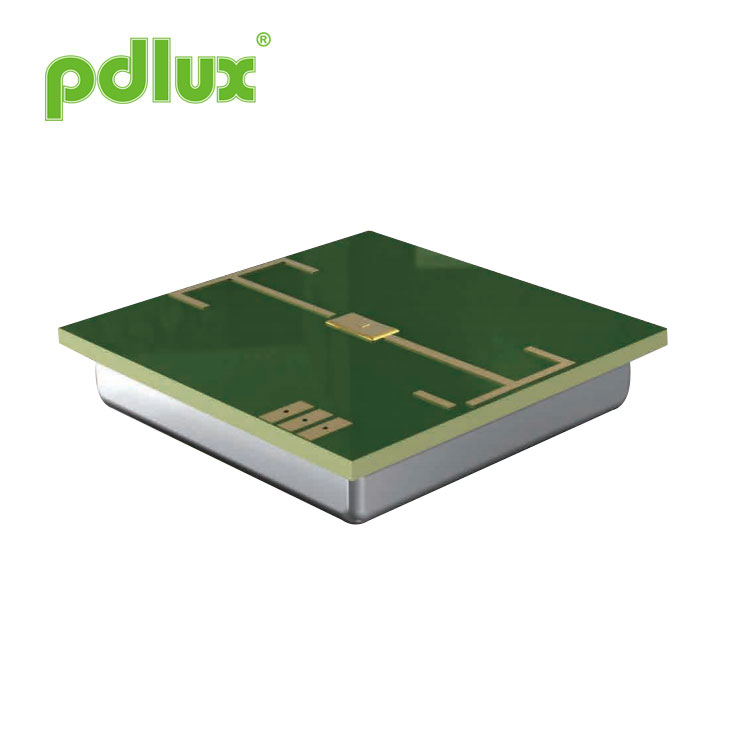

PD-V6 High-Frequency Microwave Motion Detection is a C-Band Bi-Static Doppler transceiver modlue .It’s built-in Resonator Oscillator (CRO).This module，which uses the built-in amplifier circuit and directly outputs amplification signal, V6 adopts flat Plane Antenna, suitable for wall mounting. It can improve its front signal receiving ability and reduce its flank blind area. Its performance is better than the sensors in the market.
Model:PD-V6
Send Inquiry
Product Details
PD-V6 180° 5.8GHz Microwave Motion Sensor
Application
Intelligent switch
Wall-hung switch
Automatic light
Intruder detect
Small volume
Low wireless power output
Low power consumption
Non-contact detection
Easy to connect with the controller
Low noise output
Intelligent switch
Wall-hung switch
Automatic light
Intruder detect
Small volume
Low wireless power output
Low power consumption
Non-contact detection
Easy to connect with the controller
Low noise output
PD-V6 High-Frequency Microwave Motion Detection is a C-Band Bi-Static Doppler transceiver modlue .It’s built-in Resonator Oscillator (CRO).This module，which uses the built-in amplifier circuit and directly outputs amplification signal, V6 adopts flat Plane Antenna, suitable for wall mounting. It can improve its front signal receiving ability and reduce its flank blind area. Its performance is better than the sensors in the market.
This module is ideally suiable for occupancy sensor in automatic lighting switches.It can also be used for ceiling mount intruder detectors.
This module is ideally suiable for occupancy sensor in automatic lighting switches.It can also be used for ceiling mount intruder detectors.
According with EN 300440、EN 62479
RED directive - 2014/53/EU
According with FCC Part 15.249
According with EN 62321,ROHS directive - 2011/65/EU
AAccording with REACH directive - 1907/2006/EC
RED directive - 2014/53/EU
According with FCC Part 15.249
According with EN 62321,ROHS directive - 2011/65/EU
AAccording with REACH directive - 1907/2006/EC
Products size
Technical Parameters
| Parameter | Notes | Min | Typ | Max | Units |
| Frequency Setting | 1 | 5.75 | 5.80 | 5.85 | GHz |
| Radiated Power (EIRP) | 1 | 0.10 | 0.12 | 0.15 | mW |
| Received Signal Strength | 2 | 100 | 150 | 200 | μVp-p |
| Noise | 3 | 80 | 150 | 180 | mVrms |
| Supply Voltage | 4.75 | 5.00 | 5.25 | V | |
| Current Consumption |
|
18 | 20 | 23 | mA |
| Operating Temperature |
|
-30 | 25 | 105 | ℃ |
| Weight |
|
9.5 | 10 | 10.5 | g |
Note1: The radiated emissions is designed to meet FCC and CE rules.
Note2: The Received Signal Strength(RSS) is measured at the total 1 Ways path loss of 70dB.
Note3: The noise voltages are measured from 10Hz to 100Hz at the Output port, inside an Anechoic chamber.
