PD-V5-N 360° 5.8GHz Microwave Motion Sensor
PD-V5-N 360° 5.8GHz Microwave Motion Sensor is a C-Band Bi-Static Doppler transceiver modlue .It adopts built-in Resonator Oscillator (CRO) amplificated signal external circuit,It is convenient for the customers to develop various products.
Model:PD-V5-N
Send Inquiry
Product Details

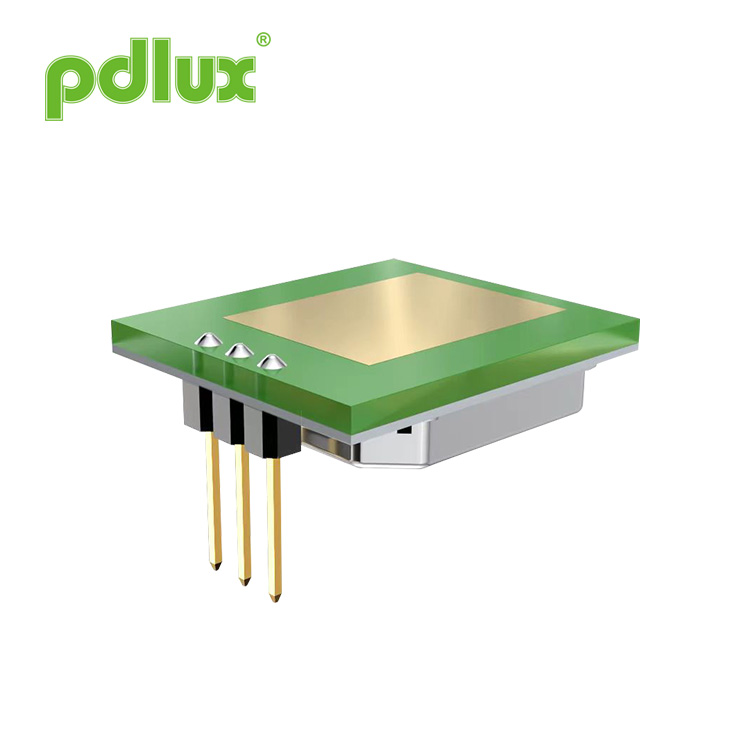

PD-V5-N 360° 5.8GHz Microwave Motion Sensor
WARNING: The actual detection range is related to the signal amplification gain of the circuit, the overall layout of the PCBA and the threshold of the MCU.
Note1: The radiated emissions is designed to meet FCC and CE rules.
Note2: The Received Signal Strength(RSS) is measured at the total 1 Ways path loss of 64dB.
Application
Intelligent switch
Automatic light
Intruder detect
Low wireless power output
Low power consumption
Non-contact detection
Easy to match with the external circuit
High anti-jamming ability Suit various harsh environment
Low noise output
Intelligent switch
Automatic light
Intruder detect
Low wireless power output
Low power consumption
Non-contact detection
Easy to match with the external circuit
High anti-jamming ability Suit various harsh environment
Low noise output
PD-V5-N 360° 5.8GHz Microwave Motion Sensor is a C-Band Bi-Static
Doppler transceiver modlue .It adopts built-in Resonator Oscillator (CRO)
amplificated signal external circuit,It is convenient for the customers to
develop various products.
This module is ideally suiable for occupancy sensor in automatic lighting switches.It can also be used for ceiling mount intruder detectors.
This module is ideally suiable for occupancy sensor in automatic lighting switches.It can also be used for ceiling mount intruder detectors.
According with EN 300440、EN 62479
RED directive - 2014/53/EU
According with FCC Part 15.249
According with EN 62321,ROHS directive - 2011/65/EU
According with REACH directive - 1907/2006/EC
RED directive - 2014/53/EU
According with FCC Part 15.249
According with EN 62321,ROHS directive - 2011/65/EU
According with REACH directive - 1907/2006/EC
Products size
Reference circuits
Reference circuits
Technical Parameters
| Parameter | Notes | Min | Typ | Max | Units |
| Supply Voltage |
|
4.75 | 5.00 | 5.25 | V |
| 2.85 | 3.00 | 3.15 | |||
| Frequency Setting | 1 | 5.75 | 5.80 | 5.85 | GHz |
| Radiated Power (EIRP) | 1 | 0.18 | 0.20 | 0.22 | mW |
| Received Signal Strength | 2 | 150 | 200 | 300 | μVp-p |
| Current Consumption |
|
18.5 | 19 | 19.5 | mA |
| Operating Temperature |
|
-30 | 25 | 105 | ℃ |
WARNING: The actual detection range is related to the signal amplification gain of the circuit, the overall layout of the PCBA and the threshold of the MCU.
Note1: The radiated emissions is designed to meet FCC and CE rules.
Note2: The Received Signal Strength(RSS) is measured at the total 1 Ways path loss of 64dB.
