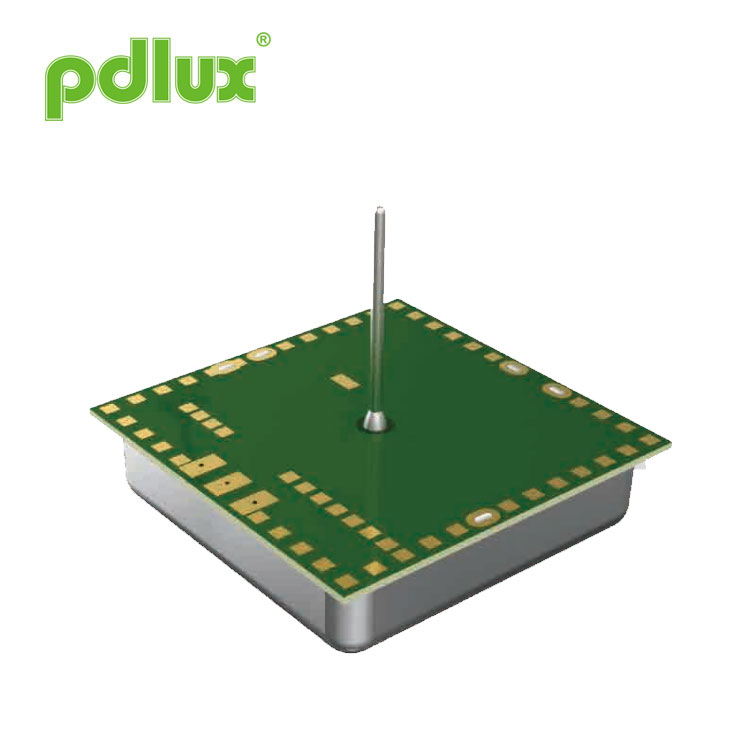

PD-V2 Motion Sensor Module 5.8GHz
PD-V2 Motion Sensor Module 5.8GHz is a C-Band Bi-Static Doppler transceiver modlue .It adopts built-in Resonator Oscillator (CRO) amplificated signal external circuit,It is convenient for the customers to develop various products.
Model:PD-V2
Send Inquiry
Product Details
PD-V2 360° 5.8GHz Microwave Motion Sensor
Application
Intelligent switch
Automatic light
Intruder detect
Low wireless power output
Low power consumption
Non-contact detection
Easy to connect with the controller
High anti-jamming ability Suit various harsh environment
Low noise output
Intelligent switch
Automatic light
Intruder detect
Low wireless power output
Low power consumption
Non-contact detection
Easy to connect with the controller
High anti-jamming ability Suit various harsh environment
Low noise output
PD-V2 Motion Sensor Module 5.8GHz is a C-Band Bi-Static Doppler transceiver modlue .It adopts built-in Resonator Oscillator (CRO)
amplificated signal external circuit,It is convenient for the customers to develop various products.
This module is ideally suiable for occupancy sensor in automatic lighting switches.It can also be used for ceiling mount intruder detectors.
This module is ideally suiable for occupancy sensor in automatic lighting switches.It can also be used for ceiling mount intruder detectors.
According with EN 300440、EN 62479
RED directive - 2014/53/EU
According with FCC Part 15.249
According with EN 62321,ROHS directive - 2011/65/EU
According with REACH directive - 1907/2006/EC
RED directive - 2014/53/EU
According with FCC Part 15.249
According with EN 62321,ROHS directive - 2011/65/EU
According with REACH directive - 1907/2006/EC
Products size
Technical Parameters
| Parameter | Notes | Min | Typ | Max | Units |
| Frequency Setting | 1 | 5.75 | 5.80 | 5.85 | GHz |
| Radiated Power (EIRP) | 1 | 0.20 | 0.225 | 0.25 | mW |
| Received Signal Strength | 2 | 150 | 200 | 300 | μVp-p |
| Noise | 3 | 0.5 | 2 | mVrms | |
| Supply Voltage | 4.75 | 5.00 | 5.25 | V | |
| Current Consumption |
|
18 | 20 | 25 | mA |
| Operating Temperature |
|
-30 | 25 | 105 | ℃ |
| Weight |
|
3.7 | 4.0 | 4.5 | g |
Note1: The radiated emissions is designed to meet FCC and CE rules.
Note2: The Received Signal Strength(RSS) is measured at the total 1 Ways path loss of 54dB.
Note3: The noise voltages are measured from 10Hz to 100Hz at the Output port, inside an Anechoic chamber.
