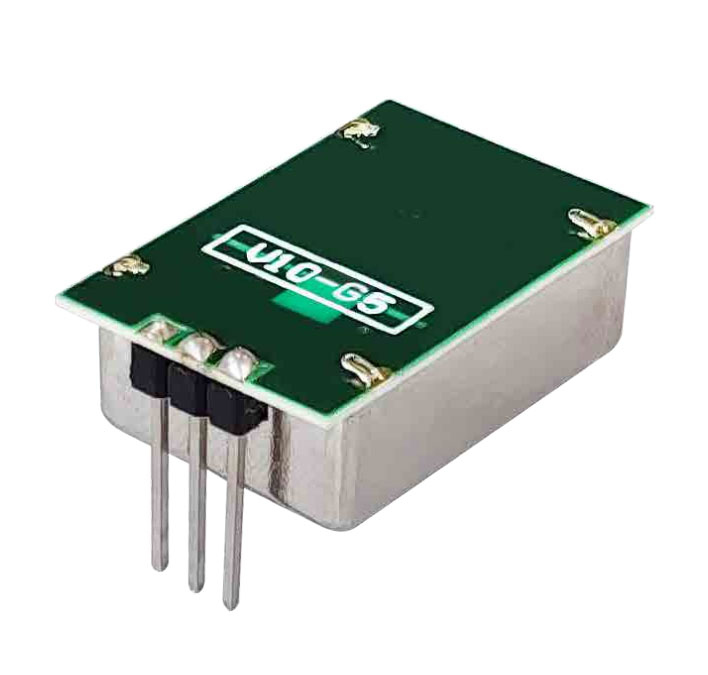

PD-V10-G5 Miniature X-Band Microwave Transceiver Motion Detector Unit
Made in-house at Pdlux's factory in China, we are a recognized PD-V10-G5 Miniature X-Band Microwave Transceiver Motion Detector Unit manufacturer and supplier, meticulously monitoring every step of production to ensure quality and clear pricing, providing our customers with cost-effective solutions.
Send Inquiry
Product Details

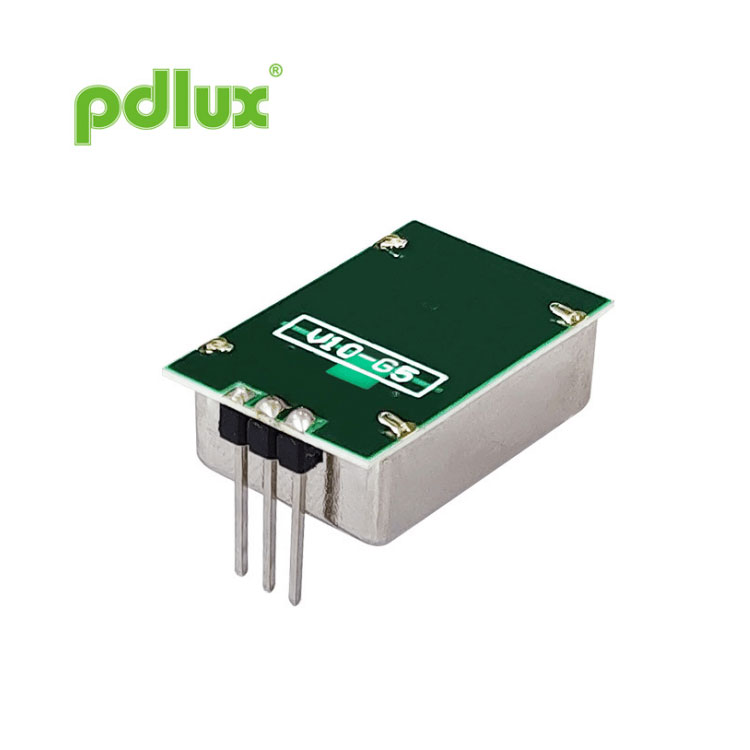

The unit, housed in a metal can, features a dielectric resonator stabilised oscillator, which provides stable operation over a broad temperature range in either CW or low duty cycle pulse mode and an integrated homodyne receiver for enhanced sensitivity and reliability.
This module family is available with either a +5v or +3v supply voltage.
The basic principle of operation consists of detecting the frequency shift between a transmitted and a received signal
reflected back from a moving object within the field of view of the unit.
The unit produces a low level output signal which can be amplified and processed to provide an audible or visual alarm
signal and employs low cost surface mount manufacturing techniques which are field proven as being rugged and
reliable.
| Part NO. | Country | Frequency | Comments |
| PD-V10-501 | UK | 10.587 GHz (5V) | |
| PD-V10-502 | USA | 10.525 GHz (5V) | FCC-ID |
| PD-V10-502 | Belgium, Holland, Italy | 10.525 GHz (5V) | Meets RED Directive |
| PD-V10-301 | UK | 10.587 GHz (3V) | |
| PD-V10-302 | Belgium, Holland, Italy | 10.525 GHz (3V) | Meets RED Directive |
| Frequency | See table over |
| Power Output (Min.) | 5 dBm EIRP |
| Operating Voltage |
+5 V ± 0.25 V +3 V ± 0.15 V |
| Operating Current (CW) |
25mA (max) 20mA (typ) |
| Harmonic Emissions | <-30dBm |
| Average Current (5% DC) | 1 mA typ. |
| Pulse Width (Min.) | 5 µsecs |
| Duty Cycle (Min) | 1% |
| Pulse Repetition Frequency | 2-4 KHz |
| Sensitivity (for a 10 dB S/N ratio) | -84 dBm |
| Noise (measured in a 3Hz to 80Hz bandwidth) | < 30 µV |
| Gain | 5 dBi |

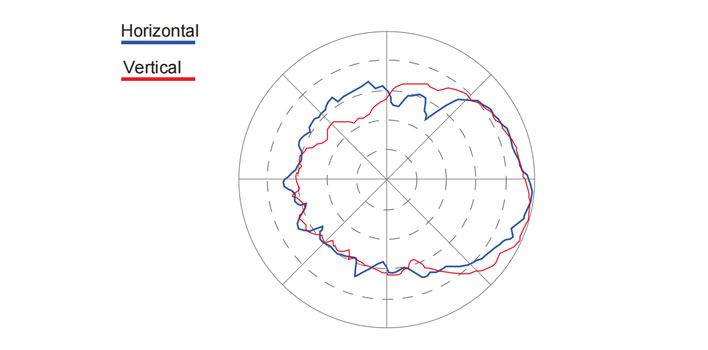

| -3 dB Beamwidth | |
| E Plane | 50° |
| H Plane | 60° |
| Weight | 4 g |

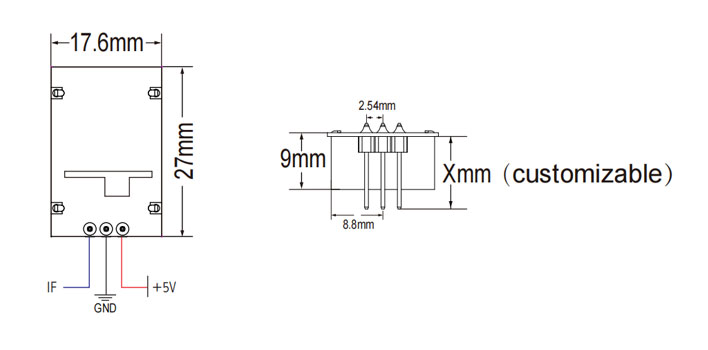

| Pin header connectors | 2.54mm spacing X3 |
| RoHS Compliant | |
| Power/Temp. Coefficient (over operating temp. range) | 3 dB |
| Frequency/Temp. Coefficient (over operating temp. range) | 6.5 MHz |
| Operating Temperature | -20° C to +70° C |
The strength of the sensor's output （detection range）depends on the Signal to Noise Ratio. Higher or lower than the nominal operating temperature, the sensor can also work, but the performance will be reduced. To avoid damage to the devices, care should be exercised during handling. Proper Electrostatic Discharge (ESD) precautions should be observed at all stages of storage, handling, assembly, and testing.
