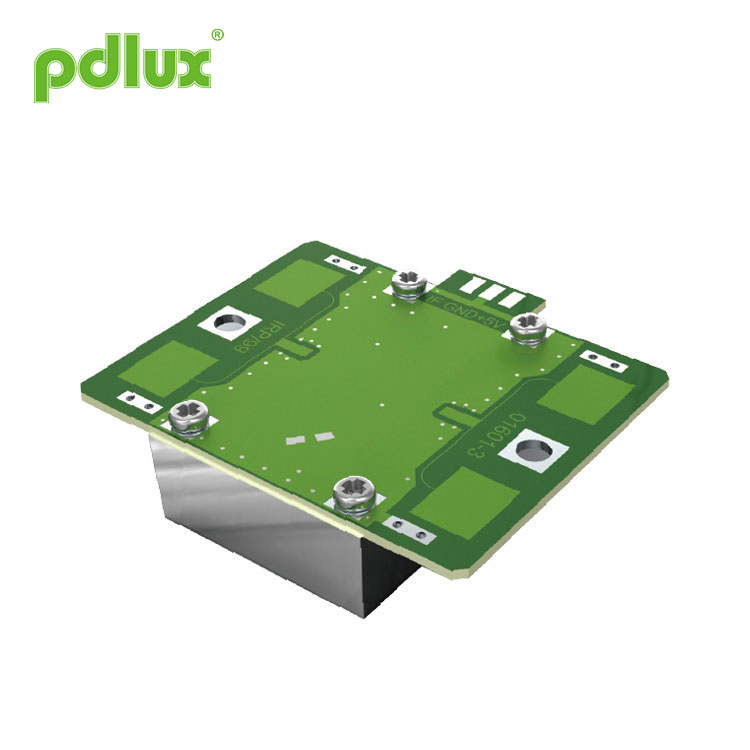

PDLUX PD-V9 Automatic Door 10.525GHz Microwave Sensor Module
PDLUX PD-V9 Automatic Door 10.525GHz Microwave Sensor Module is a X-Band Bi-Static Doppler transceiver module. It’s built-in Resonator Oscillator (CRO).This module,V9 adopts flat Plane Antenna, suitable for wall mounting. Automatic Door 10.525GHz Microwave Sensor Module can improve its front signal receiving ability and reduce its flank blind area. Its performance is better than the sensors in the market.
PDLUX PD-V9 Automatic Door 10.525GHz Microwave Sensor Module is ideally suitable for occupancy sensor in automatic lighting switches. Automatic Door 10.525GHz Microwave Sensor Module can also be used for ceiling mount intruder detectors.
Application of PDLUX PD-V9 Automatic Door 10.525GHz Microwave Sensor Module
Feature and advantage
●Low wireless power output
According with EN 300440-V2.1.1、EN 62479：2010,RED directive-2014/53/eu
According with FCC Part 15.249
Antenna Beam Pattern
|Radiated Power (EIRP)||1||2.0||2.5||3.0||mW|
|Received Signal Strength||2||150||200||250||μVp-p|
||4.75||5.00||5.25||V (impulse power source)|
|Pulse Repetition Frequency||4||1.8||2.0||3.0||KHz|
Note1: The radiated emissions is designed to meet FCC rules.
Note2:The Received Signal Strength(RSS) is measured at the total 1 Ways path loss of 70dB.
Note3: The noise voltages are measured from 10Hz to 100Hz at the Output port, inside an Anechoic chamber.
Note4: Pulse operation
