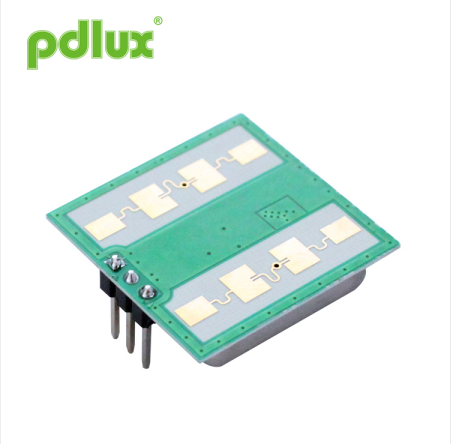

OEM/ODM 24.125 GHz Microwave Doppler Sensor CDM324 is a K-Band Bi-Static Doppler transceiver modlue .It’s built-in Resonator Oscillator (CRO).This module,V11 adopts flat Plane Antenna, suitable for wall mounting. It can improve its front signal receiving ability and reduce its flank blind area. Its performance is better than the sensors in the market.

Model:PD-V11

Send Inquiry

Product Description

OEM/ODM 24.125 GHz Microwave Doppler Sensor CDM324


Application of OEM/ODM 24.125 GHz Microwave Doppler Sensor CDM324
● Intelligent switch
● Wall-hung switch
● Intruder detect


OEM/ODM 24.125 GHz Microwave Doppler Sensor CDM324 is a K-Band Bi-Static Doppler transceiver modlue .It’s built-in Resonator Oscillator (CRO).This module,V11 adopts flat Plane Antenna, suitable for wall mounting. It can improve its front signal receiving ability and reduce its flank blind area. Its performance is better than the sensors in the market.


This module is ideally suiable for occupancy sensor in automatic lighting switches.It can also be used for ceiling mount intruder detectors.

According with EN 300440-V2.1.1、EN 62479:2010,RED directive-2014/53/eu
According with FCC Part 15.249
According with EN 62321,ROHS directive-2011/65/eu According with REACH directive-1907/2006/ec



Parameter

Notes

Min

Typ

Max

Units

Frequency Setting

1

24.050

24.125

24.250

GHz

Radiated Power (EIRP)

1

2.0

2.5

3.0

mW

Settling Time



5

10

20

μSec

Received Signal Strength

2

150

200

250

μVp-p

Noise

3

4.0

4.5

5.0

mVrms

Supply Voltage



4.75

5.0

5.25

VDC

VCO



0.5



2

V

Current Consumption



25

35

45

mA

Pulse Repetition Frequency

4

1.8

2.0

3.0

KHz

Pulse Width

4

10

20

30

μSec

Operating Temperature



-20

25

60

Weight



3.7

4.1

4.5

g


Note1: The radiated emissions is designed to meet FCC rules.
Note2:The Received Signal Strength(RSS) is measured at the total 1 Ways path loss of 70dB.
Note3: The noise voltages are measured from 10Hz to 100Hz at the Output port, inside an Anechoic chamber.
Note4: Pulse operation
