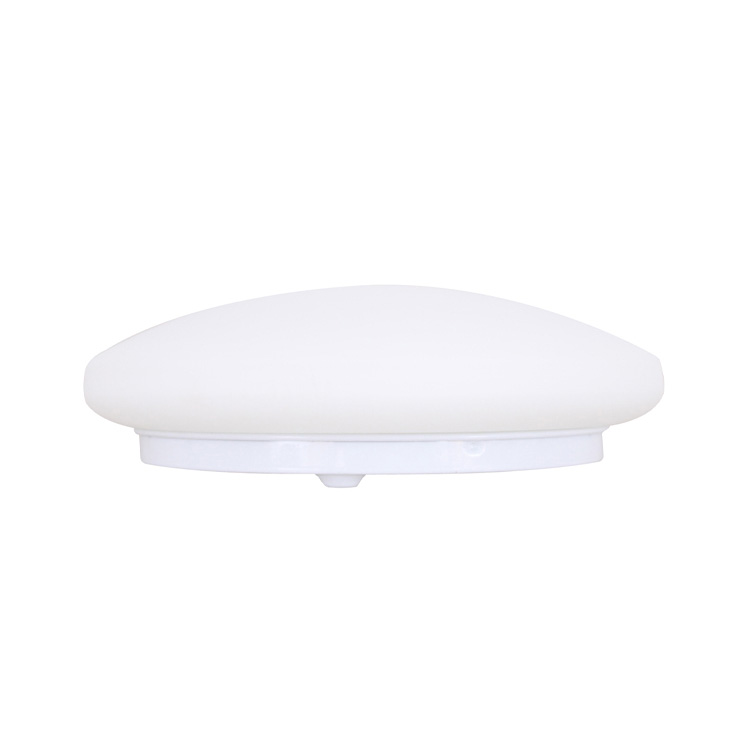

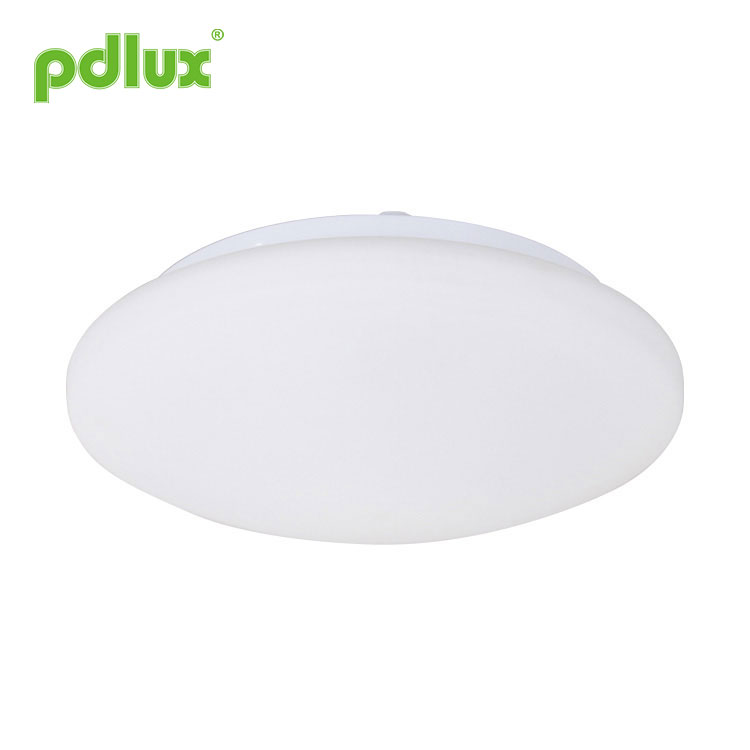

LED Microwave Sensor Ceiling Light
As a professional LED Microwave Sensor Ceiling Light manufacture, you can rest assured to buy LED Microwave Sensor Ceiling Light from our factory and we will offer you the best after-sale service and timely delivery.
Model:PD-LED2044MDS
Send Inquiry
Product Details
Microwave Sensor Light Instruction
PD-LED2044MDS
Product size
About the “ L’ ” :
Our lamp have synchronization function ,
also can call them "master and servant" function.
"Master" is with sensor's lamp ,"Servant" is without sensor's lamp"
When the "Master" lamp turn on ,the "Servant" will follow turn on .
When the "Master" lamp turn off ,the "Servant" will follow turn off .
If you need this function ,connecting method is that :
N is for master and servant(N parallel), L is for master ,L'is for servant .
Summary
This is a microwave sensor switches controlled LED lights,the microwave sensor was built into the light ,it has 84pcs high brightness LEDs inside ,with total power of 25 watts. When light on, the luminous flux will be more than 1300 lm, 60 watt incandescent lamp(≈400lm) and the life exceeds 50,000 hours. We adopt this sensitive advanced sensor switchs in lighting control, enabling the light to turn on automatically when one comes , automatically turn off when one goes out In addition to the widely usage in the aisle stairs ,living room and bedrooms , it also can be installed in the bathroom.
Specification
Power source: 100-250V/AC
Power frequency: 50/60Hz
Rated load: 25W Max.
HF system: 5.8GHz CW electric wave,
ISM wave band
Transmission power: <0.2mW
Time setting: 8sec to 12min (adjustable)
Detection range: 1-8m (radii.)(adjustable)
Light-control: 10-1000LUX(adjustable)
Standby power: <0.5W
Detection angle: 360°
Luminous flux: 1300lm
Installation height: 2.5-4.5m
(ceiling mount)
Working temperature: -10°C~+55°C
Lamp part
LED quanlity: 84PCS
LED specifications: 2835
Fault and the solution
| Fault | Failure cause | Solution |
| The load fails to work. | Light-illumination is set incorrectly. | Adjust the setting of the load. |
| The load is broken. | Change the load. | |
| The power is off. | Turn the power on. | |
| The load works all the time. | There is a continuous signal in the region of the detection. | Check the settings of the detection area. |
| The load works when there is no motion signal detected. | The lamp isn't installed well so that sensor fails to detect reliable signals. | Re-adjust the installation place. |
| Moving signal is detected by the sensor (movement behind the wall, the movement of small objects, etc.) | Check the settings of the detection area. | |
| The load fails to work when there is motion signal detected. | The motion speed is too fast or the defined detection area is too small. | Check the settings of the detection area. |
1.The LEDS in serial can function when all the seals installed in place.
2.Please don’t remove or connect with other lamp when powered on.
3.When the LEDS in serial are damaged ,you need experienced technician to repair using the same rating LEDS.
●Please confirm with profession installation.
●Please cut off power supply before installation and removal operations.
●Make sure that you have cut off the power for safety purposes.
●Improper operation caused losses, the manufacturer does not undertake any responsibility
