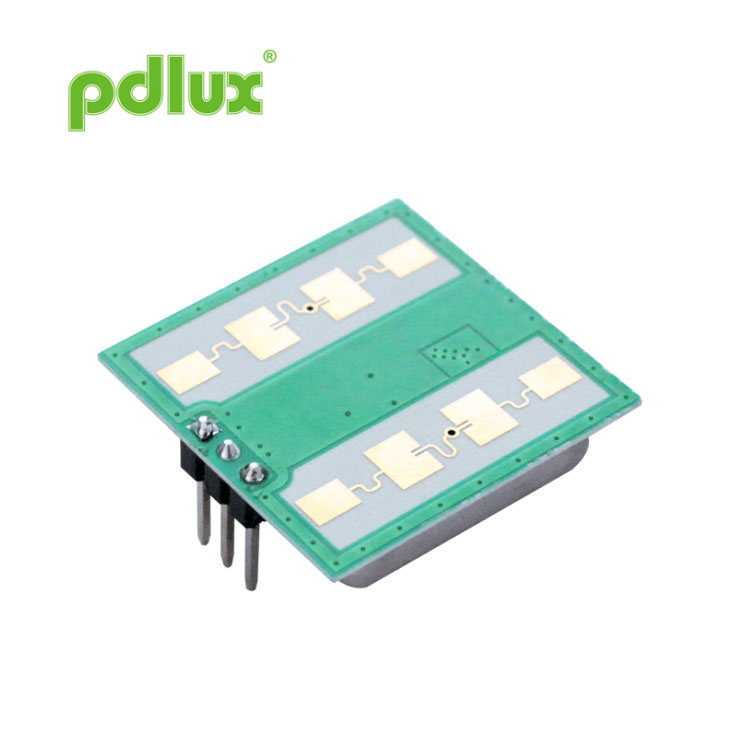

PD-V11 24.125GHz Microwave Motion Sensor
Application
Intelligent switch
Wall-hung switch
Intruder detect
Intelligent switch
Wall-hung switch
Intruder detect
The microwave motion sensor of PD-V11 24.125 GHz is K-band doppler
transceiver module. This is a flat antenna of our own design develop a layout
with well-matched transmissions and receptions.
We recalculated and rearranged the internal layout to make it more meaningful. Make the main frequency of the sensor is more stable. These are our a's design patents a wider range of ambient temperatures.
V11-H has lower noise, higher resolution and higher sensitivity. Built-in anti-static function. Compared with traditional similar products, the performance is more stable and reliable.
V11-M and V11-L are different sensitivities that can be customized to the user's needs.
This series of sensor modules is ideal for automatic lighting. Security domain behavior intrusion detection sensor.
We recalculated and rearranged the internal layout to make it more meaningful. Make the main frequency of the sensor is more stable. These are our a's design patents a wider range of ambient temperatures.
V11-H has lower noise, higher resolution and higher sensitivity. Built-in anti-static function. Compared with traditional similar products, the performance is more stable and reliable.
V11-M and V11-L are different sensitivities that can be customized to the user's needs.
This series of sensor modules is ideal for automatic lighting. Security domain behavior intrusion detection sensor.
According with EN 300440、EN 62479
RED directive - 2014/53/EU
According with FCC Part 15.249
According with EN 62321,ROHS directive - 2011/65/EU
According with REACH directive - 1907/2006/EC
RED directive - 2014/53/EU
According with FCC Part 15.249
According with EN 62321,ROHS directive - 2011/65/EU
According with REACH directive - 1907/2006/EC

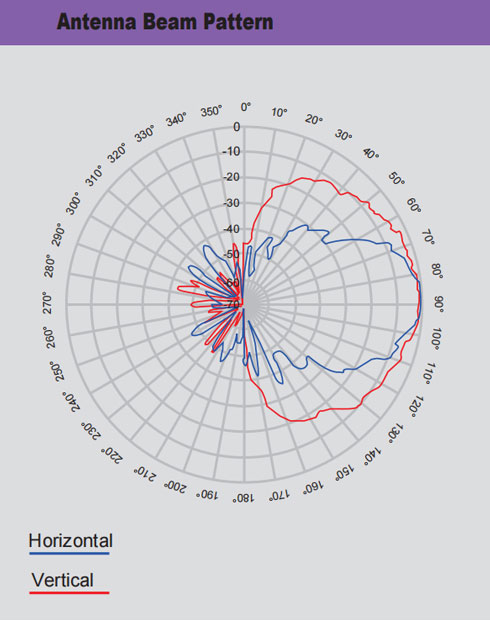

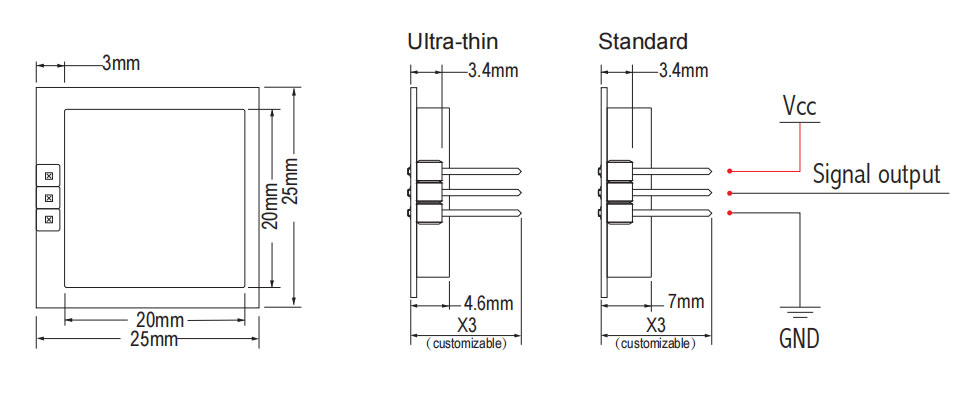

Products size
Technical Parameters
| Parameter | Notes | Min | Typ | Max | Units |
| Supply Voltage | Vcc | 3.0 | 5.0 | 5.25 | V |
| Current Consumption | lcc | 20 | 35 | 38 | mA |
| Operation Mode | Powered by PWM,it can control the working current at 3-15mA | ||||
| Pulse Width | Tpulse | 10 | μs | ||
| Operating Temperature | Top | -30~+85 +100(Max.) | ℃ | ||
| Storage Temperature | Tstg | -10 | +60 | ℃ | |
| Stable Time |
|
<5 |
|
μSec | |
| Frequency Setting | f | 24.000 | 24.125 | 24.250 | GHz |
| Radiated Power (EIRP) | Pout | <2.0 | <2.5 | <3.0 | mW |
| Storage Ambient Humidity | 45%~65% | RH | |||
WARNING: The actual detection range is related to the signal amplification gain of the circuit, the overall layout of the PCBA and the threshold of the MCU.
Note1: The radiated emissions is designed to meet FCC and CE rules.
Note2: The Received Signal Strength(RSS) is measured at the total 1 Ways path loss of 70dB.
Note3: The noise voltages are measured from 10Hz to 100Hz at the Output port, inside an Anechoic chamber.
Note4: Pulse operation
