Fire Alarm Multi Sensor Smoke and Heat Detector

Welcome to buy Fire Alarm Multi Sensor Smoke and Heat Detector from us. Every request from customers is being replied within 24 hours.

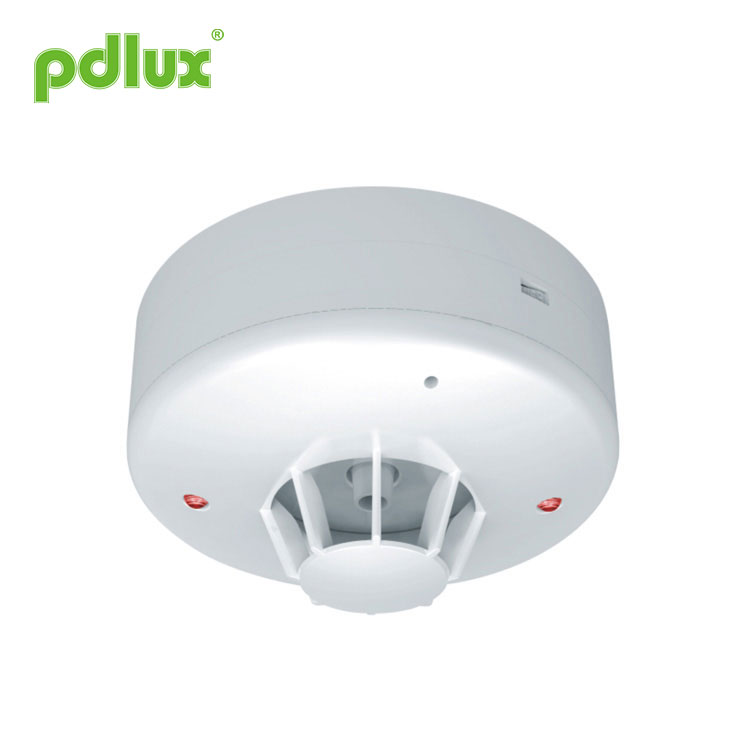

Model:PD-929HT

Send Inquiry

Product Details

Fire Alarm Multi Sensor Smoke and Heat Detector

Heat Detector PD-929HT instruction

Summary

The heat detector is designed to detect ambient temperature, When ambient temperature reaches preset value, the LED light, and it output signal immediately triggering connected unit to work Be suitable for the industrial and civil building where there is explosive and combustible gas.


Specifications

Detecting temperature method: fixed temperature
Power source: DC9V~DC33V
Static current: 20μA
Alarm temperature: 65℃
Working humidity: 10~90%
Installation: ceiling installation

After installing and switching on power, the detector is in operation state. When it detects that the ambient temperature is higher than preset alarm value, the LED light and the detector output signal immediately.


Characteristics

Explosionproof function, elegant shell, easy to installation.
Anti-interference, anti-humidity
Non-pollution, high safety.
The detector has good stabilization, false alarm is little, and it not influenced by weather’s changing.


Suitable spot

In the circumstance that there probably are smokeless fire and there are quantities of powder dust.
In the circumstance there are smog and steam resorting.
Kithen, boiler house, tea stove house, electrical machine house and drying workshop.
Indoor carbarn, smoking room etc.
Other halls and public place where smoke detector is not fit to install.


Connection-wire diagram

① Terminal 1 connect" +"
② Terminal 2 connect "–"
③ Terminal 6 and 3(4)─relay output terminal.


Installation

1. Push the hole to unlock the hook, turn it counterclockwise, take down base(see the above diagram).
2. According to connection-wire illumination connect wire to the base.
3. Fix the base on the selected position.
4. Cover the detector body to the base and turn it clockwise tighten (see the above diagram).
