Ceiling Mount Intruder Detectors

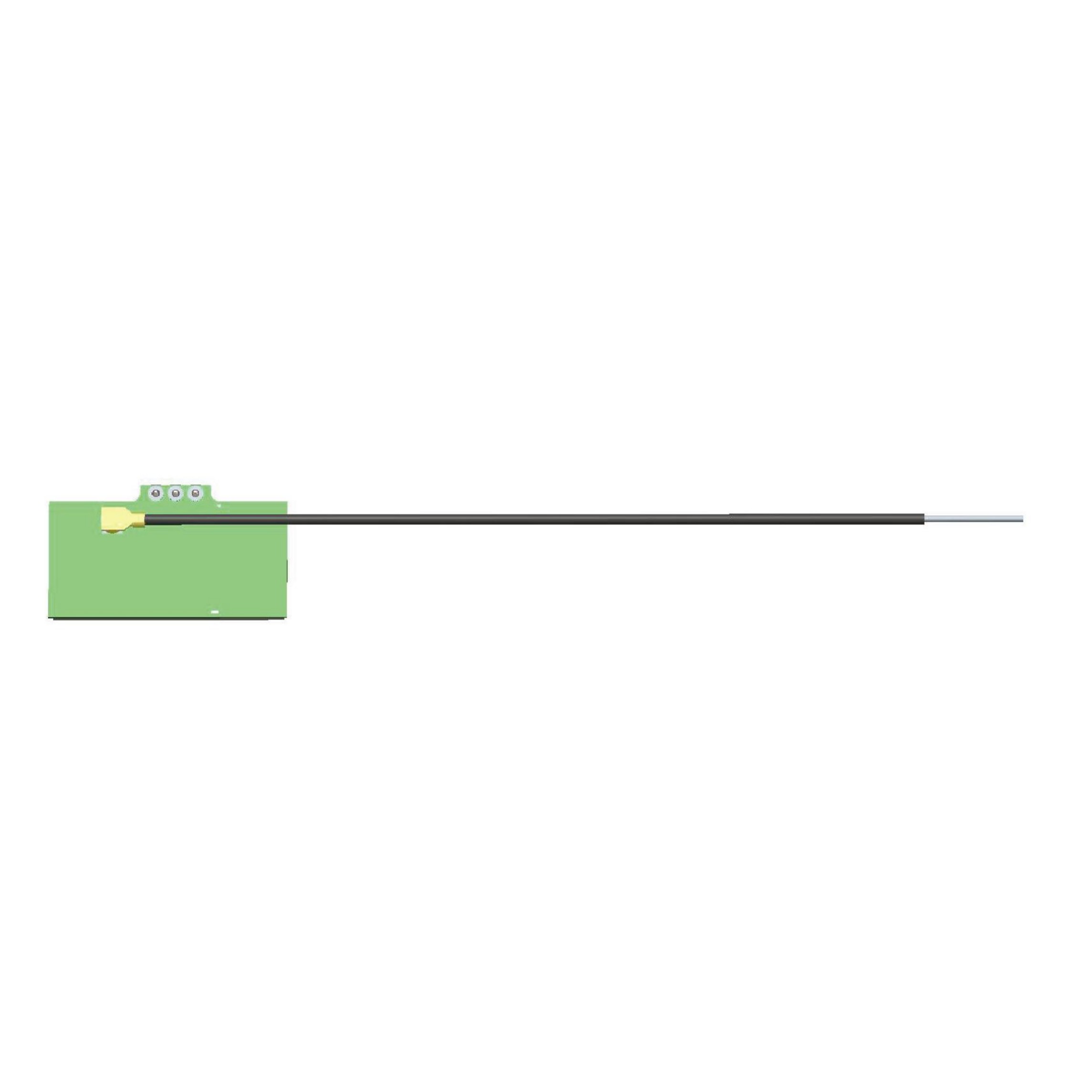

Ceiling mount intruder detectors is a C-Band Bi-Static doppler transceiver modlue .It adopts built-in Resonator Oscillator (CRO) amplificated signal external circuit. More sensitive and lower power consumption than V2。It is convenient for the customers to develop various products. This module is ideally suiable for occupancy sensor in automatic lighting switches.It can also be used for ceiling mount intruder detectors.

Model:PD-V6-LL

Send Inquiry

Product Description

Ceiling Mount Intruder Detectors

Ceiling mount Intruder detectors is a C-Band Bi-Static Doppler transceiver modlue .It adopts built-in Resonator Oscillator (CRO) amplificated signal external circuit. More sensitive and lower power consumption than V2。It is convenient for the customers to develop various products.
This module is ideally suiable for occupancy sensor in automatic lighting switches.It can also be used for ceiling mount intruder detectors.

According with EN 300440-V2.2.1、EN 62479:2010 RED directive - 2014/53/EU
According with FCC Part 15.249
According with EN 62321,ROHS directive - 2011/65/EU According with REACH directive - 1907/2006/EC

Application of Ceiling Mount Intruder Detectors
Intelligent switch
Automatic light
Intruder detect

Feature and advantage
Low wireless power output
Low power consumption
Non-contact detection
Easy to match with the external circuit
High anti-jamming ability
Suit various harsh environment
Low noise output



Parameter

Notes

Min

Typ

Max

Units

Frequency Setting

1

5.75

5.80

5.85

GHz

Radiated Power (EIRP)

1

0.18

0.20

0.22

mW

Received Signal Strength

2

150

200

300

μVp-p

Noise

3

0.5



2

mVrms

Supply Voltage



4.75

5.00

5.25

V

Current Consumption



12

12.5

13.5

mA

Operating Temperature



-30

22

105

Weight



4.5

4.8

5.3

g


Note1: The radiated emissions is designed to meet FCC and CE rules.
Note2: The Received Signal Strength(RSS) is measured at the total 1 Ways path loss of 64dB.
Note3: The noise voltages are measured from 10Hz to 100Hz at the Output port, inside an Anechoic chamber.
