C-Band Bi-Static Doppler Transceiver Module

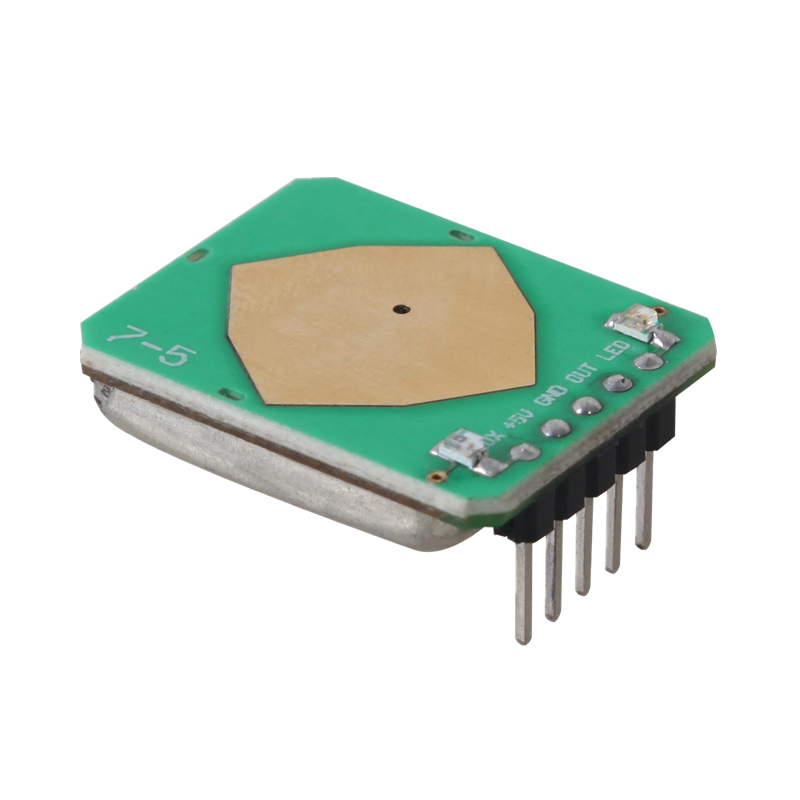

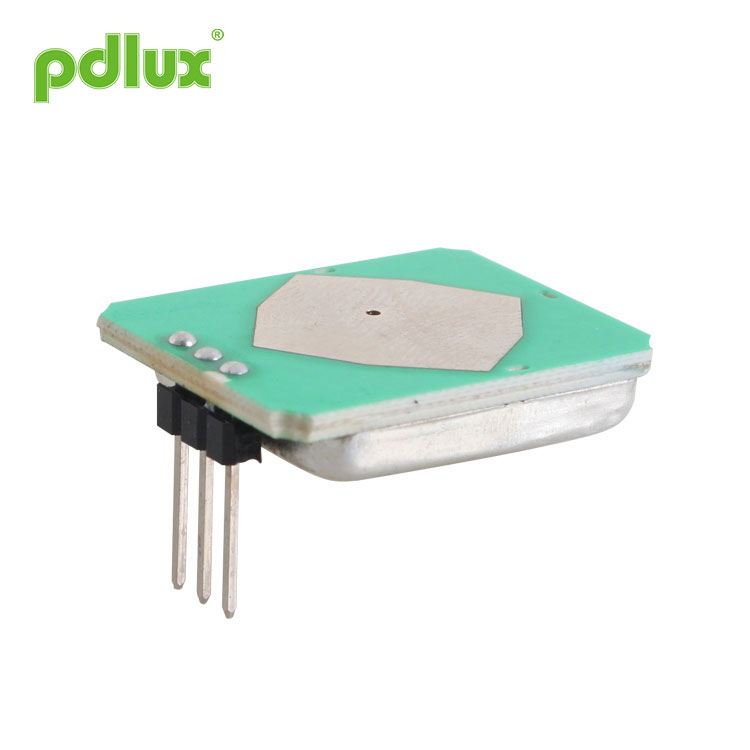

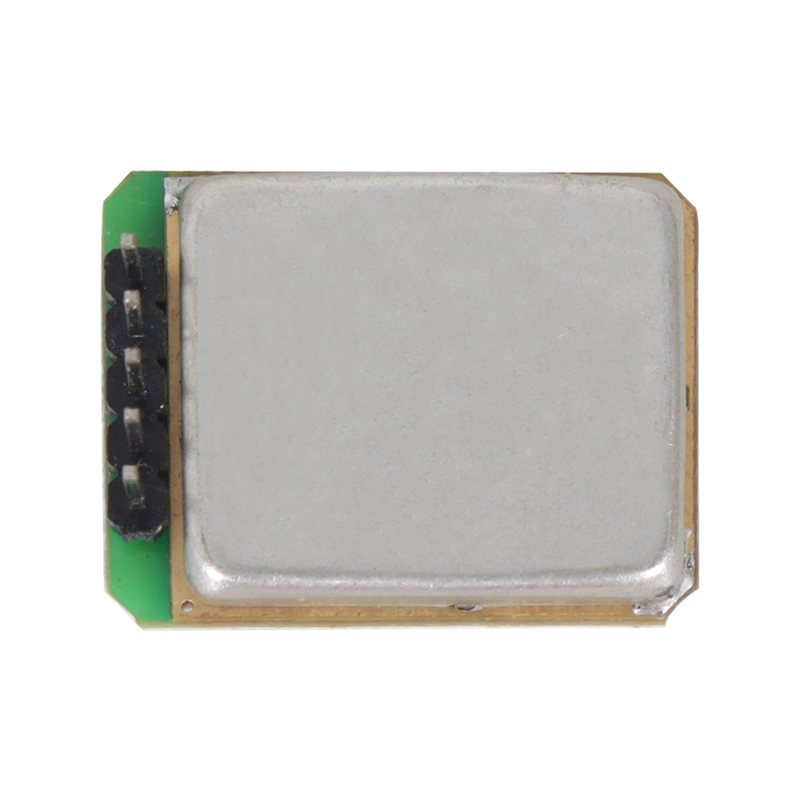

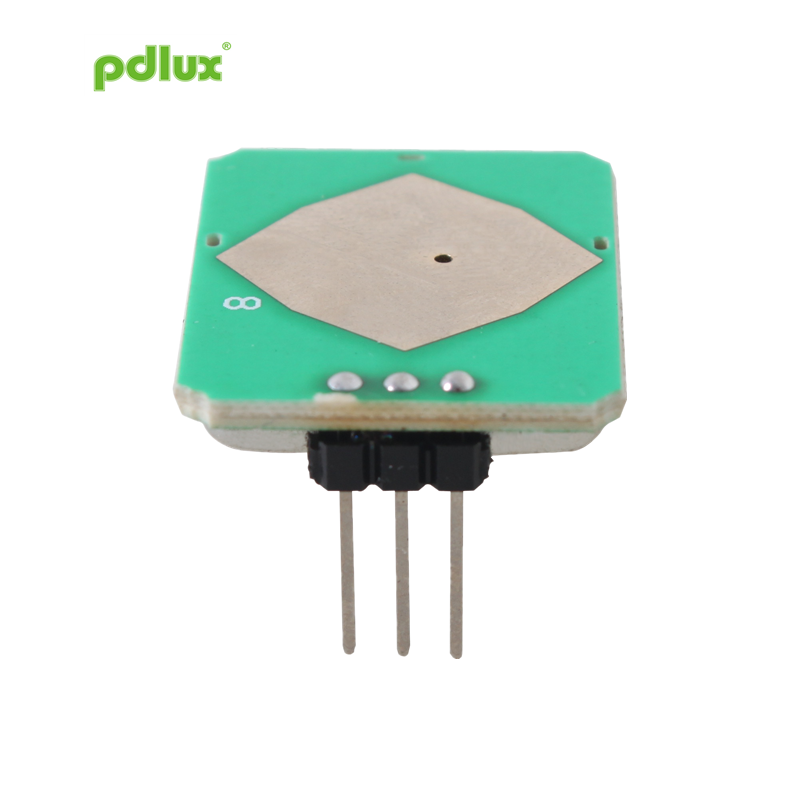

C-Band Bi-Static Doppler Transceiver Module.It’s built-in Resonator Oscillator (CRO).This module,V19 adopts flat Plane Antenna, suitable for wall mounting. It can improve its front signal receiving ability and reduce its flank blind area. Its performance is better than the sensors in the market.

Model:PD-V19

Send Inquiry

Product Description

C-Band Bi-Static Doppler Transceiver Module

Application of C-Band Bi-Static Doppler Transceiver Module
● Intelligent switch
● Wall-hung switch
● Intruder detect

Feature and advantage
● Low wireless power output
● Low power consumption
● Non-contact detection
● Easy to connect with the controller
● Low noise output

C-Band Bi-Static Doppler Transceiver Module is a C-Band Bi-Static Doppler transceiver modlue .It’s built-in Resonator Oscillator (CRO).This module,V19 adopts flat Plane Antenna, suitable for wall mounting. It can improve its front signal receiving ability and reduce its flank blind area. Its performance is better than the sensors in the market.
This module is ideally suiable for occupancy sensor in automatic lighting switches.It can also be used for ceiling mount intruder detectors.



According with EN 300440-V2.1.1、EN 62479:2010 RED directive - 2014/53/EU
According with FCC Part 15.249
According with EN 62321,ROHS directive - 2011/65/EU According with REACH directive - 1907/2006/EC



FCC Statement of C-Band Bi-Static Doppler Transceiver Module:
Any Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1)This device may not cause harmful interference, and
(2)This device must accept any interference received, including interference that may cause undesired operation.



FCC Radiation Exposure Statement:
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment .This equipment should be installed and operated with minimum distance 20cm between the radiator& your body.



Parameter

Symbol

Min

Typ

Max

Units

Notes

Frequency Setting

Fstandard

5.725

5.8

5.875

GHz



Radiated Power (EIRP)

Pout



3.54



dBm



Supply Voltage

VCC

4.75

5.0

5.25

V



Current Consumption

ICC

10

12

14

mA



Current Consumption

ICC

13

15

17

mA



Operating Temperature

TOP

-10

25

80

FCC

Storage environment

TSTG

0-40

CE

Products size

26.0x20.5x5.4

mm



Weight

Weight

3.3

3.8

4.3

g

20-70% RH humidity
