PD-165 is Automatic door sensor with High Resolution low noise and high stability,which owned by PDLUX company with independent intellectual property rights, with a center frequency of 24.125GHz. Compared with similar sensors on the market, it has lower noise, higher detection resolution, and larger detection angle.
Model:PD-165
Send Inquiry
Product Details

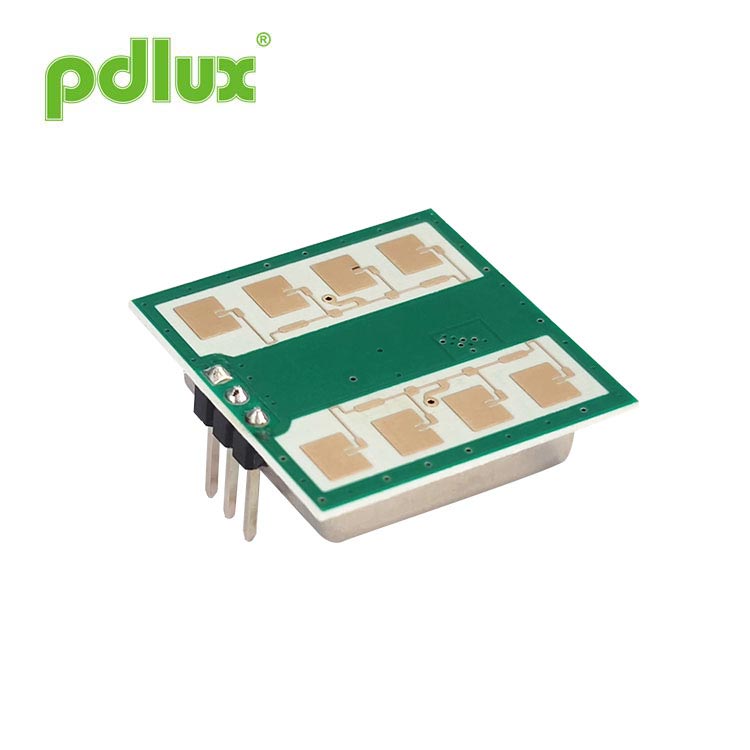

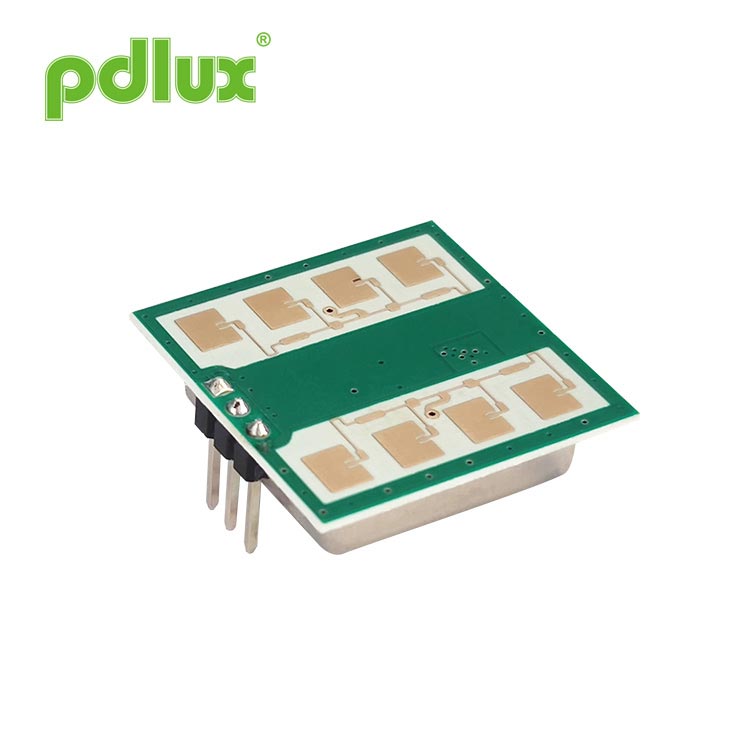

PD-165 24.125GHz Microwave Motion Sensor
WARNING: The actual detection range is related to the signal amplification gain of the circuit, the overall layout of the PCBA and the threshold of the MCU. According to the application, in order to provide sufficient amplitude of the IF signal output by the mixer to the amplification circuit, the total external amplification required can be around 70 to 80dB (with different band widths and gains configured according to different needs).
- IF Output:
- PD-165F Conventional detection range (350-550mVp-p)
- PD-165H High sensitivity version (580-980mVp-p)
Note1: The radiated emissions is designed to meet FCC and CE rules.
Note2: The Received Signal Strength(RSS) is measured at the total 1 Ways path loss of 70dB.
Application
Intelligent switch
Intruder detect
Intelligent switch
Intruder detect
Wall-hung switch
PD-165 is Automatic door sensor with High Resolution low noise and high stability,which owned by PDLUX company with
independent intellectual property rights, with a center frequency of
24.125GHz. Compared with similar sensors on the market, it has lower
noise, higher detection resolution, and larger detection angle. Higher
stability for detecting moving targets. It can be widely used in fields such as
security moving target detection, automatic door sensors, life presence
detection, movement speed detection, motion sensing automatic lighting,
etc.
PD-165 fully considers the average sensitivity performance of the detection area. It has high detection resolution, good consistency, and good low-voltage characteristics, as well as low-frequency offset. It is a high-performance mobile detection sensor.
PD-165 fully considers the average sensitivity performance of the detection area. It has high detection resolution, good consistency, and good low-voltage characteristics, as well as low-frequency offset. It is a high-performance mobile detection sensor.
According with EN 300440、EN 62479
RED directive - 2014/53/EU
According with FCC Part 15.249
According with EN 62321,ROHS directive - 2011/65/EU
According with REACH directive - 1907/2006/EC
RED directive - 2014/53/EU
According with FCC Part 15.249
According with EN 62321,ROHS directive - 2011/65/EU
According with REACH directive - 1907/2006/EC
Products size
Technical Parameters
| Parameter | Notes | Min | Typ | Max | Units | |
| Supply Voltage | Vcc | 3.0 | 5.0 | 5.25 | V | |
| Current Consumption | Icc | 20 | 35 | 38 | mA | |
| Operation Mode | Powered by PWM, it can control the working current at 3-15mA | |||||
| Pulse Width | Tpulse | 10 | μs | |||
| Operating Temperature | Top | -30~+85 +100（Max.） | ℃ | |||
| Storage Temperature | Tstg | -10 | +60 | ℃ | ||
| Stable Time | <5 | μSec | ||||
| Frequency Setting | f | 24.000 | 24.125 | 24.250 | GHz | |
| Radiated Power (EIRP) | Pout | <2.0 | <2.5 | <3.0 | mW | |
| Storage Ambient Humidity | 45%~65% | RH | ||||
WARNING: The actual detection range is related to the signal amplification gain of the circuit, the overall layout of the PCBA and the threshold of the MCU. According to the application, in order to provide sufficient amplitude of the IF signal output by the mixer to the amplification circuit, the total external amplification required can be around 70 to 80dB (with different band widths and gains configured according to different needs).
- IF Output:
- PD-165F Conventional detection range (350-550mVp-p)
- PD-165H High sensitivity version (580-980mVp-p)
Note1: The radiated emissions is designed to meet FCC and CE rules.
Note2: The Received Signal Strength(RSS) is measured at the total 1 Ways path loss of 70dB.
Note3: Pulse operation
