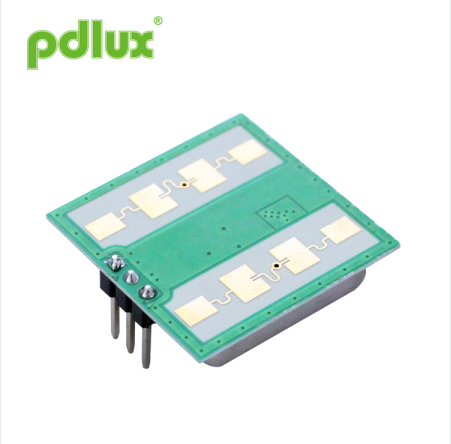

Automatic Door 24GHz Microwave Sensor Module is K-band doppler transceiver module. Automatic Door 24GHz Microwave Sensor Module is a flat antenna of our own design develop a layout with well-matched transmissions and receptions.

Model:PD-V11

Send Inquiry

Product Details

Automatic Door 24GHz Microwave Sensor Module



Application of Automatic Door 24GHz Microwave Sensor Module

• Intelligent switch

• Wall-hung switch

• Intruder detect



Automatic Door 24GHz Microwave Sensor Module is K-band doppler transceiver module. Automatic Door 24GHz Microwave Sensor Module is a flat antenna of our own design develop a layout with well-matched transmissions and receptions.

We recalculated and rearranged the internal layout to make it more meaningful. Make the main frequency of the sensor is more stable. These are our a's design patents a wider range of ambient temperatures.

V11-H has lower noise, higher resolution and higher sensitivity. Built-in anti-static function. Compared with traditional similar products, the performance is more stable and reliable.

V11-M and V11-L are different sensitivities that can be customized to the user's needs.

This series of sensor modules is ideal for automatic lighting. Security domain behavior intrusion detection sensor.


According with EN 300440-V2.1.1 s EN 62479: 2010

RED directive-2014/53/EU

According with FCC Part 15.249

According with EN 62321,ROHS directive-2011/65/EU

According with REACH directive - 1907/2006/EC





Parameter Notes Min Typ Max Units
Supply Voltage Vcc 3 5 5.25 V
Current Consumption Icc 20 35 38 mA
Operation mode Powered by PW, it can control the working current at 3-15mA
Pulse Repetition Frequency 1月10日 KHz
Operating Temperature Top -30~+85 +100 (Max.) °C
Storage temperature Tstg -10
60 °C
Stable time
<5 μSec
Frequency Setting f 24 24.125 24.25 GHz
Radiated Power (EIRP) Pout <2.0 <2.5 <3.0 mW
Pulse Width
>3

μSec
Storage ambient humidity 45%~65% RH


Note1: The radiated emissions is designed to meet FCC rules.

Note2:The Received Signal Strength(RSS) is measured at the total 1 Ways path loss of 70dB.

Note3: The noise voltages are measured from 10Hz to 100Hz at the Output port, inside an Anechoic chamber.

Note4:Pulse operation
