Automatic Door 10.525GHz Microwave Sensor Module

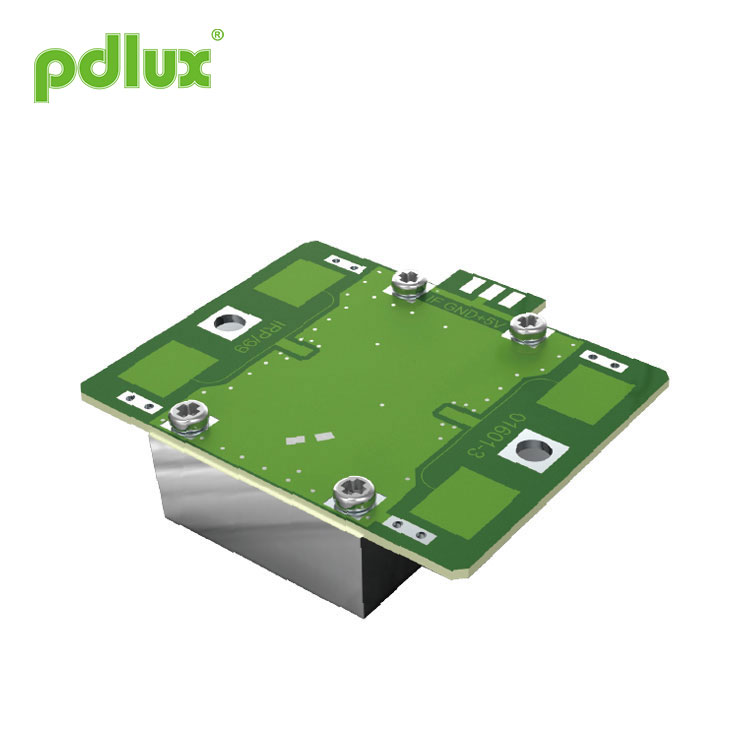

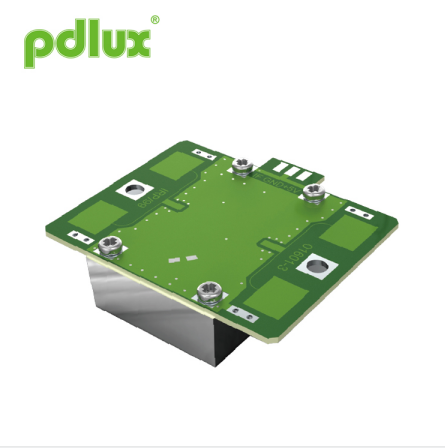

Automatic Door 10.525GHz Microwave Sensor Module is a X-Band Bi-Static Doppler transceiver module. It’s built-in Resonator Oscillator (CRO).This module,V9 adopts flat Plane Antenna, suitable for wall mounting. Automatic Door 10.525GHz Microwave Sensor Module can improve its front signal receiving ability and reduce its flank blind area. Its performance is better than the sensors in the market.

Model:PD-V9

Send Inquiry

Product Details

Automatic Door 10.525GHz Microwave Sensor Module

Automatic Door 10.525GHz Microwave Sensor Module

Automatic Door 10.525GHz Microwave Sensor Module is a X-Band Bi-Static Doppler transceiver module. It’s built-in Resonator Oscillator (CRO).This module,V9 adopts flat Plane Antenna, suitable for wall mounting. Automatic Door 10.525GHz Microwave Sensor Module can improve its front signal receiving ability and reduce its flank blind area. Its performance is better than the sensors in the market.

Automatic Door 10.525GHz Microwave Sensor Module is ideally suitable for occupancy sensor in automatic lighting switches. Automatic Door 10.525GHz Microwave Sensor Module can also be used for ceiling mount intruder detectors.


Application of Automatic Door 10.525GHz Microwave Sensor Module

●Intelligent switch

●Wall-hung switch

●Intruder detect

Feature and advantage

●Low wireless power output
●Low power consumption
●Non-contact detection
●Easy to connect with the controller
●Low noise output

According with EN 300440-V2.1.1、EN 62479:2010,RED directive-2014/53/eu

According with FCC Part 15.249
According with EN 62321,ROHS directive-2011/65/eu
According with REACH directive-1907/2006/ec


Antenna Beam Pattern

Automatic Door 10.525GHz Microwave Sensor Module

Products size

Automatic Door 10.525GHz Microwave Sensor Module


Parameter Notes Min Typ Max Units
Frequency Setting 1 10.520 10.525 10.530 GHz
Radiated Power (EIRP) 1 2.0 2.5 3.0 mW
Settling Time
5 10 20 μSec
Received Signal Strength 2 150 200 250 μVp-p
Noise 3 4 4.5 5 mVrms
Supply Voltage
4.75 5.00 5.25 V (impulse power source)
Current Consumption
10 12 14 mA
Pulse Repetition Frequency 4 1.8 2.0 3.0 KHz
Pulse Width 4 10 20 30 μSec
Operating Temperature
-15 22 55
Weight
7.5 8 8.5 g

Note1: The radiated emissions is designed to meet FCC rules.
Note2:The Received Signal Strength(RSS) is measured at the total 1 Ways path loss of 70dB.
Note3: The noise voltages are measured from 10Hz to 100Hz at the Output port, inside an Anechoic chamber.
Note4: Pulse operation
