5.8GHz Mobile Detection Microwave Sensor Module

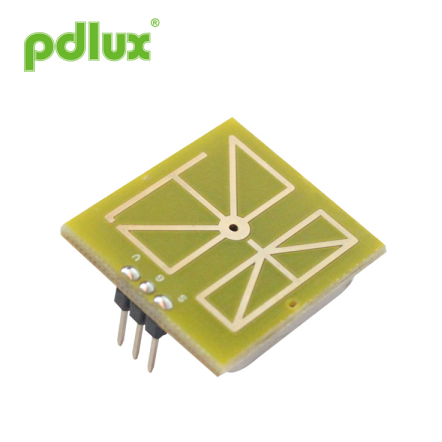

5.8GHz Mobile Detection Microwave Sensor Module is a C-Band Bi-Static Doppler transceiver module. It's built-in Resonator Oscillator (CRO).This module,V8-S adopts flat Plane Antenna, suitable for wall mounting. Mobile Detection Microwave Sensor Module can improve its front signal receiving ability and reduce its flank blind area. Its performance is better than the sensors in the market.
Model:PD-V8-S
Send Inquiry
Product Details
5.8GHz Mobile Detection Microwave Sensor Module
5.8GHz Mobile Detection Microwave Sensor Module is a C-Band Bi-Static Doppler transceiver module. It's built-in Resonator Oscillator (CRO).This module,V8-S adopts flat Plane Antenna, suitable for wall mounting. 5.8GHz Mobile Detection Microwave Sensor Module can improve its front signal receiving ability and reduce its flank blind area. Its performance is better than the sensors in the market.
5.8GHz Mobile Detection Microwave Sensor Module is ideally suitable for occupancy sensor in automatic lighting switches. 5.8GHz Mobile Detection Microwave Sensor Module can also be used for ceiling mount intruder detectors.
|
5.8GHz Mobile Detection Microwave Sensor Module • Intelligent switch • Wall-hung switch • Intruder detect
Feature and advantage • Low wireless power output • Low power consumption • Non-contact detection • Easy to connect with the controller • Low noise output |
According with EN 300440-V2.1.1 > EN 62479: 2010,RED directive-2014/53/eu According with FCC Part 15.249 According with EN 62321,ROHS directive-2011/65/eu According with REACH directive-1907/2006/ec |
| Parameter | Notes | Min | Typ | Max | Units |
| Frequency Setting | 1 | 5.75 | 5.80 | 5.85 | GHz |
| Radiated Power (EIRP) | 1 | 0.18 | 0.20 | 0.22 | mW |
| Settling Time |
|
5 | 10 | 20 | pSec |
| Received Signal Strength | 2 | 80 | 150 | 180 | MVp-p |
| Noise | 3 | 0.5 |
|
1.5 | mVrms |
| Supply Voltage |
|
4.75 | 5.00 | 5.25 | VDC |
| Current Consumption |
|
15 | 17 | 19 | mA |
| Pulse Repetition Frequency | 4 | 2.0 | 2.2 | 3.0 | KHz |
| Pulse Width | 4 | 15 | 50 | 70 | pSec |
| Operating Temperature |
|
-10 | 22 | 90 | °C |
| Weight |
|
6.0 | 6.6 | 7.2 | g |
Note1: The radiated emissions is designed to meet FCC rules.
Note2:The Received Signal Strength(RSS) is measured at the total 1 Ways path loss of 70dB.
Note3: The noise voltages are measured from 10Hz to 100Hz at the Output port, inside an Anechoic chamber.
Note4: Pulse operation
