5.8GHz Microwave Sensor Wall Mounting Module

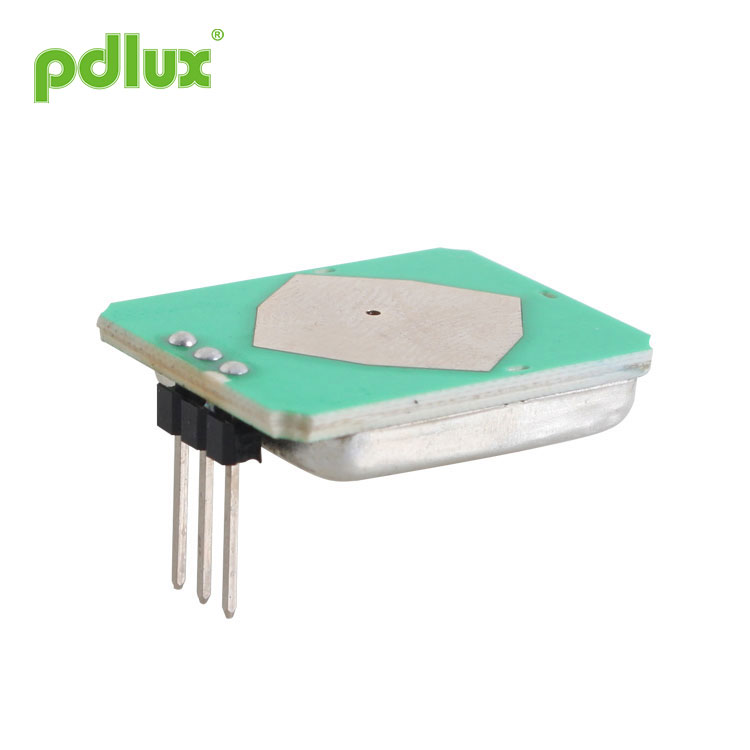

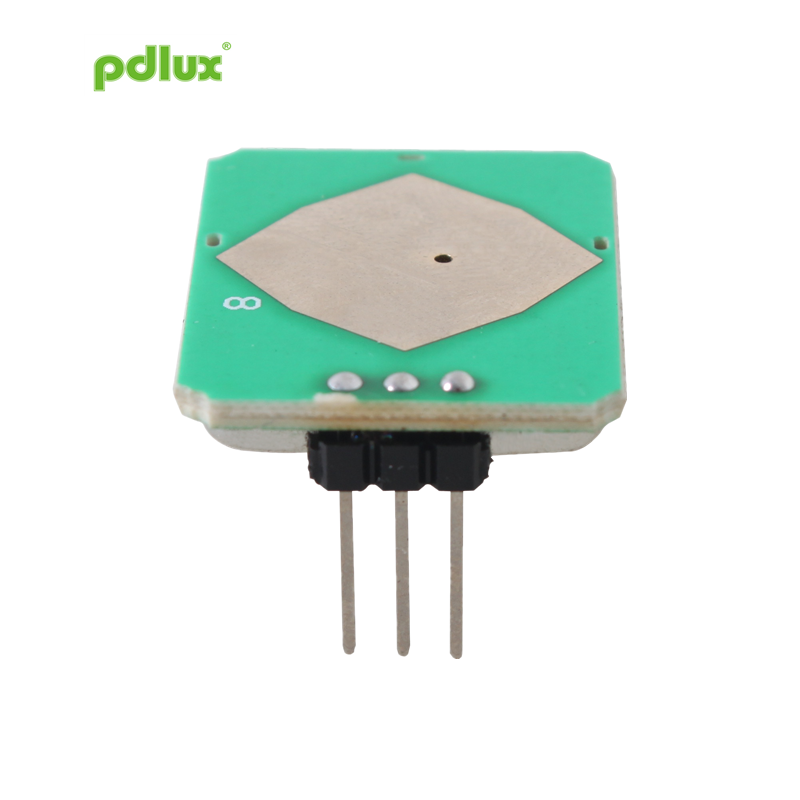

5.8GHz Microwave Sensor Wall Mounting Module .It's built-in Resonator Oscillator (CRO).This module, V19 adopts flat Plane Antenna, suitable for wall mounting. It can improve its front signal receiving ability and reduce its flank blind area. Its performance is better than the sensors in the market.

Model:PD-V19

Send Inquiry

Product Details

5.8GHz Microwave Sensor Wall Mounting Module



The introduction of 5.8GHz Microwave Sensor Wall Mounting Module

Application

• Intelligent switch

• Wall-hung switch

• Intruder detect


Feature and advantage

• Low wireless power output

• Low power consumption

• Non-contact detection

• Easy to connect with the controller

• Low noise output


5.8GHz Microwave Sensor Wall Mounting Module is a C-Band Bi-Static Doppler transceiver module .It's built-in Resonator Oscillator (CRO).This module, V19 adopts flat Plane Antenna, suitable for wall mounting. It can improve its front signal receiving ability and reduce its flank blind area. Its performance is better than the sensors in the market.

This module is ideally suitable for occupancy sensor in automatic lighting switches.lt can also be used for ceiling mount intruder detectors.



According with EN 300440-V2.1.1 EN 62479: 2010

RED directive-2014/53/EU

According with FCC Part 15.249

According with EN 62321,ROHS directive-2011/65/EU

According with REACH directive-1907/2006/EC



FCC Statement:

Any Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:

(1) This device may not cause harmful interference, and

(2) This device must accept any interference received, including interference that may cause undesired operation.



FCC Radiation Exposure Statement:

This 5.8GHz Microwave Sensor Wall Mounting Module complies with FCC radiation exposure limits set forth for an uncontrolled environment .This equipment should be installed and operated with minimum distance 20cm between the radiator& your body.



5.8GHz Microwave Sensor Wall Mounting Module is a C-Band Bi-Static Doppler transceiver module .It's built-in Resonator Oscillator (CRO).This module, V19 adopts flat Plane Antenna, suitable for wall mounting. 5.8GHz Microwave Sensor Wall Mounting Module can improve its front signal receiving ability and reduce its flank blind area. Its performance is better than the sensors in the market.

5.8GHz Microwave Sensor Wall Mounting Module is ideally suitable for occupancy sensor in automatic lighting switches.lt can also be used for ceiling mount intruder detectors.




Parameter Symbol Min Typ Max Units Notes
Frequency Setting Fstandard 5.725 5.8 5.875 GHz
Radiated Power (EIRP) Pout
3.54
dBm
Supply Voltage VCC 4.75 5.0 5.25 V
Current Consumption ICC 10 12 14 mA
Current Consumption ICC 13 15 17 mA
Operating Temperature TOP -10 25 80 C FCC
Storage environment TSTG 0-40 C CE
Products size 26.0x20.5x5.4 mm
Weight Weight 3.3 3.8 4.3 g 20-70% RH humidity
