24GHz Doppler Radar Speed Sensor
  • 24GHz Doppler Radar Speed Sensor - 0 24GHz Doppler Radar Speed Sensor - 0

24GHz Doppler Radar Speed Sensor

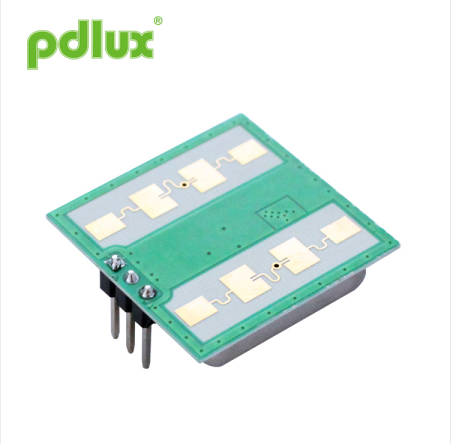

The 24GHz doppler radar speed sensor is K-band doppler transceiver module. This is a flat antenna of our own design develop a layout with well-matched transmissions and receptions.

Model:PD-V11H

Send Inquiry

Product Description

24GHz Doppler Radar Speed Sensor


Application
● Intelligent switch
● Wall-hung switch
● Intruder detect

The 24GHz Doppler Radar Speed Sensor is K-band doppler transceiver module. This is a flat antenna of our own design develop a layout with well-matched transmissions and receptions.


We recalculated and rearranged the internal layout to make it more meaningful. Make the main frequency of the sensor is more stable. These are our a's design patents a wider range of ambient temperatures.


V11-H has lower noise, higher resolution and higher sensitivity. Built-in anti-static function. Compared with traditional similar products, the performance is more stable and reliable.


V11-M and V11-L are different sensitivities that can be customized to the user's needs.


This series of sensor modules is ideal for automatic lighting. Security domain behavior intrusion detection sensor.


According with EN 300440-V2.1.1、EN 62479:2010 RED directive - 2014/53/EU
According with FCC Part 15.249
According with EN 62321,ROHS directive - 2011/65/EU According with REACH directive - 1907/2006/EC

Parameter

Notes

Min

Typ

Max

Units

Supply Voltage

Vcc

3.0

5.0

5.25

V

Current Consumption

Icc

20

35

38

mA

Operation mode

Powered by PW, it can control the working current at 3-15mA

Pulse Repetition Frequency

1-10

KHz

Operating Temperature

Top

-30~+85+100(Max.)

Storage temperature

Tstg

-10

+60

Stable time



<5

μSec

Frequency Setting

f

24.000

24.125

24.250

GHz

Radiated Power (EIRP)

Pout

<2.0

<2.5

<3.0

mW

Pulse Width

>3μSec

Storage ambient humidity

45%~65%

RH


Note1: The radiated emissions is designed to meet FCC rules.
Note2:The Received Signal Strength(RSS) is measured at the total 1 Ways path loss of 70dB.
Note3: The noise voltages are measured from 10Hz to 100Hz at the Output port, inside an Anechoic chamber.
Note4: Pulse operation
