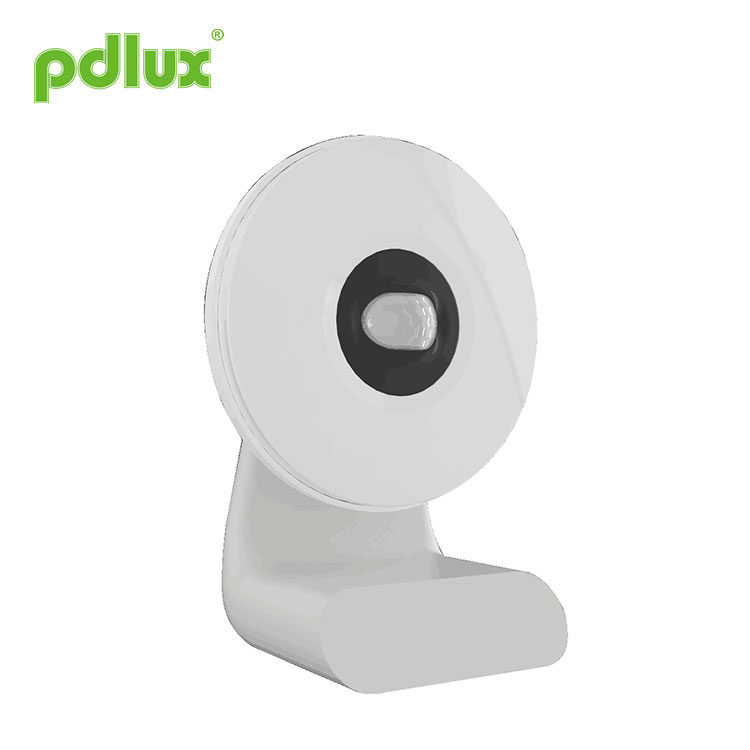

PD-PIR2034-B /PD-PIR2034-P Night Lamp

PD-PIR2034-B/PD-PIR2034-P  Night Lamp Instruction



This product is a new type of energy-saving lighting, made of high-sensitivity detectors and integrated circuits; it integrates automatic, convenient, safe, energy-saving and practical; it uses the infrared energy emitted by the human body as a control signal source; it can automatically identify the At night, when someone enters the detection
area at night, the light will automatically turn on; when there is no induction signal when leaving the detection area, the light will turn off.


2.Specifications

Power supply:



PD-PIR2034-B (basic version):

3X1.5V AA battery

PD-PIR2034-P:

3.7V 2000mAH 18650 lithium battery, rechargeable.

Continuous lighting time:

≥360 minutes (when powered by lithium battery)

Static current:

<30uA

Time setting:

30sec

Detection range:

8m(22°C)Max

Light-control:

<10LUX

Detection angle:

120°

Working humidity:

<93%RH

LED:

18PCS, 6500K (color temperature can be customized)

Rated load:

Auto1:0.8W

Auto2: 0.4W

ON: 0.8W

Working temperature:

-10~+40°C

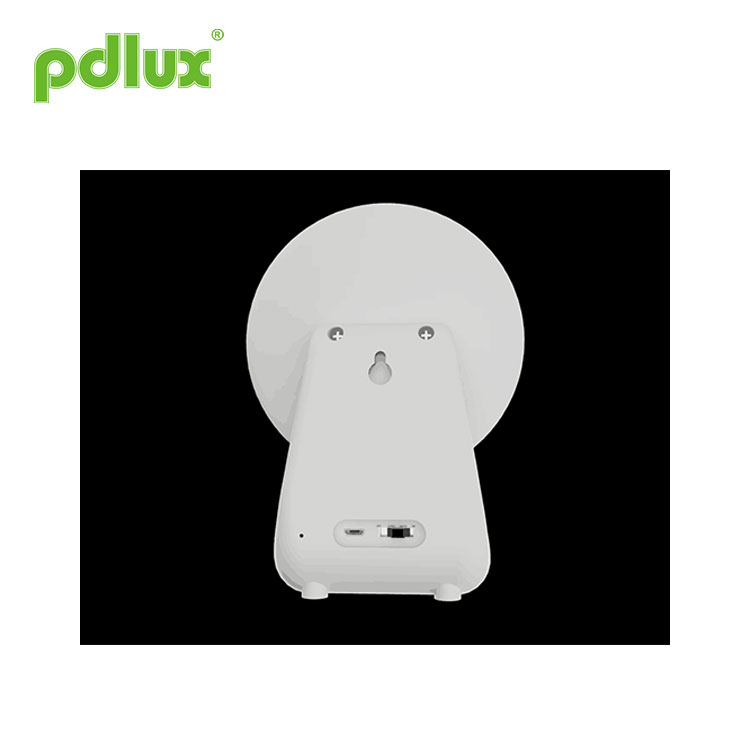

3.Description of each part



4.Operation instruction

1.PD-PIR2034-B: Load 3 X 1.5VAA batteries before use and turn on the switch to the AUTO mode. PD-PIR2034-P: Turn on the switch to the AUTO mode.
2. At night (light control illumination: <10LUX) to sense, the light should be on;
3. Under the condition of no continuous induction, the light should go out after 30±3 seconds.
4. The induction delay is continuously superimposed: within the working time after the first induction, if the induction signal is received again, the induction delay time will be extended and superimposed on the basis of the first delay.


5.Installation

1. It can be directly placed on any required desktop or plane.
2. Can be installed on a suitable wall through hanging holes (The installation height shall not be higher than the user's height).


6.Precautions

1. Do not use the product in areas with obvious changes in nearby temperature, such as air conditioners, heaters and other equipment;
2. There should be no obstacles or moving objects in front of the detection window that affect its detection.


7.Some common problems and troubleshooting methods in use

1. The light does not work:
a. Check whether the power supply is connected well;
b. Please check whether the working illuminance of the sensor matches the description.


2. Low induction sensitivity:
a. Please check whether there are obstacles in front of the detection window that may affect the signal received by the sensor;
b. Please check whether the ambient temperature used by the sensor is too high;
c. Please check whether the induction signal source is within the detection area of the sensor


This manual is for the current content programming of this product, there are any changes and modifications to the manufacturer without notice!
It is strictly forbidden to copy the contents of the instruction manual for any other purpose without the permission of the company.
