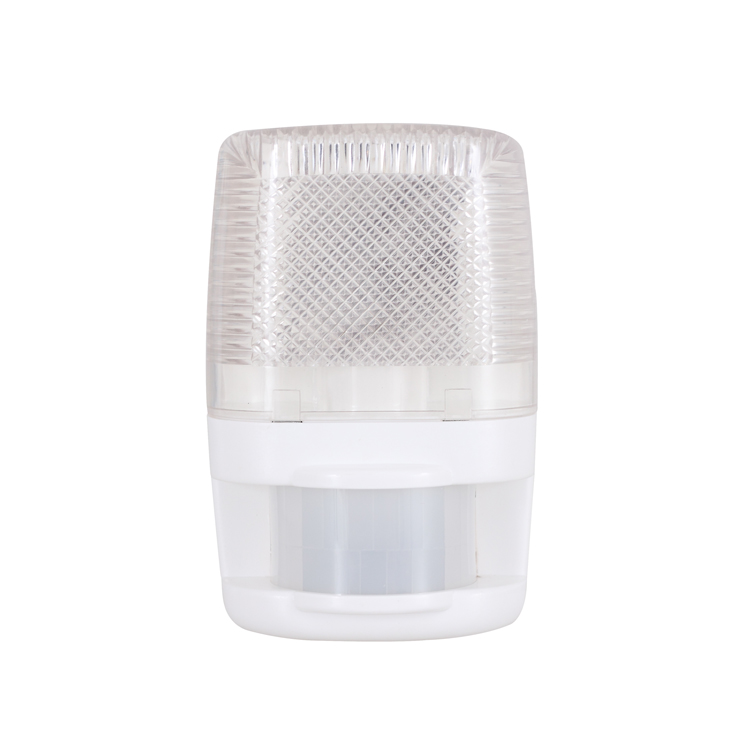

UK EU Plug In Wall Sensor Night Light

Infrared Motion Sensor Lamp PD-PIR2022 instruction

PRODUCT INFORMATION

The UK EU Plug In Wall Sensor Night Light is a new type of energy-saving lighting lamp; it adopts high sensitivity detector and integrated circuit; it gathers automatism, convenience, safety, energy-saving and practicality; it utilizes infrared energy from human body as its controlling source; at night when one enters its detection field, the lamp will shine and after leaves it will go out automatically.

SPECIFICATIONS Power source: 220-240V/AC  110-130V/AC Power frequency: 50/60Hz Light-control: <35LUX Time setting: 60sec±10sec Rated load: 7W Max. Detection range: 7~9m(22°C) Detection angle: 180° Working temperature: -10~+40°C Working humidity: <93%RH Switch function: ON/AUTO/OFF

FUNCTION

You can set the lamp function according to your need:
-Slide switch to“I ”: the lamp will alwaysshine;
-Slide switch to“ O ”: the lamp won’t shine;
-Slide switch to“ AUTO”: in the ambient light below 5LUX to 35LUX,when one enters the detection range,the lamp will light; after leaves the lamp goes out automatically.

TEST

>Slide switch to“ I ”, the lamp should always shine;
>Slide switch to“ O ”, the lamp should not shine;
>Slide switch to“ AUTO”:
1) Plug in the lamp;
2) After 30sec the lamp enters working state and the lamp goes out;
3) After the lamp goes out, make it sense, the lamp should light;
4) Under the condition that there is no continual induction, the lamp should go out within 60s±10s.

ATTENTIONS

For you safety, you should take down the unit before you replacing the bulb;
The product shouldn’t be used in the zones the air temperature changes obviously: for example air conditioning and air heating;
In front of the detection window there shouldbe no obstruction or moving object to effect its detecting;
After the lamp light for some time, the lamp cover will be very hot, so here you should not touch the lamp cover for your safety.

PROBLEMS AND SOLUTIONS

1. The lamp doesn’t work:
a)please check if the power connection is ok;
b)pleas check if the ambient working light accords with instruction.

2. The induction sensitivity is low:
a)please check if in front of the detection window there is obstruction effecting the sensor to receive signal;
b)please check the temperature is too high;
c)please check if the sense signal is in the detection range;

3. The sensor can not shut off the lamp automatically:
a)check if in the detection range there is continual sense signal;
b)check if the power accords with instruction required;
c)check if the air temperature near the sensor lamp change obviously, for example air conditioning or air heating, etc.
