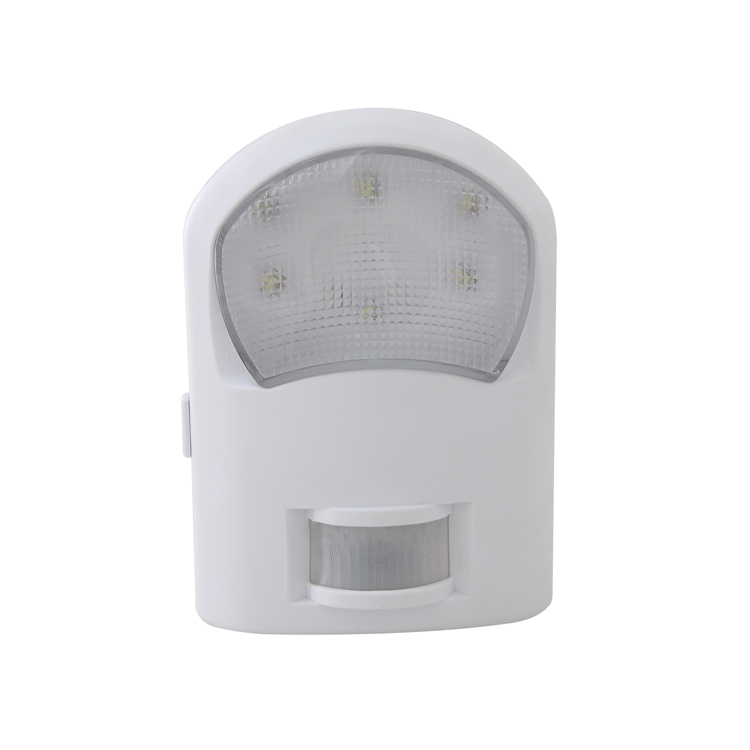

4*1.5V Batteries Powered LED Night Light
4*1.5V batteries powered LED night light is a new type of energy saving motion sensor lamp; the light become brighter and service time longer，When reached a certain degree of illumination, it adopts PIR technology to sense motion and turn on the light automatically; It can identify day and night automatically, at night when one enters its detection field, the lamp will shine and after leaves it will go out automatically. If you want the light to remain on for an extended period of time, just slide the switch to the “ON” setting to turn the light on and keep it on, until you turn the switch off.
Model:PD-PIR2020
Send Inquiry
Product Details
Infrared Motion Sensor Lamps PD-PIR2020 instruction
PRODUCT INFORMATION
The 4*1.5V Batteries Powered LED Night Light is a new type of energy saving motion sensor lamp; the light become brighter and service time longer，When reached a certain degree of illumination, it adopts PIR technology to sense motion and
turn on the light automatically; It can identify day and night automatically, at night when one enters its detection field, the lamp will shine and after leaves it will go out automatically. If you want the light to remain on for an extended period of time, just slide the switch to the “ON” setting to turn the light on and keep it on, until you turn the switch off.
SPECIFICATIONS
Power source: 4X1.5V AA batteries
Working current: 90mA
Static current: 30~40uA
Time delay: 10±2sec
Detection range:5m(24°C)Max
Light-control: <10LUX
Detection angle: 120°
Operating temperature: -10~+40°C
Relative humidity: <93%RH
LED quantity:6PCS
Single power:0.06W
Rated load:0.36W Max.
SENSOR INFORMATION
OPERATION
Insert 4 X 1.5VAA batteries into the battery box;
Slide the switch to “ON” , the lamp is always on, here no sense function;
Slide the switch to “OFF” ,the lamp is powered off;
When the light of the environment is at less than 10LUX Slide the switch to “AUTO”, the sensor is activated.
The lamp will turn on when motion is detected. The lamp will automatically turn off 10±2sec later after the last motion is detected.
Low-voltage Alarm: When the battery power is shortage, after the Products detect mobile signal. The red
LED will flicker every 5sec until the user replace batteries.
Time-delay is added continually: When it receives the second induction signals after the first induction, it will compute time once more on the rest of the first time-delay basis (set time);
ATTENTIONS
The product shouldn’t be used in the zones the air temperature changes obviously: for example air conditioning and air heating;
In front of the detection window there should be no obstruction or moving object to effect its detecting.
PROBLEMS AND SOLUTIONS
①the sensor sensitivity is low
Please check if in front of the detection window there is obstruction effecting the sensor to receive signal;
Please check if the temperature is too high;
Pease check if the sense signal is in the detection range;
②the sensor can not shut off the lamp automatically
Check if in the detection range there is continual sense signal;
If the battery accords with instruction required;
If the air temperature near the sensor lamp change obviously, for example air conditioning or air heating, etc.
We are committed to promoting the product quality and reliability, however, all the electronic components have certain probabilities to become ineffective, which will cause some troubles.When designing, we have paid attention to redundant designs and adopted safety quota to avoid any troubles.
This instruction, without our permission, should not be copied for any other purposes.
