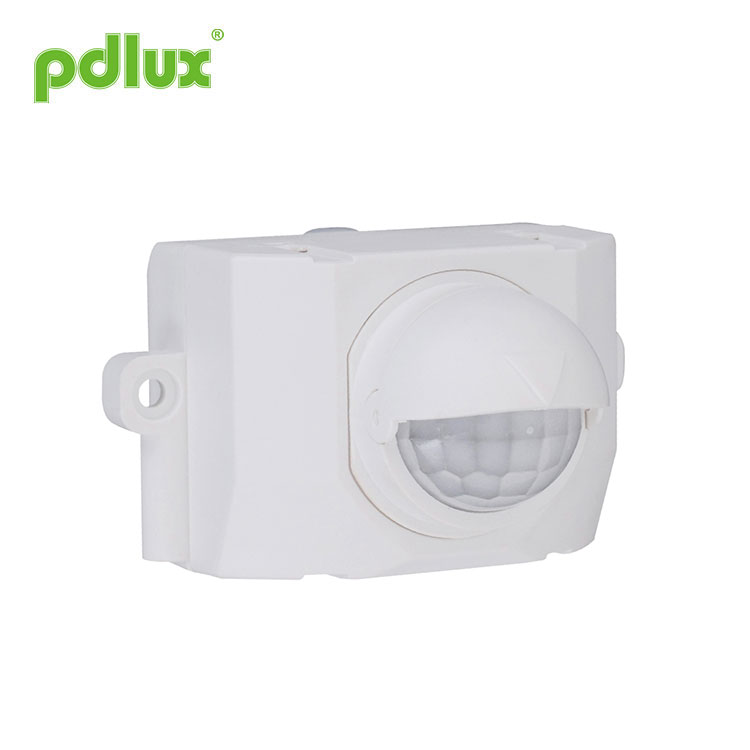

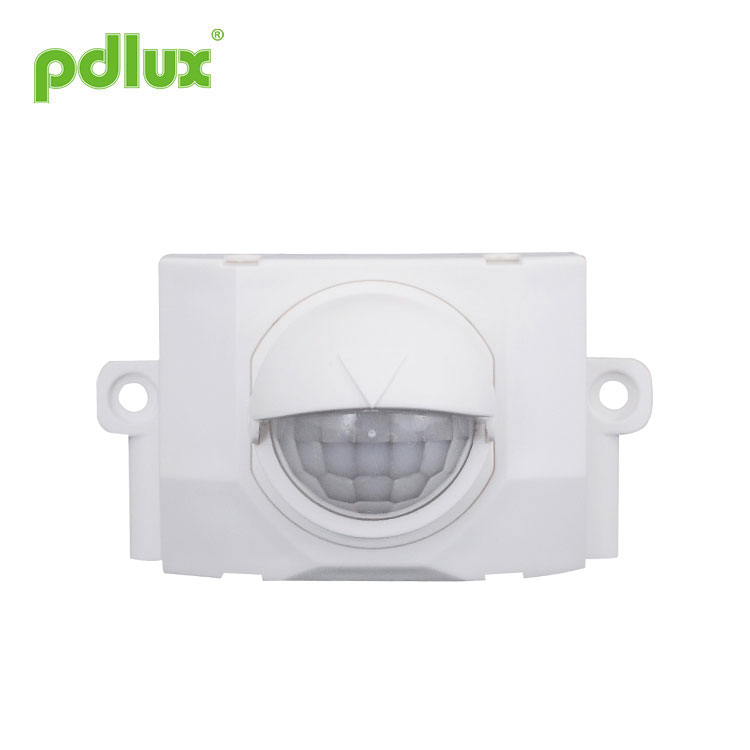

Outdoor Infrared Detector IP66

You can rest assured to buy Outdoor Infrared Detector IP66 from our factory and we will offer you the best after-sale service and timely delivery. It can be on when one comes and off automatically after leaves. Its performance is stable. It can identify day and night. The light can turn on when one enters detection field and moves, it can turn off automatically after one leaves detection field.

Specifications

(incorporated in class II appliance only)

Power source	220-240VAC  100-130VAC
Power frequency	50/60Hz
Detection range	8±2m Max(22°C)
Detection angle	120°
Time setting	Min:7sec±3sec
max	6min±2min(adjustable)
Light-control	<5LUX~2000LUX(adjustable)
Working temperature	–10°C ~ +40°C
Working humidity	<95%RH
Sense motion speed	0.6m/s -1.5m/s
Rated load:	1200W Max. / 5 A tungsten (cosφ=1)(220-240VAC)  300W Max. / 2.5 A fluorescent (cosφ=0.5)(220-240VAC)  600W Max. / 2.5 A tungsten (cosφ=1)(100-130VAC)  150W Max. / 1.275 A fluorescent (cosφ=0.5)(220-240VAC)

Sensor Information

Connection-Wire Diagram

Installation attention
1. In sense range there should not be isolation;
2. You should not install the unit facing window and where temperature change quickly (like air conditioning, stove) to avoid working;
3. In front of sense window there should not be moving object, like hanging fan.etc.
4. If you unfamiliar with electricity, suggest electrician or experiencing human install the unit.

Test

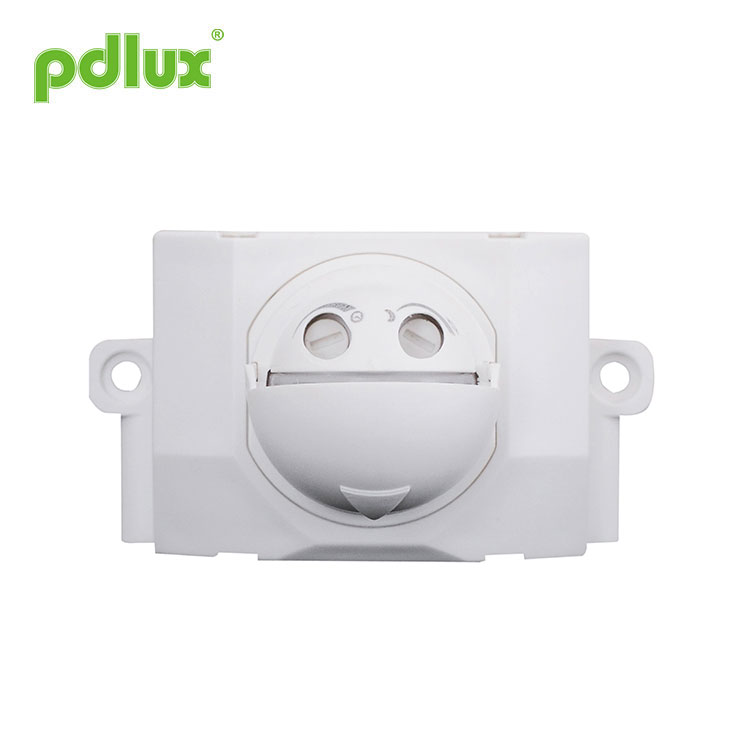

1.The light-control knob to adjust the maximum (daytime), the time adjustment knob to the minimum;
2. And about 30s later turned into the working state, the lamp, the hand in front of the sensor probe window in the induction by shaking sensor signal, the light from the light immediately, in the absence of sustained induction under 7s ± 2s or so off;
3. Light-control knob to the minimum (night), lights off, the hand in front of the sensor probe window shaking, light does not shine. Opaque object (such as cloth) cover the detection window, induction time, lights, signals in the absence of induction lamp under 7s ± 2s off as normal.

Troublesome

1. load do not work, please check:
 ① whether the connection of power and load is correct or not;
 ② whether the load is good or not;
 ③ whether the working light you set accord with ambient light or not.

2. Sensitivity is low, please check:

 ①whether in front of sense window there is isolation to affect sensor receiving signal or not;
 ②whether ambient temperature is too high or not;
 ③whether sense signal source is in sense range or not;

3. Sensor can not shut off load, please check:
 ①whether there is continual sensing signal in sense range or not;
 ②Whether power accord with specification required or not;
 ③Whether temperature near sensor changes quickly, for example: air conditioning, heater, etc.

This manual is for the current content programming of this product, there are any changes and modifications to the manufacturer without notice!

It is strictly forbidden to copy the contents of the instruction manual for any other purpose without the permission of the company.
