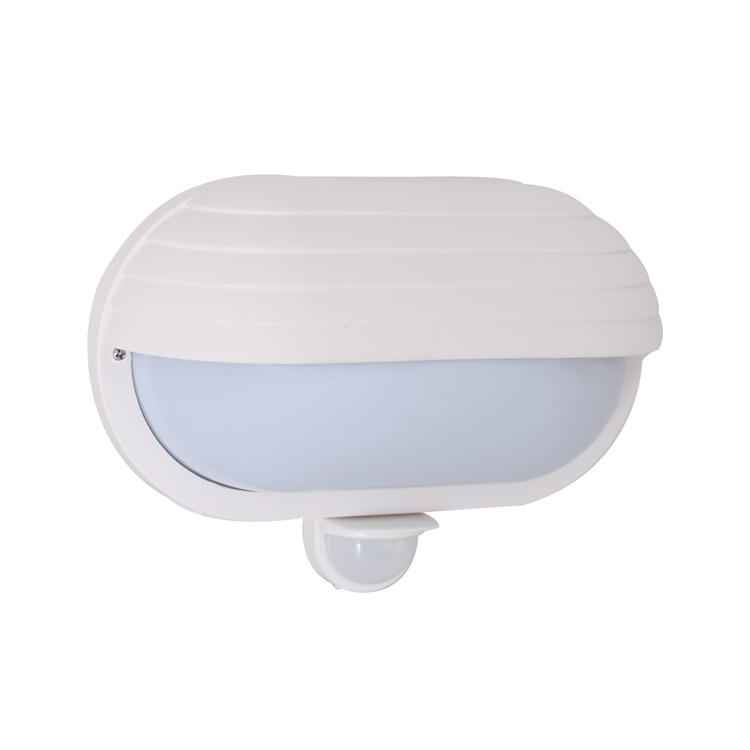

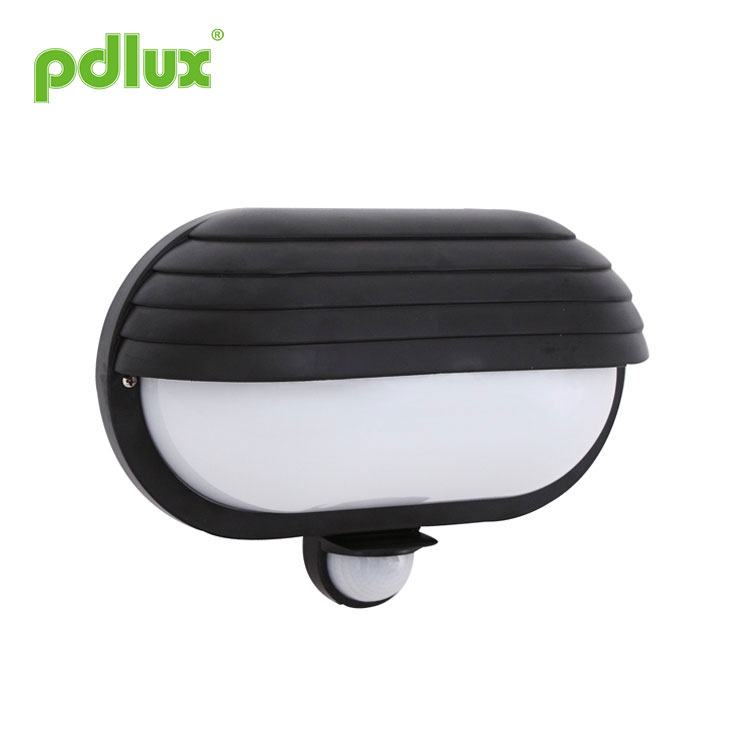

LED IP44 Waterproof Infrared Sensor Lamp

PDLUX PD-PIR2030
LED IP44 Waterproof Infrared Sensor Lamp is a kind of energy-saving automatic lamp ,it can turn on when one comes and turn off after he leaves, It can identify day and night automatically.

Send Inquiry

Product Description

LED IP44 Waterproof Infrared Sensor Lamp Instruction

LED IP44 Waterproof Infrared Sensor Lamp

LED IP44 Waterproof Infrared Sensor Lamp
Summary
LED IP44 Waterproof Infrared Sensor Lamp is a kind of energy-saving automatic lamp ,it can turn on when one comes and turn off after he leaves, It can identify day and night automatically. It adopts infrared energy discharge detector and integrated circuit. its performance is stable. The lamp will be on when one enters the detection field and trigger it, and it will be off after one leaves.


Function

1.LED IP44 Waterproof Infrared Sensor Lamp can identify day and night automatically, the working light-control can be adjusted freely, it can work automatically at night and stop in the daytime.
2.The illuminated time can be delayed automatically and adjusted according to the customer’s desire.

Specifications

Power source: 220-240VAC

Power frequency: 50Hz
Rated load: 60W Max.
Detection angle: 180°
Time setting: min:8sec±3sec
max:3min±1min(adjustable)
Detection range: 7m Max.(24°C)
Light-control: 10LUX~sunshine(adjustable)
Installation height: 1.8m~2.5m
Working temperature: -10°C~+40°C
Working humidity: ≤93%RH
LED IP44 Waterproof Infrared Sensor Lamp
Sensor information

LED IP44 Waterproof Infrared Sensor Lamp

The name of each part
LED IP44 Waterproof Infrared Sensor Lamp
Installation
Note:Please bring the following tools
LED IP44 Waterproof Infrared Sensor Lamp

LED IP44 Waterproof Infrared Sensor Lamp
1. Please keep it away from the children.
2.This product can installed for outdoor, but we suggest that against for the rain/storm & High lights.

Step 1 Mark the hole position with a pencil after determining where you want to install the product. (Fig.1)
LED IP44 Waterproof Infrared Sensor Lamp


Note:If LED IP44 Waterproof Infrared Sensor Lamp is a wooden wall,there is no need to use plastic expansion screw, just fasten the screw with the screwdriver.


Step 2 Drill holes on the walls where there is pencil mark with an electric drill and get the plastic expansion srews inside the hole.(Fig.2)
Step 3 Connect the cable to the lamp through the cable entry openings.(Fig.3)

LED IP44 Waterproof Infrared Sensor Lamp


Step 4 If LED IP44 Waterproof Infrared Sensor Lamp is a wooden wall,there is no need to use plastic expansion,just drive the screw with the screwdriver.(Fig.4a)
            If it is not a wooden wall ,please refer to step 2.(Fig.4b)
LED IP44 Waterproof Infrared Sensor Lamp
Step 5 Fasten the cover to the lamp base which has been installed on the wall.(Fig.5)
Step 6 Open the cover of the control panel downwards, and set the control knobs,and then cover the control panel upwards.(Fig.6)
LED IP44 Waterproof Infrared Sensor Lamp
Setting manner one:potentiometer
LED IP44 Waterproof Infrared Sensor Lamp may take times to adjust values before they satisfy your need.


(1)Time setting

LED IP44 Waterproof Infrared Sensor Lamp
LED IP44 Waterproof Infrared Sensor Lamp can be defined from 8sec±3sec(turn fully anti-clockwise) to 3min±1min(turn fully clockwise). Any movement detected before this time elapses will re-start the timer. It is recommended to select the shortest time for adjusting the detection range and for performing the walk test.


(2)Light-control setting
LED IP44 Waterproof Infrared Sensor Lamp
LED IP44 Waterproof Infrared Sensor Lamp can be defined in the range of 10LUX~sunshine. To turn the knob fully anti-clockwise is about 10 lux,fully clockwise is about sunshine.When adjusting the detection zone and performing the walk test in daylight,you should turn the knob fully clockwise.


NOTE:When the light be auto off,it will take 1 second before the sensor is ready to detect another movement,that is,only signal detected 1 seconds later can the light be auto-on.


LED IP44 Waterproof Infrared Sensor Lamp is mainly for the adjustment of the delay time from the moment the signal detected and light auto-on till the light auto-off. You can define the delay time to your practical need. But you’d better lower the delay time for the sake of energy saving, since the microwave sensor has the function of continuous sensing, that is, any movement detected before the delay time elapses will re-start the timer and the light will keep on only if there is human in the detection range.


Test

▷ After installing, turn the time knob anticlockwise to minimum before electrifying, turn light-control knob to daytime anticlockwise.
▷ The load should work after the first electrifying for 5S, then it stops , make it induct again within 30s, the load should work again.
▷ If all are regular, adjust the time knob to set the light time according to your desire; you can set the working ambient light by adjusting the light-control knob.


Note

1. Electrician and experienced human can install it.
2. The unrest objects can’t be regarded as the installation basis-face.
3. There is no hinder or unrest objects effecting detection in front of the detection window.
4. Avoid installing it near temperature alteration zone, for example, air condition, central heater etc.
5. Please do not open the case for your safety if you find the hitch after installation, you should contact the provider in time.
6. If there are some difference between instruction and the function the product has, please give priority to product and sorry not to inform you additionally.
