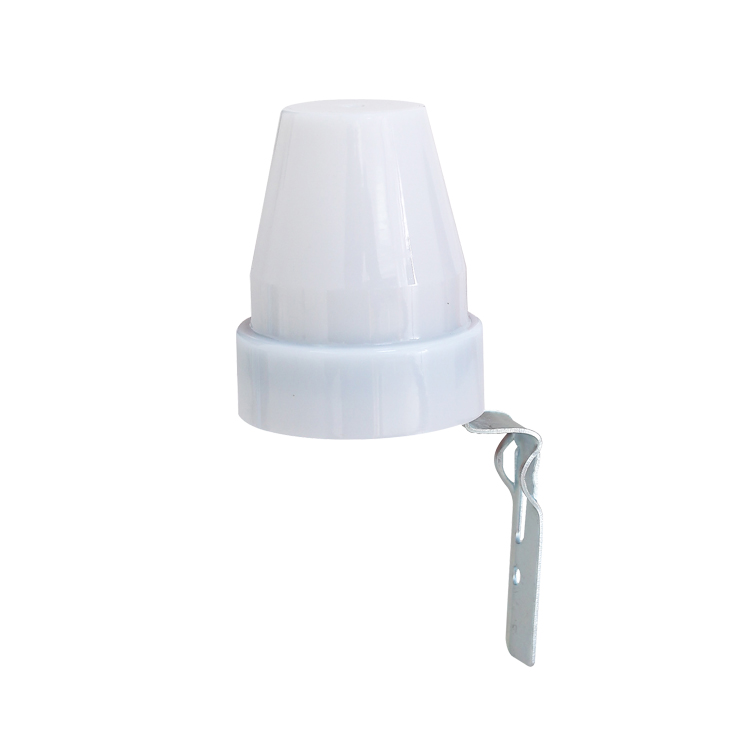

IP54 Outdoor Light Sensor Switch

IP54 outdoor light sensor switch can turn on or turn off light according to ambient-light; Ambient-temperature and humidity can’t affect it. IP54 outdoor light sensor switch is not only convenient but also practical,IP54 outdoor light sensor switch can control the load working only at night. For instance road light, garden light etc.

Model:PD-P02

Send Inquiry

Product Details

Light Control Sensor PD-P01/P02/P03 instruction

IP54 Outdoor Light Sensor Switch

Summary

The product can turn on or turn off light according to ambient-light; Ambient-temperature and humidity can’t affect it. It is not only convenient but also practical, it can control the load working only at night. For instance road light, garden light etc.

Specifications

Power Source	220-240VAC 100-130VAC
Power frequently	50/60Hz
Light-control	8~30LUX(PD-P01) <5~100LUX (only PD-P02 PD-P03)
Rated Current	6A 10A 15A (only PD-P03) 25A (only PD-P03)

Notice
1. In front of the light control switch there should be no obstruction affecting it to accept natural light;
2. In front of the light control switch there should be no swaying object.

Connection-wire diagram
BLACK(BROWN): L
GREEN(BLUE): N
RED : LOAD

Test
1.Use black test bag to cover the sense-light window when testing in the daytime.
2.When cover this black test bag, the load will be on .
3.When take off this black test bag, the load will be off.
4.Take off this black test bag after testing.

Attention
Please do not throw away the black test bag which is used to test the product after installation！

This manual is for the current content programming of this product, there are any changes and modifications to the manufacturer without notice! This instruction, without our permission, should not be copied for any other purposes.
