Electronic Type Photocontrol Sensor Switch
Electronic type photocontrol sensor switch can turn on or turn off light according to ambient-light; Ambient-temperature and humidity can’t affect it. It is not only convenient but also practical, it can control the load working only at night. For instance road light, garden light etc.
Model:PD-P03
Send Inquiry
Product Details
Light Control Sensor PD-P01/P02/P03 instruction
Summary
The product can turn on or turn off light according to ambient-light; Ambient-temperature and humidity can’t affect it. It is not only convenient but also practical, it can control the load working only at night. For instance road light, garden light etc.
Specifications
| Power Source |
220-240VAC 100-130VAC |
| Power frequently | 50/60Hz |
| Light-control |
8~30LUX(PD-P01) <5~100LUX (only PD-P02 PD-P03) |
| Rated Current |
6A 10A 15A (only PD-P03) 25A (only PD-P03) |
Notice
1. In front of the light control switch there should be no obstruction affecting it to accept natural light;
2. In front of the light control switch there should be no swaying object.
Connection-wire diagram
BLACK(BROWN): L
GREEN(BLUE): N
RED : LOAD
BLACK(BROWN): L
GREEN(BLUE): N
RED : LOAD

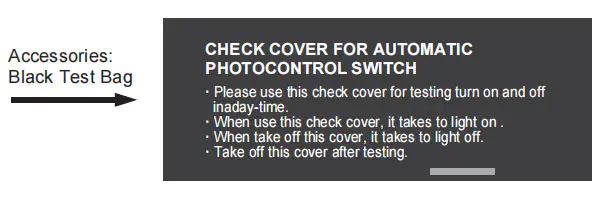

Test
1.Use black test bag to cover the sense-light window when testing in the daytime.
2.When cover this black test bag, the load will be on .
3.When take off this black test bag, the load will be off.
4.Take off this black test bag after testing.
1.Use black test bag to cover the sense-light window when testing in the daytime.
2.When cover this black test bag, the load will be on .
3.When take off this black test bag, the load will be off.
4.Take off this black test bag after testing.
Please do not throw away the black test bag which is used to test the product after installation！
