Automatic Photocell Light Switch

Automatic photocell light switch can turn on and turn off light automatically according to ambient light;Automatic photocell light switch is not affected by ambient temperature and humidity; Automatic photocell light switch is not only convenient but also practical;Automatic photocell light switch can control the load that works at night.

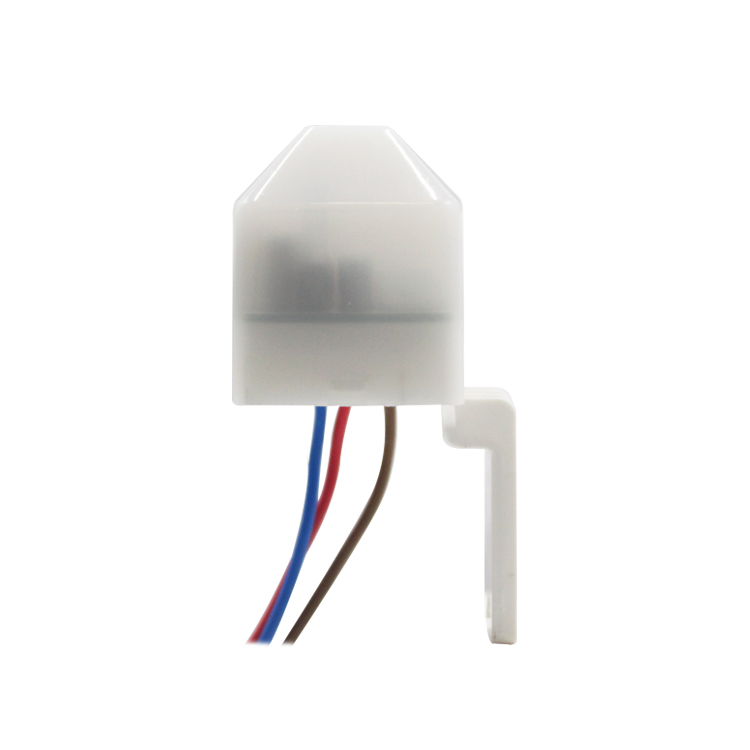

Model:PD-P09

Send Inquiry

Product Details

Light Control Sensor PD-P09 instruction

Summary

The light-control switch can turn on and turn off light automatically according to ambient light; it is not affected by ambient temperature and humidity; It is not only convenient but also practical; it can control the load that works at night.

Specifications

Power Source: 220-240VAC
Power frequently: 50Hz
Rated Current: 6A(pure resistance load)
Light-control: Load on＜10LUX
Load off＞30LUX

Test
1.Use opaque to cover the sense-light window when testing in the daytime.
2.When cover this opaque, the load will be on .
3.When take off this opaque, the load will be off.
4.Take off this opaque after testing.

Notice
1.In front of the light-control switch there should be no block affecting it to receive natural light;
2.In front of the light-control switch there should be no swaying object;
3.Avoid installing the unit below light.

Connection-wire diagram
Connect blue and brown with power
Connect blue and red with load
